Rings / Axially Assembled Tapered Section Retaining Rings / Circlips / MSH

Images

Product Image

CAD

Part Data

  • Housing or Shaft Shaft
  • Axial or Radial Axial
  • Shaft Diameter Ds 0.354 inches
  • Ds mm 9.000 mm
  • Groove Diameter Dg 8.350 - 8.450 - mm
  • Groove Width W 0.700 - 0.850 - mm
  • Groove Depth D 0.280 mm
  • Free Diameter Df 8.000 - 8.200 - mm
  • Thickness T *** 0.540 - 0.660 - mm

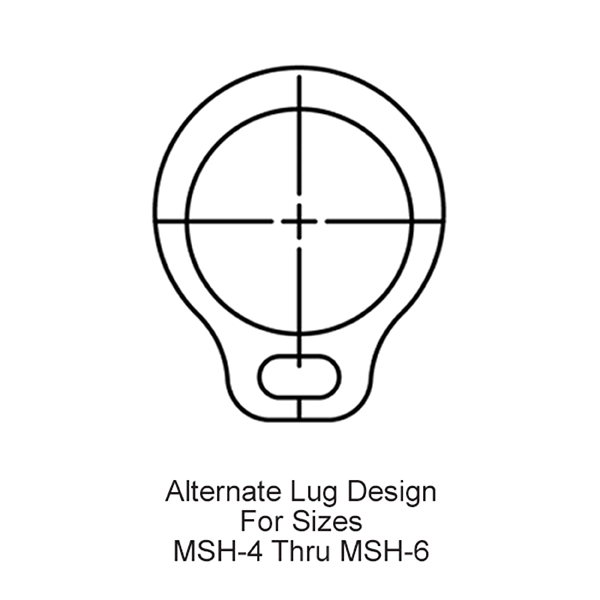

  • Lug Height H 2.200 mm
  • Maximum Section S Max 1.150 mm
  • Minimum Section S Min 0.750 mm
  • Hole Diameter R 1.000 mm
  • Weight Per 1000 Pcs. 0.150 kg

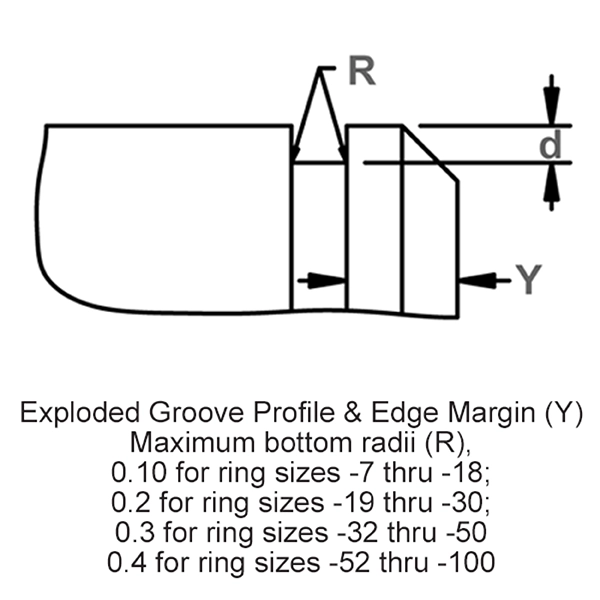

  • Edge Margin Y Min. 0.800 mm
  • Clearance Dia. Expanded Over Shaft L1 14.500 mm

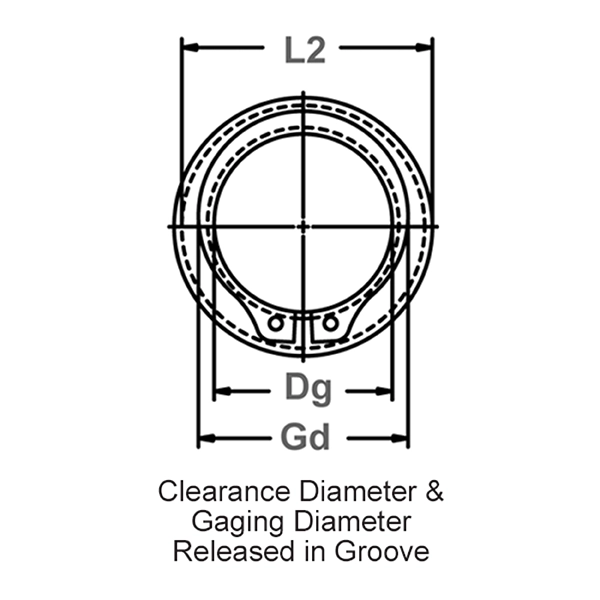

  • Clearance Dia. Released In Groove L2 13.800 mm
  • Gaging Dia. Gd Max 10.350 mm
  • Hardness ST 69.500 - 73.000 - HR30N
  • Hardness SS 63.000 - 69.500 - HR30N
  • Interchange Waldes Truarc 11-100 0090
  • Interchange IRR
  • Interchange Anderton
  • Interchange Mil Or Aero
  • Interchange Din

Performance Data

  • Thrust Ld. (lbs.) Ring Safety Factor Of 4 Pr 3.500 kN
  • Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg 1.200 kN
  • R.P.M. Limits Standard Material RPM 48,000

Tool Data

  • Standard Pliers (Straight) RP-200
  • 45 Standard Pliers RP-204
  • 90 Standard Pliers RP-209
  • Convertible Pliers RP-120
  • 45 Convertible Pliers RP-124
  • 90 Convertible Pliers RP-129
  • Heavy Duty Pliers (Straight) RPN-A0
  • 90 Heavy Duty Pliers RPN-A01

Materials

  • Carbon Steel (SAE 1060-1090)
  • Stainless Steel (PH15-7 Mo, PH17-7)
  • Beryllium Copper
  • Special Material Grades

Finishes

***For plated rings, add .002" (.05 mm) to the listed maximum thickness.

  • PA - Phosphate, Carbon Steel
  • PD - Phosphate and Oil, Carbon Steel
  • PAL - Phosphate with Sealer, Carbon Steel
  • HPD - Heavy Phosphate and Oil, Carbon Steel
  • ZD - Zinc Plating, Carbon Steel
  • ZF - Zinc Bright, Carbon Steel
  • ZDL - Zinc Dichromate with Sealer, Carbon Steel
  • HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
  • Z3X - Trivalent Chromate over Zinc, Carbon Steel
  • ZFF - Zinc Flash, Carbon Steel
  • CF - Copper Flash, Carbon Steel

Description

Axially Assembled, External, ANSI Metric. Once installed in the groove of a shaft, the portion of the ring protruding from the groove (also called a shoulder) holds an assembly in place.

Custom solutions

Can’t find what you’re looking for in an existing product, need a modified version of one of our standard parts, or simply aren’t sure what part you need?

Submit your custom specifications

Need help? Contact our Engineering team

Notes

CAD Models are provided for informational purposes only and may not represent the final part you receive.  Manufacturer assumes no responsibility for any such inconsistencies , and disclaims any liability to any party for any loss, damage, or disruption which may arise therefrom. Always contact Manufacturer for final measurements when specified in your design.
