Springs / Wave Springs / SRT

SRT-500

Print this page

Images

Product Image

CAD

Part Data

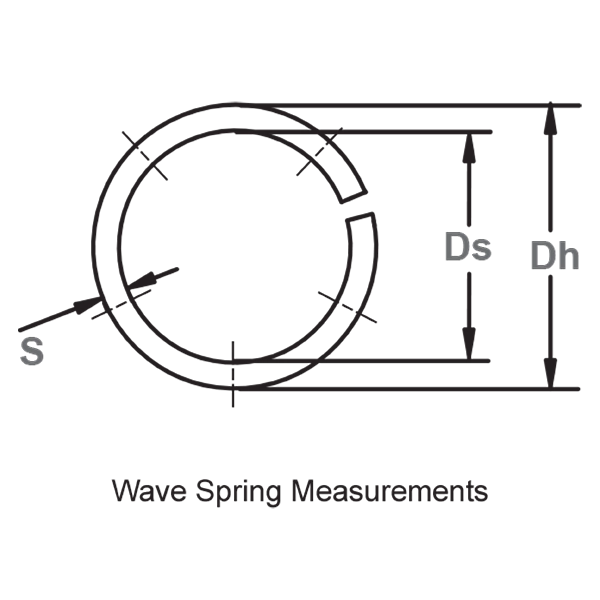

  • Operates In Housing Diameter Dh 5.000 inches
  • Shaft Diameter Clearance Ds 4.672 inches
  • Section S 0.116 inches
  • Free Height Fh 0.265 inches
  • Number Of Waves 5.0
  • Number Of Turns 1

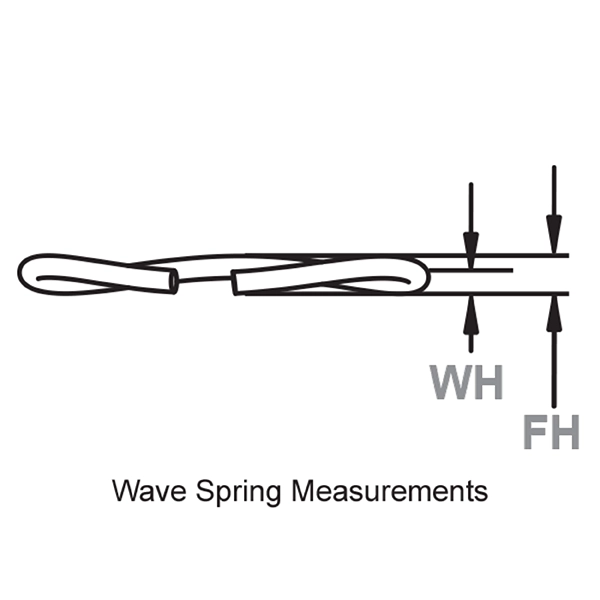

  • Work Height WH 0.195 inches
  • Spring Rate (Ref) 5571 lb/in

Performance Data

  • Load 390 lbs.

Materials

  • Carbon Steel (SAE 1060-1090)
  • Beryllium Copper
  • Special Material Grades
  • Stainless Steel AISI 302
  • Stainless Steel AISI 316
  • Phosphor Bronze
  • Stainless Steel (17-7 PH/C)

Finishes

For plated rings, add .002" (.05 mm) to the listed maximum thickness.

  • OIL - Oil over Steel, Carbon Steel
  • SPP - Passivate, Stainless Steel
  • Vapor Degreased & Ultrasonic (Stainless Finish), Stainless Steel

Documentation

Description

Snap Ring, External, Metric. For Grooves in Outer Tracks of Ball or Roller Bearings. Once installed in the groove of a shaft, the portion of the ring protruding from the groove holds an assembly in place.
