SR-180
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial

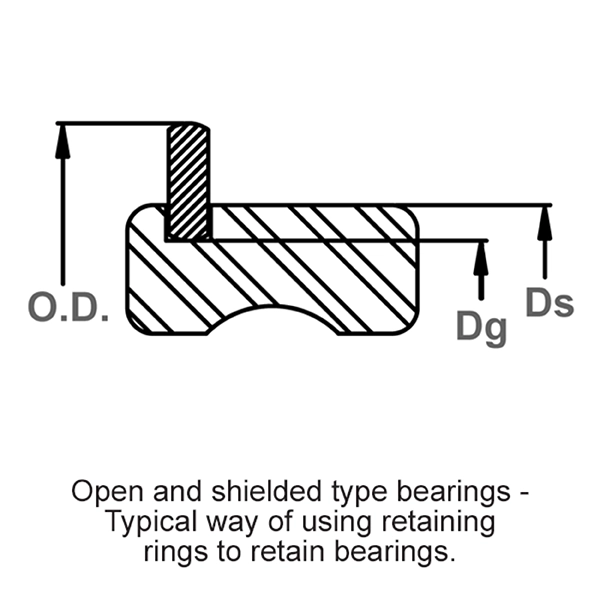

- Shaft Diameter Ds 7.087 inches
- Ds mm 180.000 mm
- Groove Diameter Dg 6.834 - 6.840 - inches
- Free Diameter Df 6.714 - 6.807 - inches
- Gap A 0.313 - 0.438 - inches
- Outside Diameter O.D. 7.594 inches
- Section S 0.378 - 0.372 - inches
- Thickness T 0.118 - 0.122 - inches
- Radius Max. R 0.090 inches
- Weight Per 1000 Pcs. 284.400 lbs.
- Hardness ST 40.000 - 50.000 - HRC
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| SR-180ST PD | Metric External/Shaft Constant Section | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
- OIL - Oil over Steel, Carbon Steel
Documentation
Description

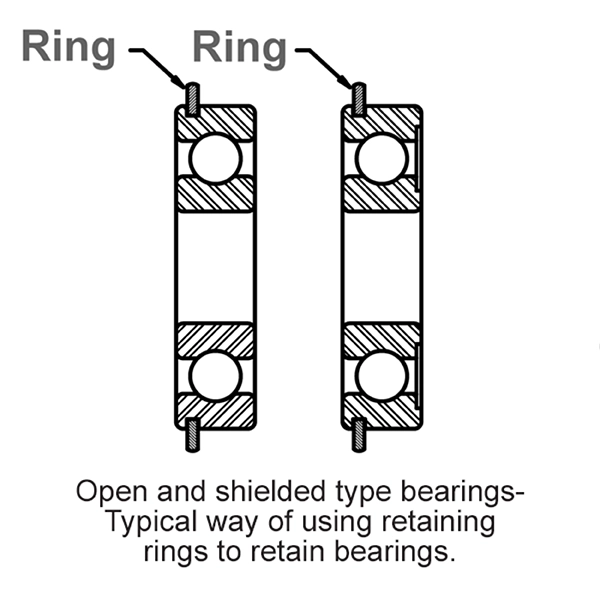

SR retaining rings are external metric snap rings and are part of Rotor Clip’s constant section retaining ring family. Specifically designed for grooves in the outer tracks of ball or roller bearings, these rings provide a shoulder to hold an assembly in place once installed in the groove of a shaft.
