RG-12
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Radial
- Shaft Diameter Ds 0.123 - 0.127 - inches
- Ds mm 3.200 mm
- Free Diameter Df 0.116 - 0.121 - inches
- Thickness T *** 0.023 - 0.027 - inches
- Large Sect. S 0.054 inches
- Notch Dia. R 0.040 inches
- Weight Per 1000 Pcs. 0.190 lbs.

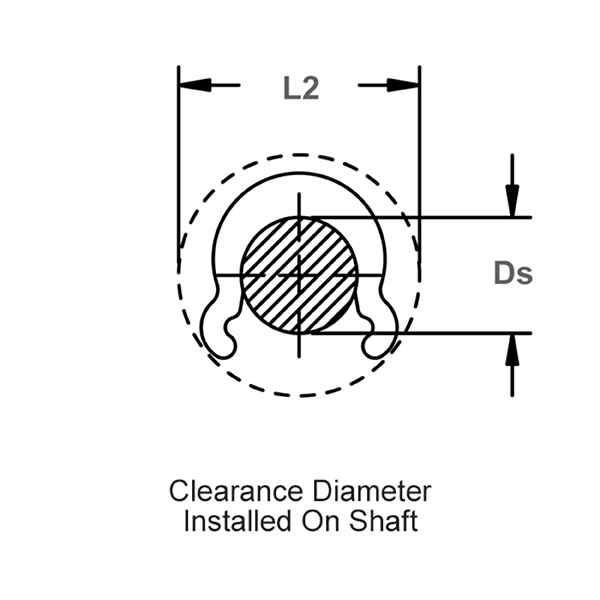

- Clearance Dia. Installed On Shaft L2 0.340 inches
- Hardness ST 65.800 - 70.200 - HR30N
- Interchange Waldes Truarc 5135 12
- Interchange IRR
- Interchange Anderton
- Interchange Mil Or Aero
- Interchange Din
Performance Data
- Allowable Thrust Load Pr 10.000 lbs.
- R.P.M. Limits Standard Material RPM
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Beryllium Copper
- Special Material Grades
- Stainless Steel (PH15-7 Mo, PH17-7)
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
- ZD - Zinc Dichromate, Carbon Steel
Documentation
Description
RG retaining rings are external self-locking radial grip circlips. The RG makes indentations on either side of the shaft once installed to significantly increase holding power and can be installed directly against the face of the retained part to eliminate end-play on soft shafts.
