Rings / Spiral Retaining Rings / MKA

MKA-85

Print this page

Images

Product Image

CAD

Part Data

  • Housing or Shaft Housing
  • Axial or Radial Axial

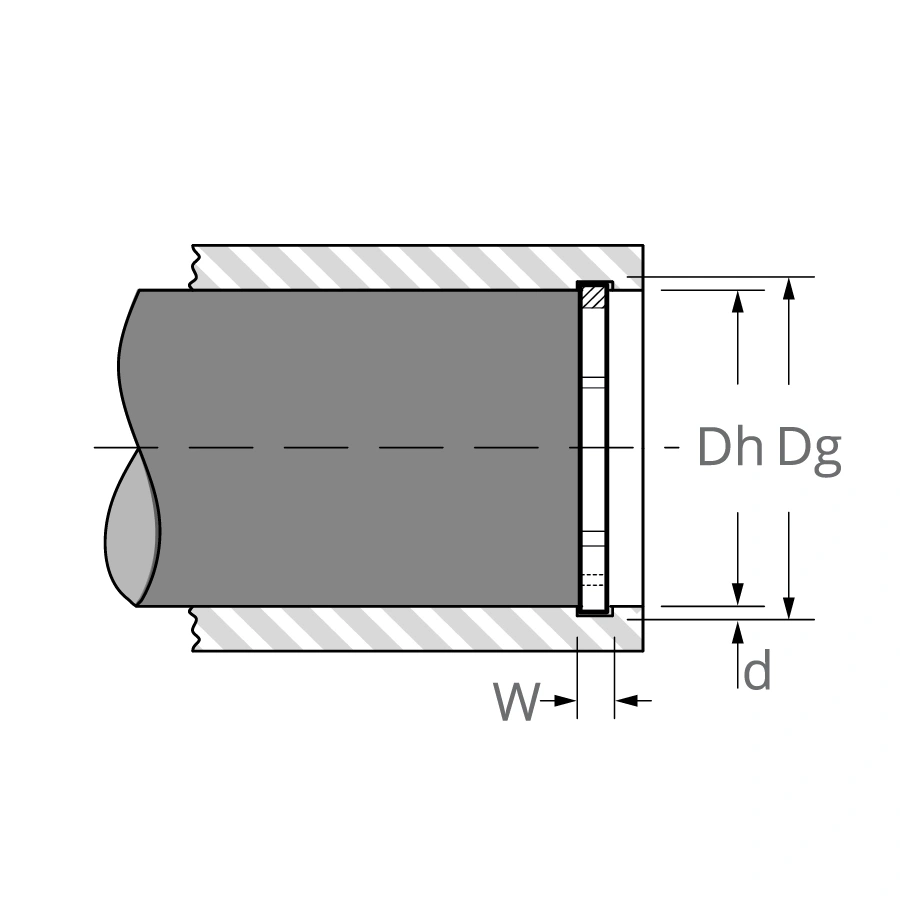

  • Dh mm 85.000 mm
  • Groove Diameter Dg 87.500 - 87.800 - mm
  • Groove Width W 1.730 - 1.860 - mm

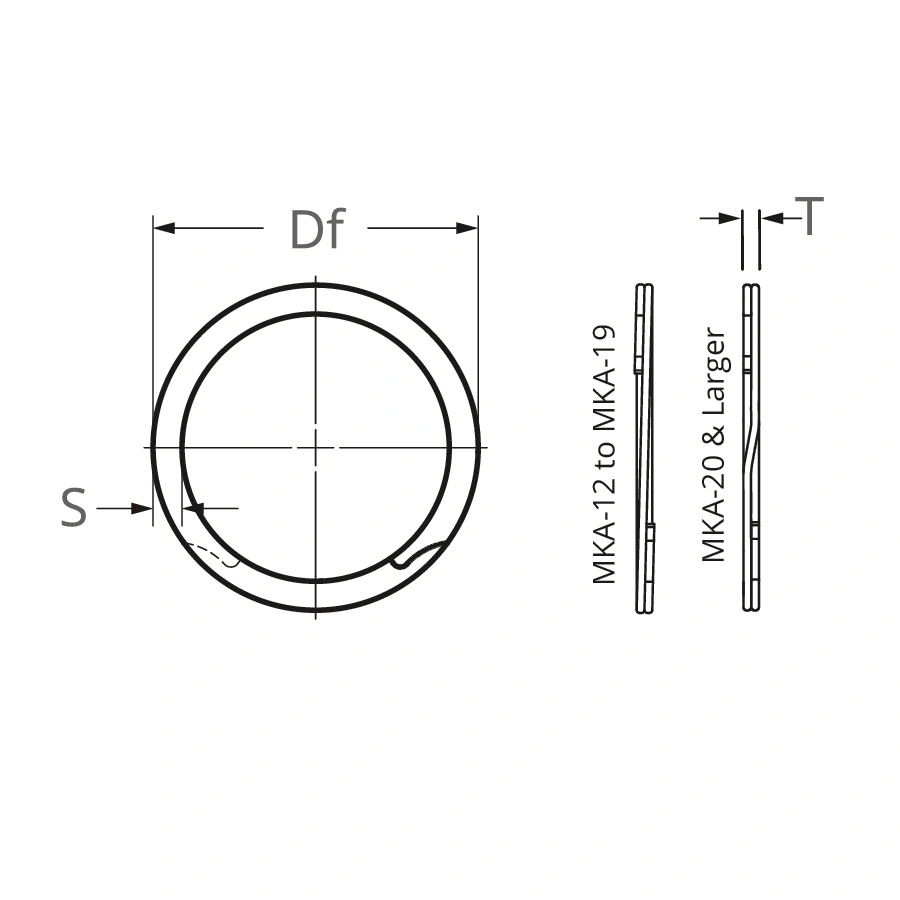

  • Free Diameter Df 88.380 - 89.140 - mm
  • Section S 4.600 - 4.900 - mm
  • Thickness T 1.500 - 1.600 - mm
  • Interchange Mil Or Aero

Performance Data

  • Thrust Load Ring Safety Factor Of 3 Pr 119,780.000 N
  • Thrust Load Groove Safety Factor Of 2 Pg 55,060.000 N

Materials

  • Carbon Steel (SAE 1060-1090)
  • Special Material Grades
  • Stainless Steel AISI 302
  • Stainless Steel AISI 316

Finishes

***For plated rings, add .002" (.05 mm) to the listed maximum thickness.

  • OIL - Oil over Steel, Carbon Steel

Documentation

Description

Internal, Aerospace, Metric. Dimensions Conform to Metric Aerospace Specification MA 4017*.
