ME-4
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Radial
- Shaft Diameter Ds 0.157 inches
- Ds mm 4.000 mm
- Groove Diameter Dg 3.020 - 3.100 - mm
- Groove Width W 0.700 - 0.850 - mm
- Groove Depth D 0.450 mm
- Free Diameter Df 2.820 - 2.930 - mm
- Thickness T *** 0.540 - 0.660 - mm
- Outside Diameter G 7.200 mm
- Clearance Dia. Installed In Groove L2 7.600 mm
- Weight Per 1000 Pcs. 0.100 kg

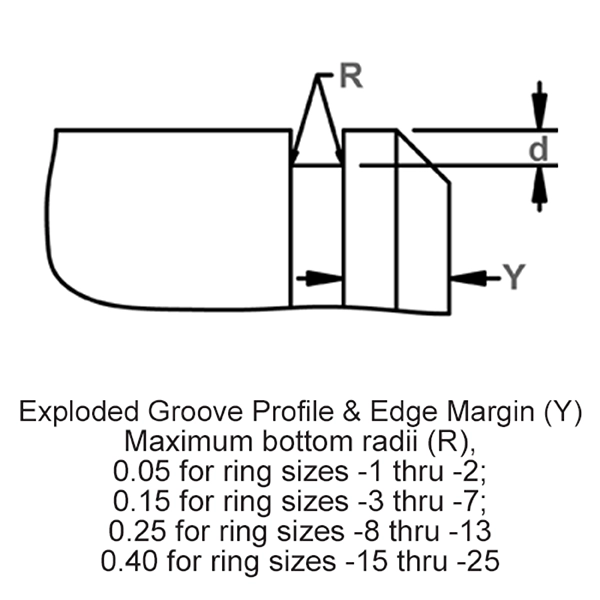

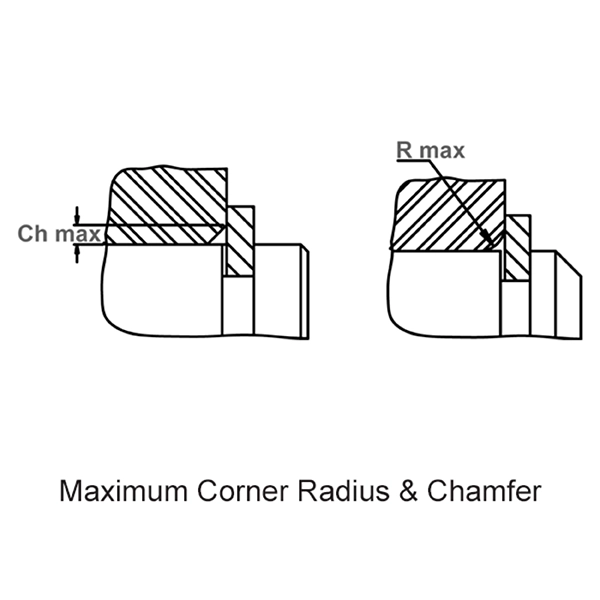

- Edge Margin Y Min. mm
- Hardness ST 67.500 - 71.000 - HR30N
- Hardness SS 63.000 - 69.500 - HR30N
- Hardness BC 56.500 - 68.000 - HR30N
- Interchange Waldes Truarc 11-420 0040
- Interchange IRR
- Interchange Anderton
- Interchange Mil Or Aero
- Interchange Din
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 0.700 kN
- Thrust Load Groove Safety Factor Of 2 Pg 0.300 kN
- R.P.M. Limits Standard Material RPM 31,000.000
Tool Data
- Standard Applicator (Flat) A-100
- 45 Applicator A-104
- 90 Applicator A-109
- Offset Applicator A-107
- Heavy Duty Dispenser D-250
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| ME-4BC | Metric Radially Assembled External/Shaft | Beryllium Copper Alloy 25 | None/Self Finish | Quote |
| ME-4SS | Metric Radially Assembled External/Shaft | PH 15-7 Stainless Steel | None/Self Finish | Quote |
| ME-4ST PD | Metric Radially Assembled External/Shaft | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| ME-4ST Z3X | Metric Radially Assembled External/Shaft | Carbon Steel SAE 1070-1090 | Trivalent Zinc | Quote |
| ME-4ST ZD | Metric Radially Assembled External/Shaft | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| ME-4ST ZF | Metric Radially Assembled External/Shaft | Carbon Steel SAE 1070-1090 | Zinc Flash | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description
ME retaining rings are radially assembled external ANSI metric circlips and are part of Rotor Clip’s radial retaining ring line. Named for their characteristic shape that resembles the letter E, these rings utilize three prongs to make contact with the bottom of the groove and provide a shoulder for the effective radial retention in assemblies.
