- Housing or Shaft Housing
- Axial or Radial Axial

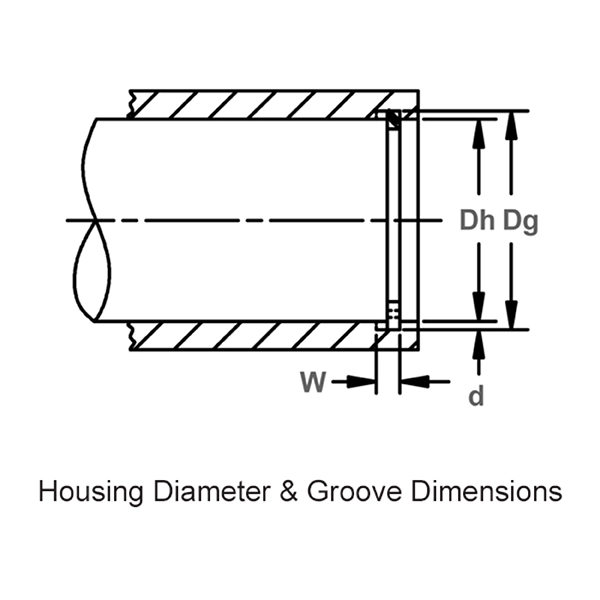

- Housing Dia. Dh 2.312 inches
- Groove Diameter Dg 2.3820 - 2.3940 inches
- Groove Width W 0.039 - 0.042 inches
- Free Diameter Df 2.415 - 2.440 inches
- Section S 0.154 - 0.162 inches
- Thickness T 0.0290 - 0.0330 inches
- Thrust Load Ring Safety Factor Of 3 Pr 9460 lbs.
- Thrust Load Groove Safety Factor Of 2 Pg 6210 lbs.
- Carbon Steel (SAE 1060-1090)
- Beryllium Copper
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Internal, Light Duty These single-turn snap rings are ideal for light duty applications.
