Part Data
- Housing or Shaft Shaft
- Axial or Radial Radial

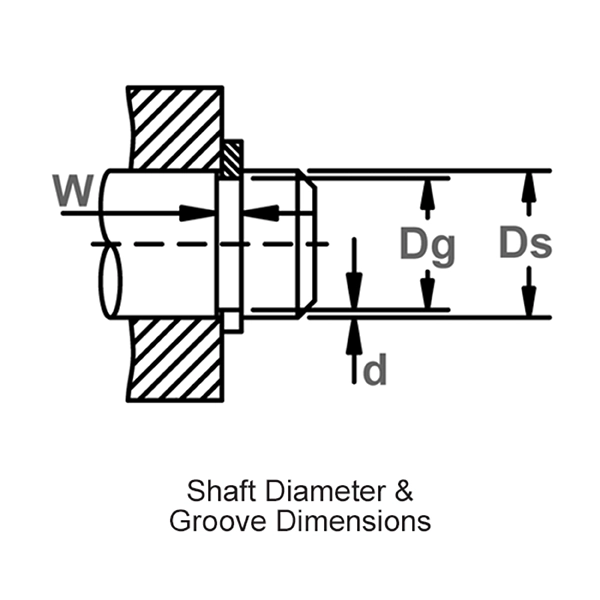

- Ds mm 3.000 - 4.000 - mm
- Groove Diameter Dg 2.240 - 2.300 - mm
- Nom Size Dg 2.300 mm
- Groove Width W 0.640 - 0.690 - mm
- Thickness T *** 0.580 - 0.600 - mm
- Gap A 1.900 - 2.000 - mm
- Outside Diameter G 5.900 mm
- Clearance Dia. Installed In Groove L2 6.300 mm
- Weight Per 1000 Pcs. 0.100 kg
- Edge Margin Y Min. 1.000 mm
- Allowable Radius / Chamfer R/Ch Max, 0.900 mm
- Hardness ST 65.000 - 72.000 - HR30N
- Hardness SS 63.000 - 69.500 - HR30N
- Hardness SG 66.000 - 72.000 - HR30N
- Hardness BC 56.500 - 62.000 - HR30N
- Interchange Waldes Truarc
- Interchange IRR
- Interchange Anderton D1500 0023
- Interchange Mil Or Aero
- Interchange Din DIN 6799 2.3x0.60
- Interchange Seeger-Orbis RA 2.3
Performance Data
- Thrust Load Ring Pr 0.500 kN
- Pg With Shaft Size Ds 3.000 mm
- Thrust Load Groove Pg 0.150 kN
- R.P.M. Limits Standard Material RPM 38,000.000
- Max. Load W/ R Max Or Ch Max PR 0.240 kN
Tool Data
- Standard Applicator (Flat) A-723
- 45 Applicator A-7234
- 90 Applicator A-7239
- Offset Applicator A-7237
- Rod-Stacked Applicator A-723N
- 45 Rod-Stacked Applicator A-723N4
- 90 Rod-Stacked Applicator A-723N9
- Offset Rod-Stacked Applicator A-723N7
- Heavy Duty Dispenser D-723
- Spring Rail Dispenser SD-723
- Rod-Stacked Dispenser RD-723
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
- Stainless Steel DIN 1.4122
- Phosphor Bronze
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description
Radially Assembled, External E, Metric. Perhaps the most popular and widely used radial retaining ring is the E (so named because it is shaped like the letter E). Three prongs make contact with the bottom of the groove and provide a shoulder for effective retention of assemblies.
