Rings / Constant Section Retaining Rings / Snap Rings / CFH

CFH-230

Print this page

Images

Product Image

CAD

Part Data

  • Housing or Shaft Housing
  • Axial or Radial Axial

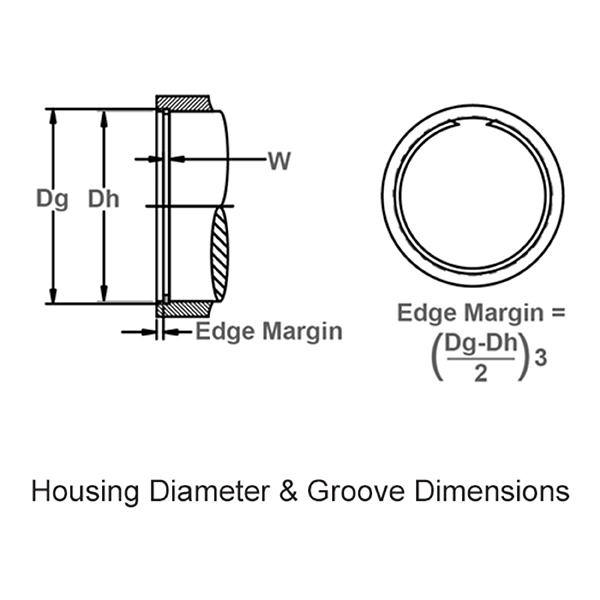

  • Housing Dia. Dh 9.100
  • Dh mm 230.000
  • Groove Diameter Dg 233.000 - 233.290 -
  • Groove Width W

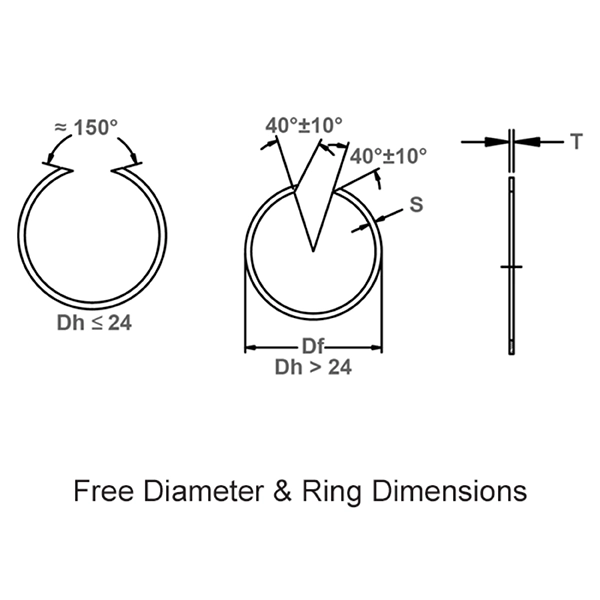

  • Free Diameter Df 235.300 - 238.300 -
  • Section S 4.900 - 5.000 -
  • Thickness T 2.900 - 3.000 -
  • Weight Per 1000 Pcs. 75.200 kg
  • Edge Margin Y Min.
  • Hardness ST 3.000 - 4.900 -
  • Interchange Seeger-Orbis SB 230

Performance Data

  • Thrust Load Ring Pr 52.000 kN
  • Thrust Load Groove Pg 181.000 kN

Materials

  • Carbon Steel (SAE 1060-1090)
  • Stainless Steel AISI 302
  • Stainless Steel AISI 316

Finishes

***For plated rings, add .002" (.05 mm) to the listed maximum thickness.

  • OIL - Oil over Steel, Carbon Steel

Documentation

Description

Snap Ring, Internal, Metric Flat Wire. Once installed in the groove of a housing/bore, the portion of the ring protruding from the groove holds an assembly in place.

Request QuoteRequest Samples

Custom solutions

Can’t find what you’re looking for in an existing product, need a modified version of one of our standard parts, or simply aren’t sure what part you need?

Submit your custom specifications

Need help? Contact our Engineering team

Notes

CAD Models are provided for informational purposes only and may not represent the final part you receive.  Manufacturer assumes no responsibility for any such inconsistencies , and disclaims any liability to any party for any loss, damage, or disruption which may arise therefrom. Always contact Manufacturer for final measurements when specified in your design.
