BE-75
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Radial

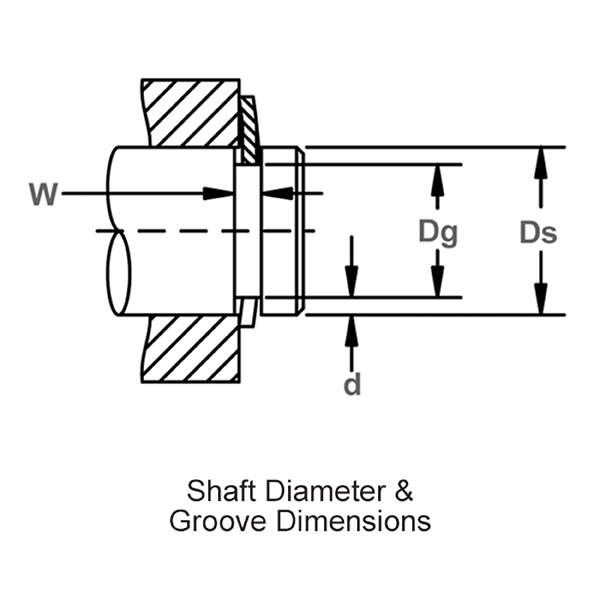

- Shaft Diameter Ds 0.750 inches
- Ds mm 19.000 mm
- Groove Diameter Dg 0.580 - 0.583 - inches
- Groove Width W 0.085 - 0.088 - inches
- Groove Depth D 0.085 inches

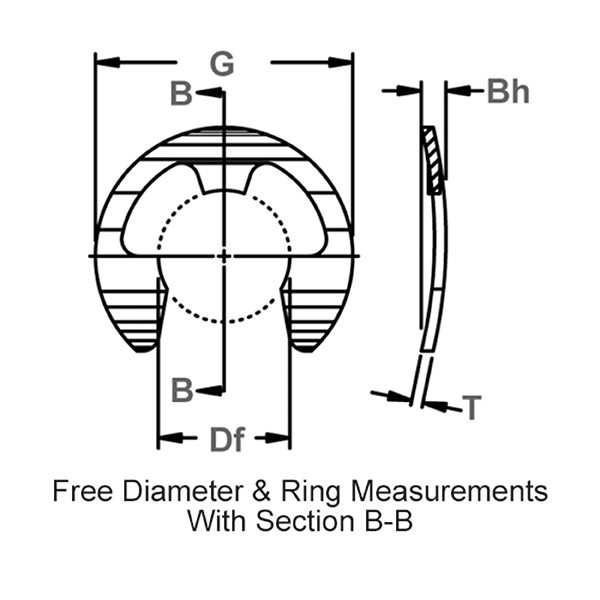

- Free Diameter Df 0.569 - 0.577 - inches
- Thickness T *** 0.048 - 0.052 - inches
- Bow Height Bh 0.090 - 0.110 - inches
- Outside Diameter G 1.120 inches
- Clearance Dia. Installed In Groove L2 1.140 inches
- Weight Per 1000 Pcs. 5.800 lbs.
- Edge Margin Y Min. 0.170 inches

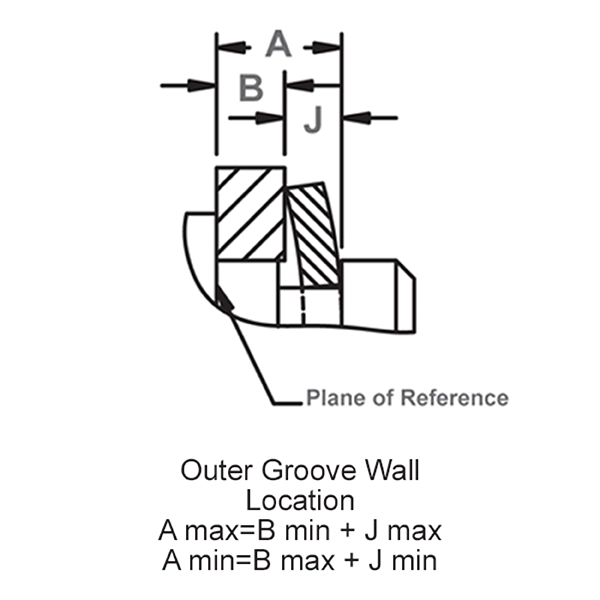

- Outer Groove Wall To Face Of Retained Part J Max 0.085 inches
- Outer Groove Wall To Face Of Retained Part J Min 0.069 inches
- Hardness ST 47.000 - 52.000 - HRC
- Hardness SS 44.000 - 51.000 - HRC
- Hardness BC 34.000 - 43.000 - HRC
- Interchange Waldes Truarc 5131 75
- Interchange IRR 1001 75
- Interchange Anderton N1504 0075
- Interchange Mil Or Aero MS16634C 75
- Interchange Din
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 2,030 lbs.
- Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg 1,500 lbs.
- R.P.M. Limits Standard Material RPM 10,500.000
- Resilient Take-Up Of Tolerances A & B 0.016 inches
- Force Needed To Flatten Rings 110.000 lbs.
Tool Data
- End-Play Ring Applicator A-567
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| BE-75ST PD | Bowed Radially Assembled External/Shaft | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| BE-75ST Z3X | Bowed Radially Assembled External/Shaft | Carbon Steel SAE 1070-1090 | Trivalent Zinc | Quote |
| BE-75ST ZD | Bowed Radially Assembled External/Shaft | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| BE-75ST ZF | Bowed Radially Assembled External/Shaft | Carbon Steel SAE 1070-1090 | Zinc Flash | Quote |
| BE-75ST MCD | Bowed Radially Assembled External/Shaft MS16634-1075 | Carbon Steel SAE 1070-1090 | Military CAD Plating | Quote |
| BE-75ST MPD | Bowed Radially Assembled External/Shaft MS16634-3075 | Carbon Steel SAE 1070-1090 | Military Phosphate and Oil | Quote |
| BE-75ST MZD | Bowed Radially Assembled External/Shaft MS16634-2075 | Carbon Steel SAE 1070-1090 | Military Zinc Dichromate | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description
BE retaining rings are radially assembled external bowed E-clips and are part of Rotor Clip’s radial retaining ring family. Designed to compensate for accumulated tolerances on a shaft, the BE ring exerts a force or a preload on the retained parts for the specified range once snapped into the groove.
