Harnessing the Versatility of Spiral Retaining Rings

Harnessing the Versatility of Spiral Retaining Rings

Discover the incredible versatility of spiral retaining rings as we explore their essential role in various industries. Whether you require standard or custom spiral rings in materials like 302 and 316 stainless steels, Inconel, or Elgiloy, these rings are meticulously designed to meet your unique needs. This blog will delve into the extensive advantages of spiral retaining rings, showcasing how they can enhance your engineering and manufacturing projects.

When choosing the right ring for your application, understanding your options is crucial. Rotor Clip, the only manufacturer of every retaining ring style, is here to guide you. Whether it’s a tapered section ring, constant section ring, or a spiral retaining ring, we’ve got the expertise to help you find the perfect solution.

Unique Characteristics of Spiral Retaining Rings:

It is beneficial to learn the unique characteristics of spiral rings design and practical considerations, and weigh those against the thrust load capacity needed for your application. So, let’s unravel the reasons behind their widespread adoption and popularity across industries from aerospace, medical, automotive, and beyond.

Coiled Structure:

The unique coiled design of a spiral ring ensures even load distribution, eliminating stress concentration points and enhancing resistance to higher loads and vibrations without compromising performance. Unlike other types of retaining rings, these feature a lug free design – meaning they can also be space saving in an assembly by not interfering with the mating components. In multiple-turn (2+) configurations, spiral rings offer a 360° retaining surface.

Versatile and Adjustable:

Spiral retaining rings can be coiled to nearly any dimension or number of turns, making them highly adaptable to various assembly requirements. Being coiled means we can also be flexible on sizing from small to large diameters. And, if you need even more functionality or suitability for your applications ask about locking and balanced features.

Unmatched Ease of Installation and Removal:

Spiral rings are simple to install and remove, requiring no tools for assembly. They can either be effortlessly twisted into grooves using just your hands or through simple automation, spiral rings can be assembled on production lines. The smooth edges on a spiral retaining ring minimize scratching of your assembly and make the rings easy to handle. No additional tools or equipment are needed, saving both time and effort during the assembly process. Additionally, when it comes to removal, a screwdriver is all it takes to easily extract the ring utilizing the removal notch on the ring, simplifying maintenance and repair tasks.

Cost-Efficiency and Waste Reduction:

The adaptability and customization options of spiral rings can contribute to cost savings as they eliminate the need for expensive tooling and production processes. The coiling process also produces minimal to no scrap, further optimizing manufacturing and assembly efficiency while addressing environmental and sustainability concerns.

Standard or Custom Spiral Rings:

The beauty of spiral retaining rings lies in their remarkable customizability. At Rotor Clip, we understand that one size doesn’t fit all. Choose between standard or custom spiral rings, ensuring you find the perfect solution tailored to your exact requirements. Our standard spiral rings meet industry standards and offer cost-effective solutions, while our custom spiral rings are engineered precisely to your specifications. These include material selection, ring size and dimensions like diameter, ring thickness, radial wall, end configuration and more. Other customizable features may include special coatings or surface treatments to enhance corrosion resistance or reduce friction.

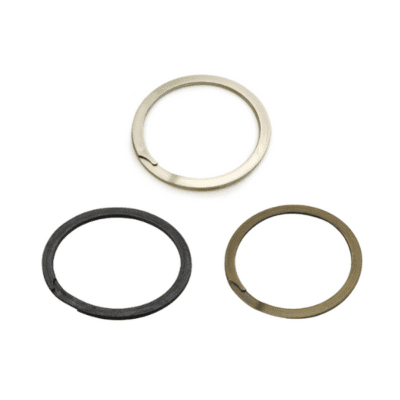

Materials for Every Environment

Rotor Clip’s spiral retaining rings offer a diverse range of material choices, from standard carbon steel to stainless steel, and exotic alloys, providing flexibility for various application requirements.
Prioritize corrosion resistance with the reliability of 302 and 316 stainless steel spiral retaining rings, ideal for medical, saltwater, and aerospace environments. In demanding environments requiring high-temperature and corrosion resistance, materials like Inconel and Elgiloy excel. Spiral rings crafted from these materials ensure unparalleled performance and reliability, even in the most severe conditions. Choose the material that aligns with your project’s demands and experience the resilience and longevity proudly offered by Rotor Clip.

Spiral retaining rings have become indispensable components across various industries, offering a multitude of benefits like even load distribution, high load and vibration resistance, adaptability to diverse assembly requirements, ease of installation and removal, cost-effectiveness, and customized options.

Don’t overlook the advantages of spiral retaining rings – they have the potential to revolutionize your applications, saving both time and resources while ensuring long-lasting reliability. Let our experts at Rotor Clip help you find the best solution for your application.

View our range of spiral rings online at rotorclip.com. For questions, quotes, or free samples for testing, contact our engineering team at (732)- 469- 7333 or info@rotorclip.com.
