SHF-25
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial
- Shaft Diameter Ds 0.248 - 0.252 - inches
- Ds mm 6.300 mm
- Groove Diameter Dg 0.239 - 0.241 - inches
- Groove Width W 0.041 - 0.044 - inches
- Groove Depth D 0.005 inches
- Free Diameter Df 0.234 - 0.240 - inches
- Thickness T *** 0.032 - 0.038 - inches
- Lug Height H 0.094 - 0.100 - inches
- Hole Diameter R 0.049 - 0.061 - inches
- Ring Height B 0.437 inches
- Weight Per 1000 Pcs. 0.740 lbs.
- Edge Margin Y Min. 0.030 inches

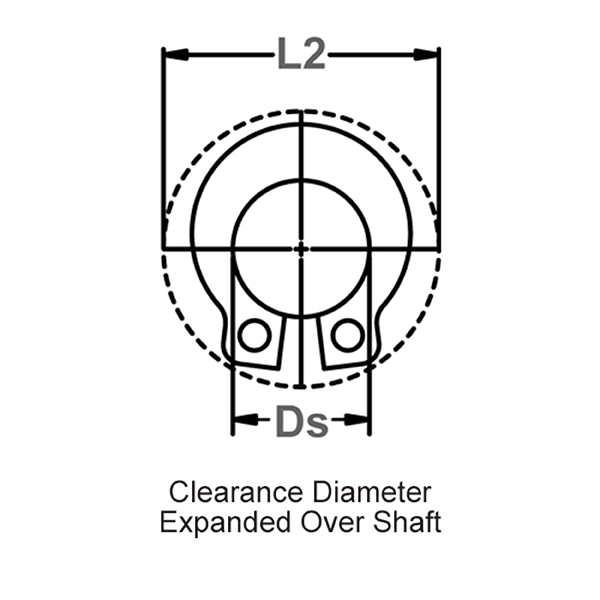

- Clearance Released Over Shaft L2 0.490 inches
- Hardness ST 46.000 - 51.000 - HRC
- Hardness SS 44.000 - 51.000 - HRC
- Hardness BC 34.000 - 43.000 - HRC
- Interchange Waldes Truarc 5555 25
- Interchange IRR 7100 25
- Interchange Anderton N1440 0025
- Interchange Mil Or Aero MS90707C 25
- Interchange Din
Performance Data
- Allowable Thrust Load Pr 23.000 lbs.
- Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg 90 lbs.
- R.P.M. Limits Standard Material RPM 77,000.000
Tool Data
- Convertible Pliers RP-120
- 45 Convertible Pliers RP-124
- 90 Convertible Pliers RP-129
- Heavy Duty Pliers (Straight) RPN-G2
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| SHF-25BC | External/Shaft Self Locking | Beryllium Copper Alloy 25 | None/Self Finish | Quote |
| SHF-25BC MTM | External/Shaft Self Locking MS90707-5025 | Beryllium Copper Alloy 25 | Military None/Self Finish | Quote |
| SHF-25SS | External/Shaft Self Locking | PH 15-7 Stainless Steel | None/Self Finish | Quote |
| SHF-25SS MPS | External/Shaft Self Locking MS90707-4025 | PH 15-7 Stainless Steel | Military Passivation | Quote |
| SHF-25ST PD | External/Shaft Self Locking | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| SHF-25ST Z3X | External/Shaft Self Locking | Carbon Steel SAE 1070-1090 | Trivalent Zinc | Quote |
| SHF-25ST ZD | External/Shaft Self Locking | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| SHF-25ST ZF | External/Shaft Self Locking | Carbon Steel SAE 1070-1090 | Zinc Flash | Quote |
| SHF-25ST MCD | External/Shaft Self Locking MS90707-1025 | Carbon Steel SAE 1070-1090 | Military CAD Plating | Quote |
| SHF-25ST MPD | External/Shaft Self Locking MS90707-3025 | Carbon Steel SAE 1070-1090 | Military Phosphate and Oil | Quote |
| SHF-25ST MZD | External/Shaft Self Locking MS90707-2025 | Carbon Steel SAE 1070-1090 | Military Zinc Dichromate | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
- ZD - Zinc Dichromate, Carbon Steel
Documentation
Description
SHF retaining rings are external self-locking friction circlips. While the SHF resembles a regular SH ring, it is designed to function on a shaft without a groove. The design allows the circlip to exert significant gripping power uniformly on the shaft to provide secure axial retention.
