VSH-437
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial
- Shaft Diameter Ds 4.375 inches
- Ds mm 111.100 mm
- Groove Diameter Dg 4.120 - 4.126 - inches
- Groove Width W 0.094 - 0.102 - inches
- Groove Depth D 0.124 inches
- Free Diameter Df 4.076 - 4.136 - inches
- Thickness T *** 0.104 - 0.114 - inches
- Lug Height H 0.334 - 0.350 - inches
- Maximum Section S Max 0.332 - 0.352 - inches
- Minimum Section S Min 0.171 - 0.191 - inches
- Hole Diameter R 0.123 - 0.140 - inches
- Thickness Beveled End U 0.085 - 0.090 - inches
- Weight Per 1000 Pcs. 115.000 lbs.
- Edge Margin Y Min. 0.186 inches

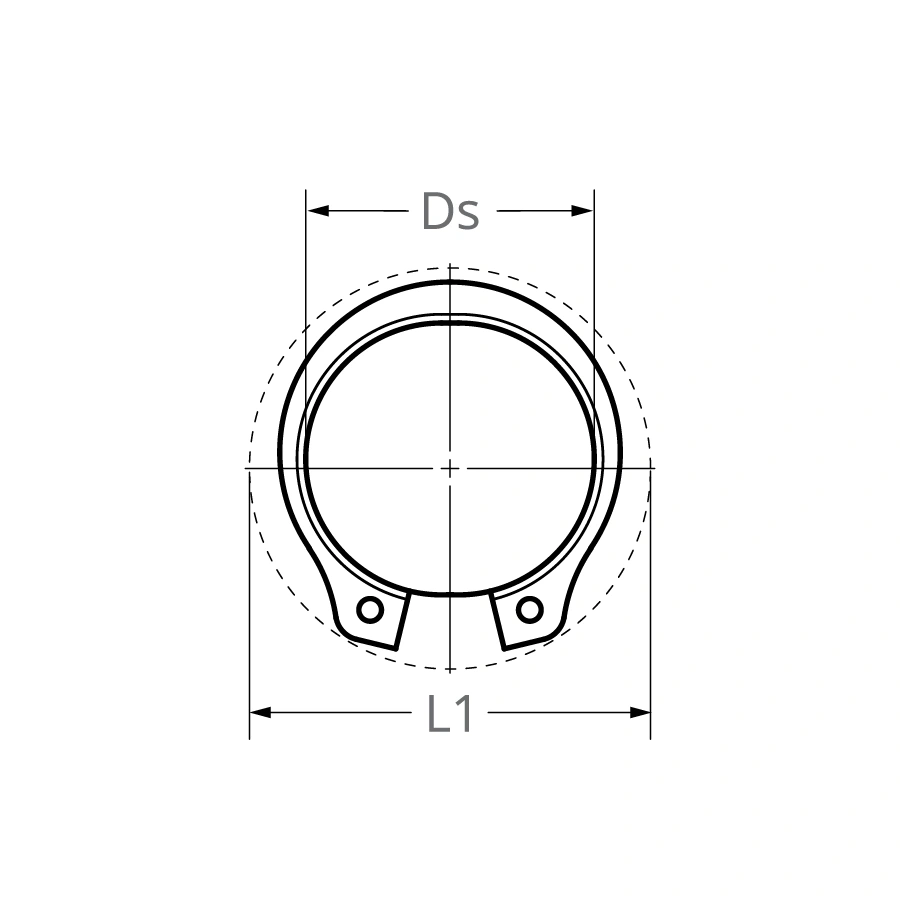

- Clearance Dia. Expanded Over Shaft L1 5.114 inches

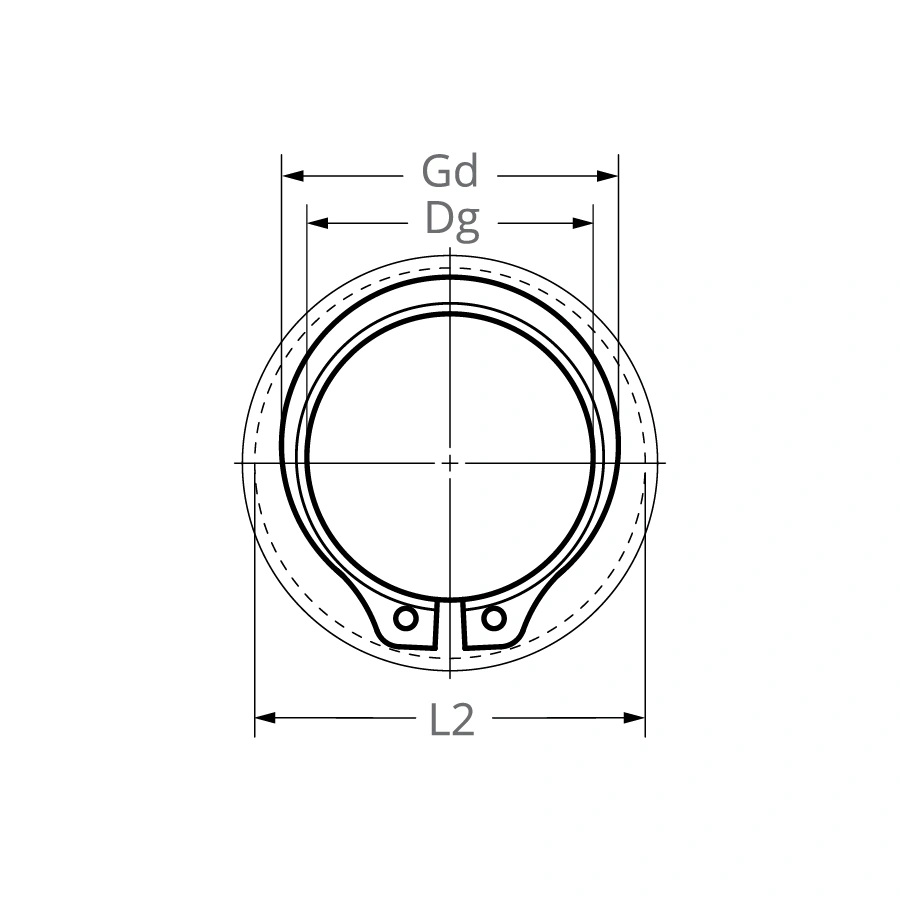

- Clearance Dia. Released In Groove L2 4.994 inches
- Gaging Dia. Gd Max 4.740 inches
- Hardness ST 44.000 - 51.000 - HRC
- Hardness SS 44.000 - 51.000 - HRC
- Hardness BC 37.000 - 43.000 - HRC
- Interchange Waldes Truarc 5102 437
- Interchange IRR
- Interchange Anderton N1402 0437
- Interchange Mil Or Aero MS16630C 437
- Interchange Din
Performance Data
- Thrust Ld. (lbs.) Ring Safety Factor Of 4 Pr 57,043 lbs.
- Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg 19,000 lbs.
- Rigid End Play Take-Up 0.017 inches
Tool Data
- Ratchet Pliers (w/o Tips) RP-1000
- Straight Ratchet Pliers Tips RP-7801R
- 45 Ratchet Pliers Tips RP-7845R
- 90 Ratchet Pliers Tips RP-7890R
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| VSH-437ST PD | External/Shaft Beveled | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| VSH-437ST ZD | External/Shaft Beveled | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| VSH-437ST MCD | External/Shaft Beveled MS16630-1437 | Carbon Steel SAE 1070-1090 | Military CAD Plating | Quote |
| VSH-437ST MPD | External/Shaft Beveled MS16630-3437 | Carbon Steel SAE 1070-1090 | Military Phosphate and Oil | Quote |
| VSH-437ST MZD | External/Shaft Beveled MS16630-2437 | Carbon Steel SAE 1070-1090 | Military Zinc Dichromate | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
- ZD - Zinc Dichromate, Carbon Steel
Documentation
Description
VSH retaining rings are axially assembled external beveled retaining rings and are part of Rotor Clip’s tapered section retaining ring line. Similar in appearance to standard SH rings, VSH rings feature a 15° beveled inner edge that wedges between the groove and the retained component when installed in a complementary angled groove, eliminating endplay and providing external axial retention.
