SHR-125
Looking for a specific material or finish? View complete part numbers and request a quote below.

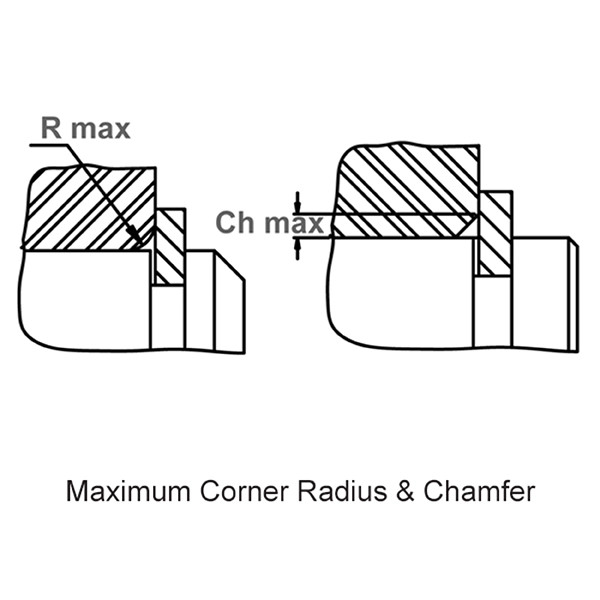

Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial
- Shaft Diameter Ds 1.250 inches
- Ds mm 31.700 mm
- Groove Diameter Dg 1.170 - 1.176 - inches
- Groove Width W 0.103 - 0.108 - inches
- Groove Depth D 0.038 inches
- Free Diameter Df 1.135 - 1.160 - inches
- Thickness T *** 0.090 - 0.096 - inches
- Lug Height H 0.215 - 0.225 - inches
- Maximum Section S Max 0.178 - 0.192 - inches
- Minimum Section S Min 0.096 - 0.110 - inches
- Hole Diameter R 0.093 - 0.093 - inches
- Weight Per 1000 Pcs. 14.900 lbs.
- Edge Margin Y Min. inches
- Clearance Dia. Expanded Over Shaft L1 1.700 inches
- Clearance Dia. Released In Groove L2 1.630 inches
- Gaging Dia. Gd Max inches
- Hardness ST 47.000 - 52.000 - HRC
- Hardness SS 44.000 - 51.000 - HRC
- Hardness BC 34.000 - 43.000 - HRC
- Interchange Waldes Truarc 5160 125
- Interchange IRR 7200 125
- Interchange Anderton N1460 0125
- Interchange Mil Or Aero MS3217C 125
- Interchange Din
Performance Data
- Thrust Ld. (lbs.) Ring Safety Factor Of 4 Pr 17,763 lbs.
- Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg 6,500 lbs.
- R.P.M. Limits Standard Material RPM 23,000.000
Tool Data
- Ratchet Pliers (w/o Tips) RP-28R
- Straight Ratchet Pliers Tips RP-5021R
- 45 Ratchet Pliers Tips RP-5023R
- 90 Ratchet Pliers Tips RP-5024R
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| SHR-125SS | External/Shaft Reinforced | PH 15-7 Stainless Steel | None/Self Finish | Quote |
| SHR-125SS MPS | External/Shaft Reinforced MS3217-4125 | PH 15-7 Stainless Steel | Military Passivation | Quote |
| SHR-125ST HPD | External/Shaft Reinforced | Carbon Steel SAE 1070-1090 | Heavy Phosphate and Oil | Quote |
| SHR-125ST PD | External/Shaft Reinforced | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| SHR-125ST Z3X | External/Shaft Reinforced | Carbon Steel SAE 1070-1090 | Trivalent Zinc | Quote |
| SHR-125ST ZD | External/Shaft Reinforced | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| SHR-125ST ZF | External/Shaft Reinforced | Carbon Steel SAE 1070-1090 | Zinc Flash | Quote |
| SHR-125ST MCD | External/Shaft Reinforced MS3217-1125 | Carbon Steel SAE 1070-1090 | Military CAD Plating | Quote |
| SHR-125ST MPD | External/Shaft Reinforced MS3217-3125 | Carbon Steel SAE 1070-1090 | Military Phosphate and Oil | Quote |
| SHR-125ST MZD | External/Shaft Reinforced MS3217-2125 | Carbon Steel SAE 1070-1090 | Military Zinc Dichromate | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description
SHR retaining rings are reinforced external axial circlips and are part of Rotor Clip’s tapered section retaining ring line. As an extra thick version of a standard SH ring, SHR rings provide increased strength and withstand higher thrust loads, delivering secure external axial retention on shafts.
