SH-137
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial
- Shaft Diameter Ds 1.375 inches
- Ds mm 34.900 mm
- Groove Diameter Dg 1.287 - 1.295 - inches
- Groove Width W 0.056 - 0.060 - inches
- Groove Depth D 0.042 inches
- Free Diameter Df 1.257 - 1.282 - inches
- Thickness T *** 0.048 - 0.052 - inches

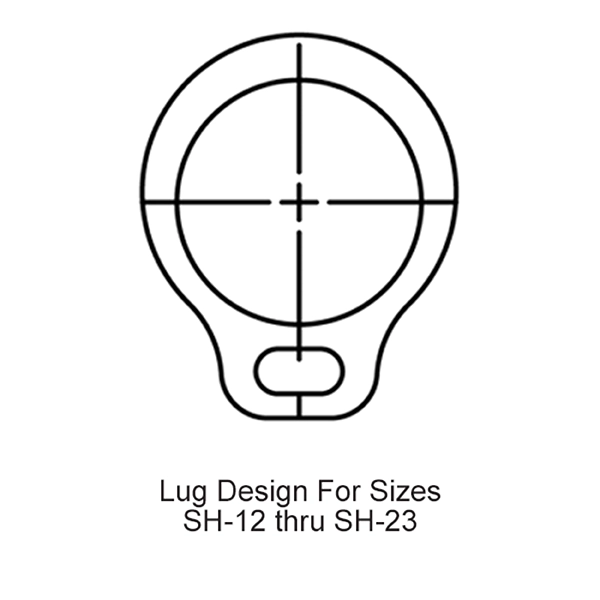

- Lug Height H 0.180 - 0.188 - inches
- Maximum Section S Max 0.146 - 0.158 - inches
- Minimum Section S Min 0.076 - 0.088 - inches
- Hole Diameter R 0.076 - 0.093 - inches
- Weight Per 1000 Pcs. 7.200 lbs.

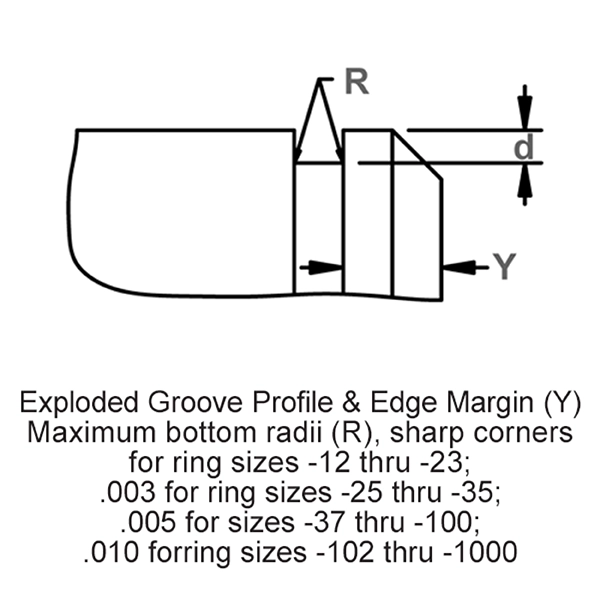

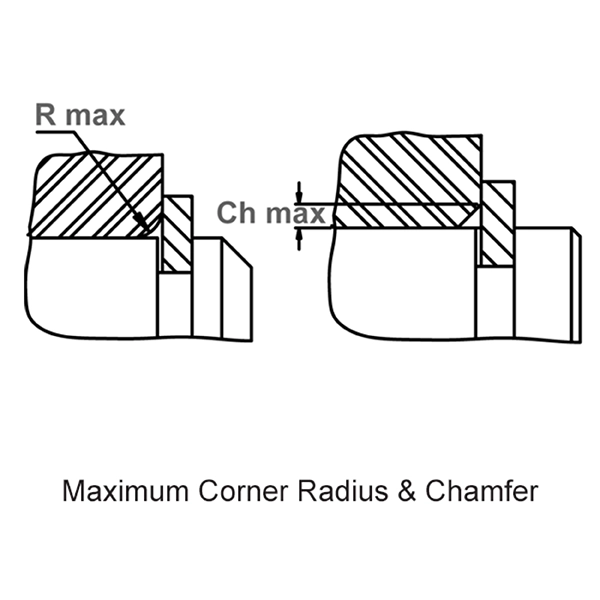

- Edge Margin Y Min. inches

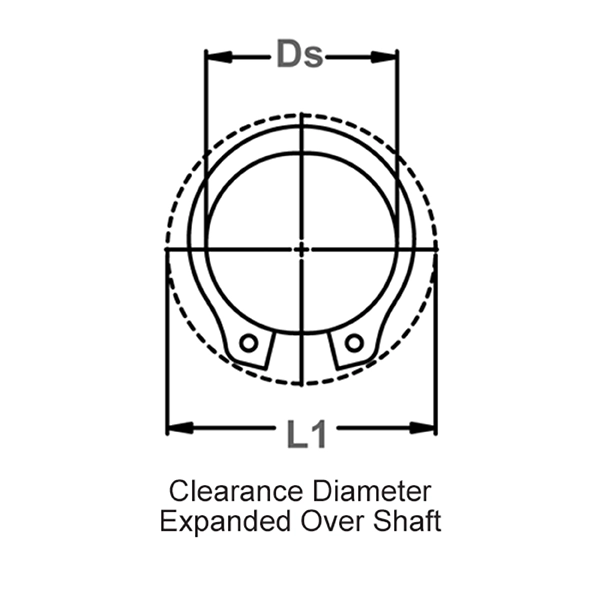

- Clearance Dia. Expanded Over Shaft L1 1.800 inches

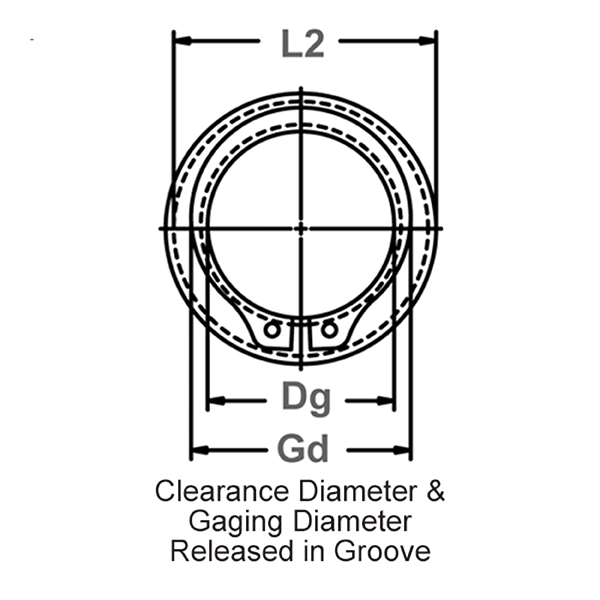

- Clearance Dia. Released In Groove L2 1.720 inches
- Gaging Dia. Gd Max inches
- Hardness ST 47.000 - 52.000 - HRC
- Hardness SS 44.000 - 51.000 - HRC
- Hardness BC 37.000 - 43.000 - HRC
- Interchange Waldes Truarc 5100 137
- Interchange IRR 3100 137
- Interchange Anderton N1400 0137
- Interchange Mil Or Aero MS16624D 137
- Interchange Din
Performance Data
- Thrust Ld. (lbs.) Ring Safety Factor Of 4 Pr 8,222 lbs.
- Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg 4,100 lbs.
- R.P.M. Limits Standard Material RPM 16,000.000
Tool Data
- Standard Pliers (Straight) RP-400
- 45 Standard Pliers RP-404
- 90 Standard Pliers RP-409
- Convertible Pliers RP-340
- 45 Convertible Pliers RP-344
- 90 Convertible Pliers RP-349
- Heavy Duty Pliers (Straight) RPN-A2
- 90 Heavy Duty Pliers RPN-A21
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| SH-137BC | External/Shaft | Beryllium Copper Alloy 25 | None/Self Finish | Quote |
| SH-137SS | External/Shaft | PH 15-7 Stainless Steel | None/Self Finish | Quote |
| SH-137SS MPS | External/Shaft MS16624-4137 | PH 15-7 Stainless Steel | Military Passivation | Quote |
| SH-137ST HPD | External/Shaft | Carbon Steel SAE 1070-1090 | Heavy Phosphate and Oil | Quote |
| SH-137ST PD | External/Shaft | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| SH-137ST Z3X | External/Shaft | Carbon Steel SAE 1070-1090 | Trivalent Zinc | Quote |
| SH-137ST ZD | External/Shaft | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| SH-137ST ZF | External/Shaft | Carbon Steel SAE 1070-1090 | Zinc Flash | Quote |
| SH-137ST MCD | External/Shaft MS16624-1137 | Carbon Steel SAE 1070-1090 | Military CAD Plating | Quote |
| SH-137ST MPD | External/Shaft MS16624-3137 | Carbon Steel SAE 1070-1090 | Military Phosphate and Oil | Quote |
| SH-137ST MZD | External/Shaft MS16624-2137 | Carbon Steel SAE 1070-1090 | Military Zinc Dichromate | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description

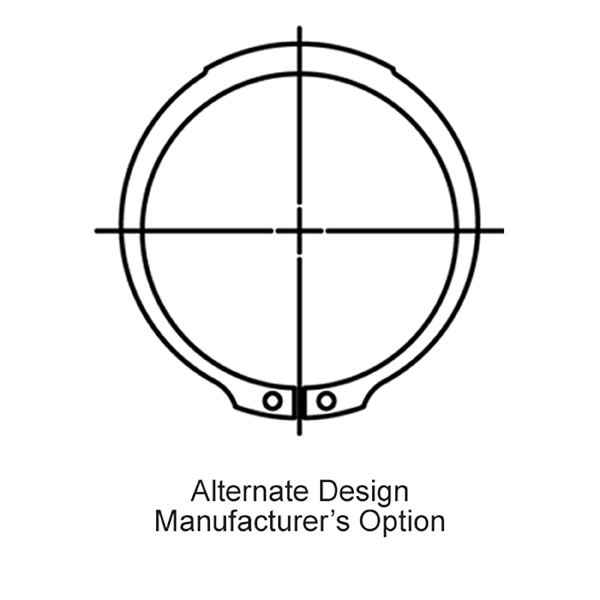

SH retaining rings are axially assembled external circlips within Rotor Clip’s tapered section retaining ring line. Installed into a groove on a shaft, the protruding shoulder retains components by preventing axial movement along the shaft.
