Part Data
- Housing or Shaft Shaft
- Axial or Radial Radial
- Shaft Diameter Ds 0.154 - 0.158 - inches
- Ds mm 4.000 mm

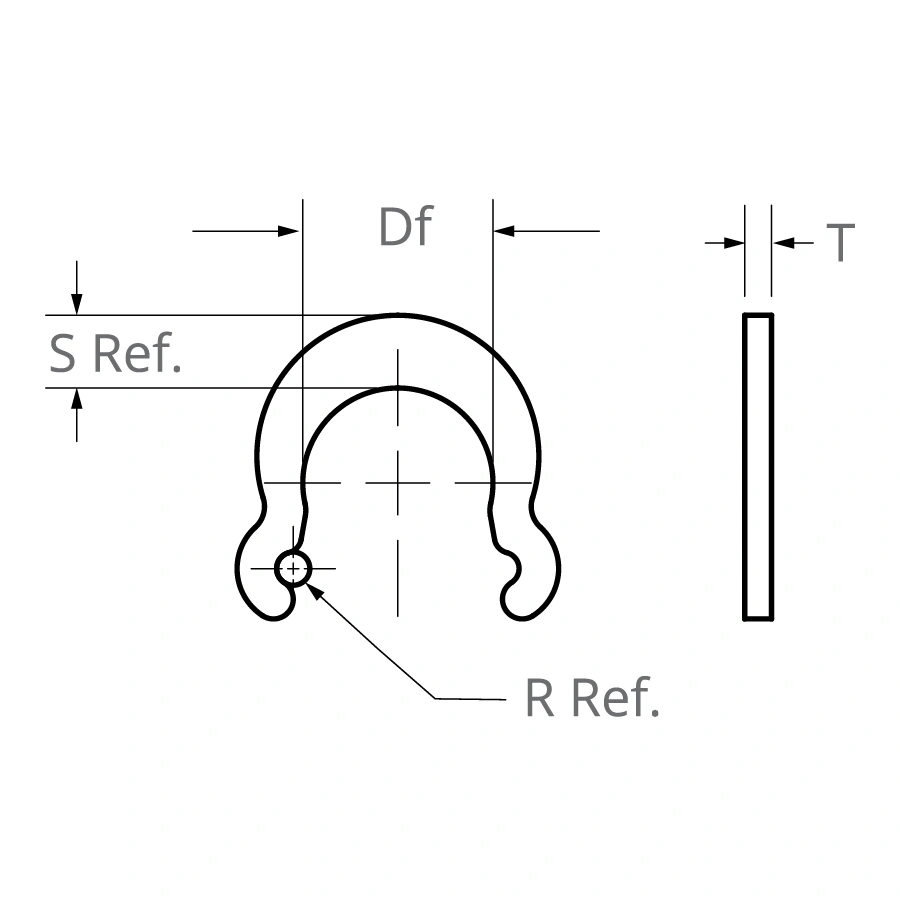

- Free Diameter Df 0.145 - 0.151 - inches
- Thickness T *** 0.023 - 0.027 - inches
- Large Sect. S 0.078 inches
- Notch Dia. R 0.040 inches
- Weight Per 1000 Pcs. 0.270 lbs.

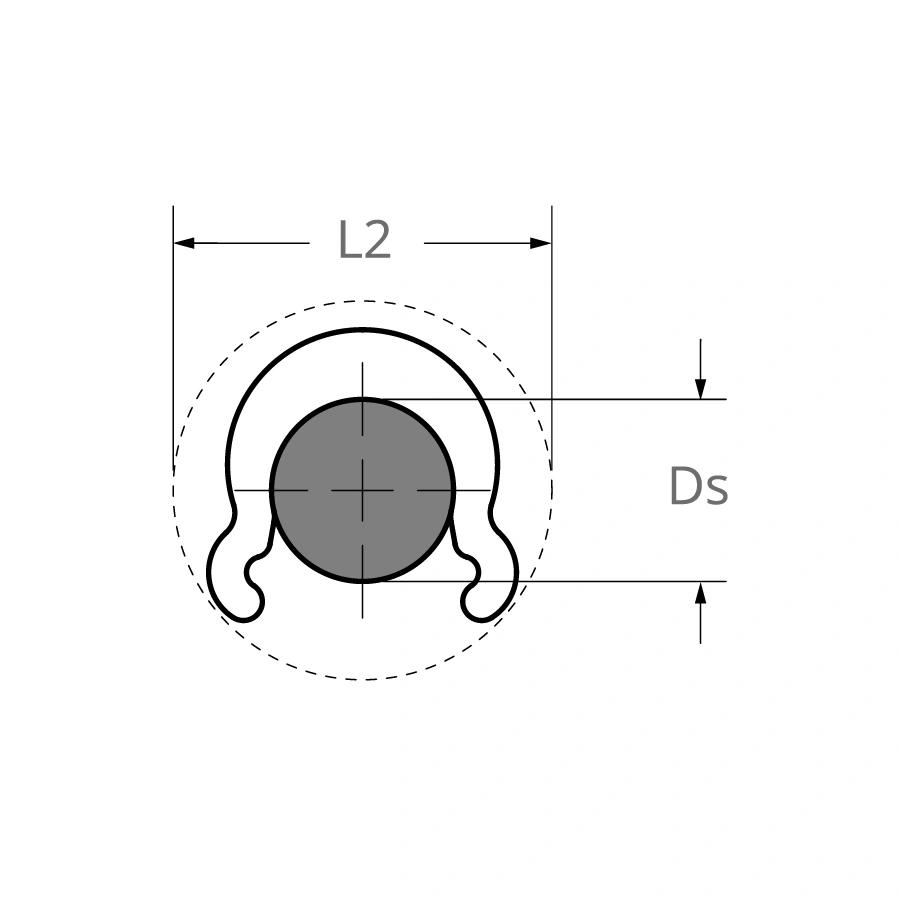

- Clearance Dia. Installed On Shaft L2 0.380 inches
- Hardness ST 65.800 - 70.200 - HR30N
- Interchange Waldes Truarc 5135 15
- Interchange IRR
- Interchange Anderton
- Interchange Mil Or Aero
- Interchange Din
Performance Data
- Allowable Thrust Load Pr 13.000 lbs.
- R.P.M. Limits Standard Material RPM
Materials
- Carbon Steel (SAE 1060-1090)
- Beryllium Copper
- Special Material Grades
- Stainless Steel (PH15-7 Mo, PH17-7)
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description
External, Self-Locking Radial Grip. The RG makes indentations on either side of the groove once installed which significantly increases its holding power. It can also be installed directly against the face of the retained part, virtually eliminating end play. (Note: this product works only on soft shafts.)
