Rings / Spiral Retaining Rings / NCG

NCG-350

Print this page

Images

Product Image

CAD

Part Data

  • Housing or Shaft Shaft
  • Axial or Radial Axial

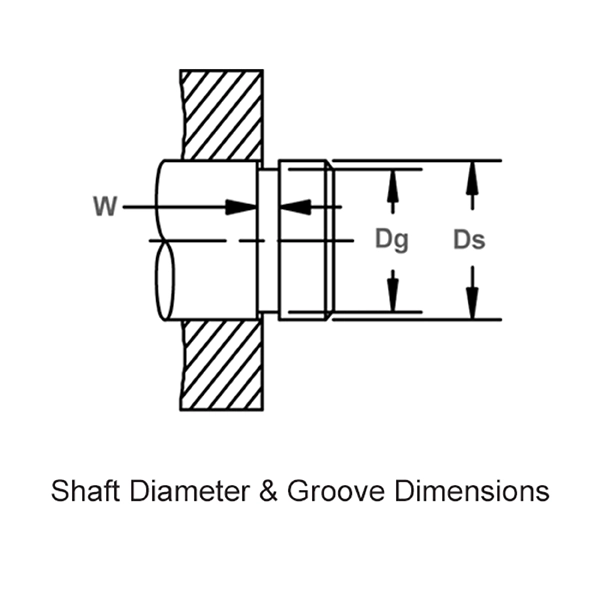

  • Shaft Diameter Ds 3.500 inches
  • Groove Diameter Dg 3.316 inches
  • Groove Width W inches
  • Section S 0.281 inches
  • Thickness T 0.111 inches
  • Wave Spring Design Crimped Design
  • Free Height Fh inches
  • Number Of Waves 4.000
  • Work Height WH 0.185 inches
  • Interchange Mil Or Aero

Performance Data

  • Load 115 lbs.

Materials

  • Carbon Steel (SAE 1060-1090)
  • Special Material Grades
  • Stainless Steel AISI 302
  • Stainless Steel AISI 316
  • Stainless Steel (17-7 PH/C)

Finishes

***For plated rings, add .002" (.05 mm) to the listed maximum thickness.

  • OIL - Oil over Steel, Carbon Steel

Documentation

Description

External, Spiral, Inch. The waves in this spiral ring compensate for accumulated tolerances.
