MKR-61
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial

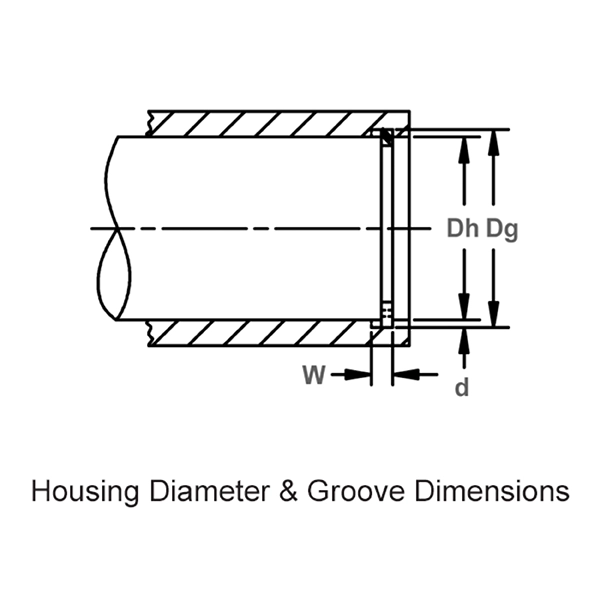

- Dh mm 61.000 mm
- Groove Diameter Dg 64.150 - 64.450 - mm
- Groove Width W 2.180 - 2.310 - mm
- Free Diameter Df 64.760 - 65.390 - mm
- Section S 4.600 - 4.900 - mm
- Thickness T 1.900 - 2.100 - mm
- Interchange Mil Or Aero
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 109,879.000 N
- Thrust Load Groove Safety Factor Of 2 Pg 52,323.000 N
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| MKR-61SJ | Metric Spiral Internal/Housing Medium Heavy Duty | 302 Stainless | None/Self Finish | Quote |
| MKR-61ST OIL | Metric Spiral Internal/Housing Medium Heavy Duty | Carbon Steel SAE 1070-1090 | Oil | Quote |
| MKR-61SU | Metric Spiral Internal/Housing Medium Heavy Duty | 316 Stainless | None/Self Finish | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
MKR retaining rings are internal medium-heavy duty metric spiral rings and are part of Rotor Clip’s spiral retaining ring family. These two-turn and multi-turn rings provide 360° groove contact for internal axial retention in applications with medium-high thrust loads.
