KM-90
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial

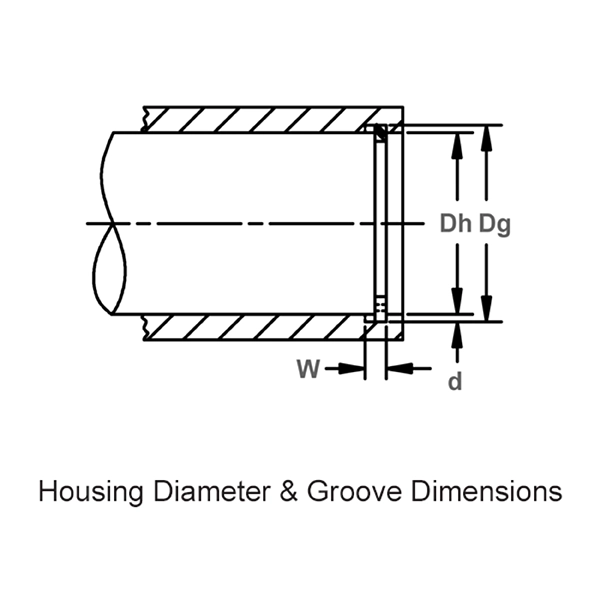

- Housing Dia. Dh 0.906 inches
- Groove Diameter Dg 0.940 - 0.946 - inches
- Groove Width W 0.036 - 0.039 - inches
- Free Diameter Df 0.949 - 0.962 - inches
- Section S 0.060 - 0.068 - inches
- Thickness T 0.029 - 0.033 - inches
- Interchange Mil Or Aero M274263 116
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 4,060 lbs.
- Thrust Load Groove Safety Factor Of 2 Pg 1,220 lbs.
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| KM-90SJ | Spiral Internal/Housing Medium Duty | 302 Stainless | None/Self Finish | Quote |
| KM-90SJ SPA ND MP3 | Spiral Internal/Housing Medium Duty AS3217-116 | 302 Stainless | NADCAP Certified Finishing Process Passivation | Quote |
| KM-90ST OIL | Spiral Internal/Housing Medium Duty | Carbon Steel SAE 1070-1090 | Oil | Quote |
| KM-90SU | Spiral Internal/Housing Medium Duty | 316 Stainless | None/Self Finish | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
KM retaining rings are internal medium-duty spiral rings and are part of Rotor Clip’s spiral retaining ring family. These two-turn rings provide 360° groove contact and are designed for applications with medium thrust loads.
