HOI-93
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial

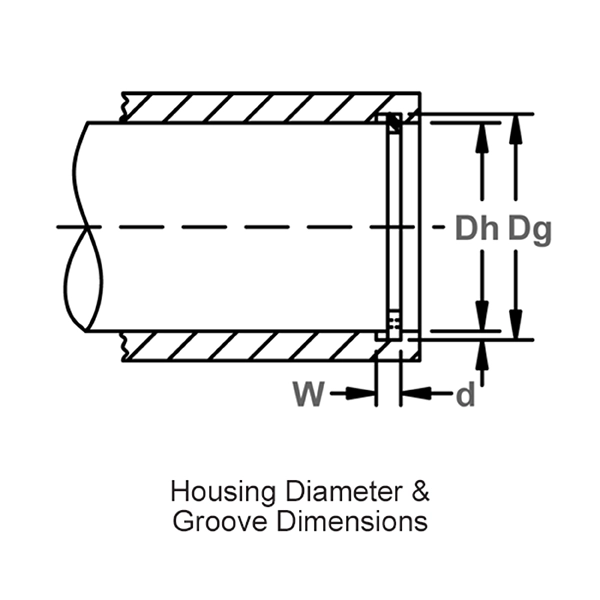

- Housing Dia. Dh 0.938 inches
- Dh mm 23.800 mm
- Groove Diameter Dg 0.997 - 1.003 - inches
- Groove Width W 0.046 - 0.049 - inches
- Groove Depth D 0.031 inches
- Free Diameter Df 1.010 - 1.025 - inches
- Thickness T *** 0.040 - 0.044 - inches
- Maximum Section S Max 0.101 - 0.111 - inches
- Minimum Section S Min 0.046 - 0.056 - inches
- Hole Diameter R 0.040 - 0.052 - inches
- Weight Per 1000 Pcs. 2.800 lbs.

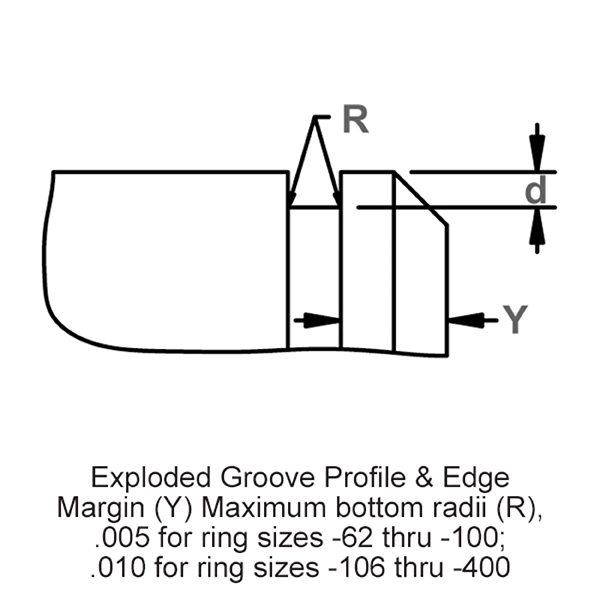

- Edge Margin Y Min. inches
- Clearance Dia. Compressed In Housing L1 0.700 inches
- Clearance Dia. Released In Groove L2 0.755 inches
- Gap Width Ring In Groove G inches
- Hardness ST 66.000 - 71.000 - HR30N
- Hardness SS 63.000 - 69.500 - HR30N
- Hardness BC 56.500 - 62.000 - HR30N
- Interchange Waldes Truarc 5008 93
- Interchange IRR 4000 93
- Interchange Anderton N1308 0093
- Interchange Mil Or Aero MS16627C 93
- Interchange Din
Performance Data
- Thrust Ld. (lbs.) Ring Safety Factor Of 4 Pr 3,147 lbs.
- Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg 1,000 lbs.
Tool Data
- Standard Pliers (Straight) RP-100
- 45 Standard Pliers RP-104
- 90 Standard Pliers RP-109
- Convertible Pliers RP-120
- 45 Convertible Pliers RP-124
- 90 Convertible Pliers RP-129
- Heavy Duty Pliers (Straight) RPN-J0
- 90 Heavy Duty Pliers RPN-J01
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| HOI-93SS | Inverted Internal/Housing | PH 15-7 Stainless Steel | None/Self Finish | Quote |
| HOI-93SS MPS | Inverted Internal/Housing MS16627-4093 | PH 15-7 Stainless Steel | Military Passivation | Quote |
| HOI-93ST PD | Inverted Internal/Housing | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| HOI-93ST Z3X | Inverted Internal/Housing | Carbon Steel SAE 1070-1090 | Trivalent Zinc | Quote |
| HOI-93ST ZD | Inverted Internal/Housing | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| HOI-93ST ZF | Inverted Internal/Housing | Carbon Steel SAE 1070-1090 | Zinc Flash | Quote |
| HOI-93ST MCD | Inverted Internal/Housing MS16627-1093 | Carbon Steel SAE 1070-1090 | Military CAD Plating | Quote |
| HOI-93ST MPD | Inverted Internal/Housing MS16627-3093 | Carbon Steel SAE 1070-1090 | Military Phosphate and Oil | Quote |
| HOI-93ST MZD | Inverted Internal/Housing MS16627-2093 | Carbon Steel SAE 1070-1090 | Military Zinc Dichromate | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description
HOI retaining rings are axially assembled internal circlips with inverted lugs and are part of Rotor Clip’s tapered section retaining ring family. Functionally similar to standard HO rings, the lugs on HOI rings are reversed. This inverted lug configuration reduces how far the lugs extend into the inner circumference of the housing/bore, allowing other assemblies to pass through unimpeded.
