HN-800
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial
- Housing Dia. Dh 8.000 inches
- Dh mm 203.200 mm
- Groove Diameter Dg 8.152 - 8.168 - inches
- Groove Width W 0.103 - 0.108 - inches
- Groove Depth D 0.080 inches

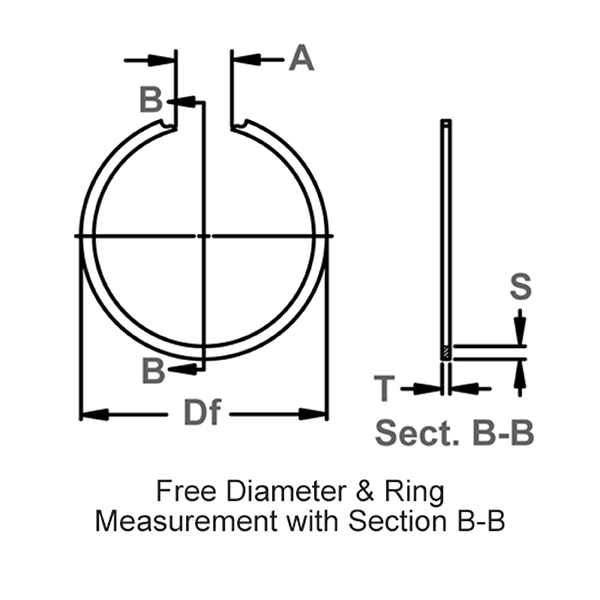

- Free Diameter Df 8.285 - 8.472 - inches
- Section S 0.245 - 0.255 - inches
- Thickness T 0.091 - 0.095 - inches
- Free Gap A 1.000 - 1.750 - inches
- Hardness ST 42.000 - 52.000 - HRC
Performance Data
- Allowable Static Thrust Load 5,700.000 lbs.
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| HN-800ST PD | Internal /Housing Constant Section | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
HN retaining rings are internal inch snap rings and are part of Rotor Clip’s constant section retaining ring family. Specifically designed for use with needle bearings, these rings are installed into the groove of a housing/bore where the portion of the ring protruding from the groove acts as a shoulder to hold an assembly in place.
