Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial
- Nom. Wire Dia. E 0.107 inches
- Length Of Tangs F 0.344 - 0.375 - inches
- Width Over Tangs W Max. 1.060 inches

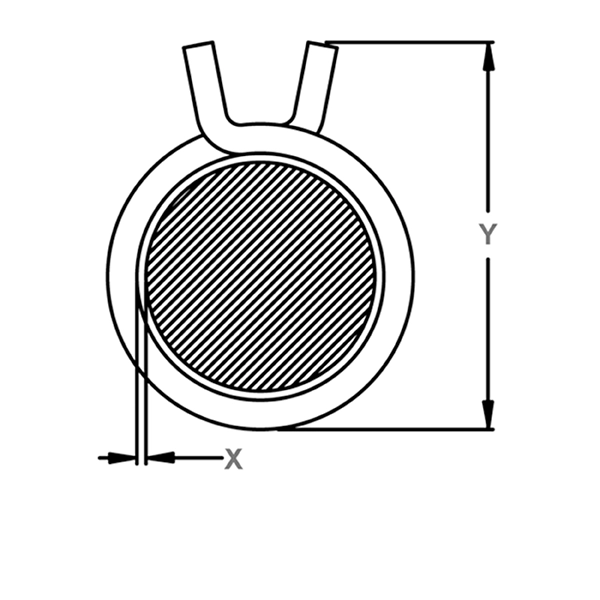

- Overall Height Y (Ref. Only) 1.380 inches
- G Clearance At Overlap Max. 0.025 inches
- Approx. Case Weight (lbs.) 38 lbs.
- A Max. Dia. 0.671 inches
- B Nom. Dia. 0.656 inches
- C Min. Dia. 0.641 inches
- No-Go Gage Dia. D 0.611 inches
Performance Data
- Clamping Range 0.641 - 0.671 - inches
Tool Data
- Standard Pliers KC-18
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel DIN 1.4122
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- ZFF - Zinc Flash, Carbon Steel
- G - Green, Carbon Steel
- R - Red, Carbon Steel
- CS - Magni 565 (Silver), Carbon Steel
- CK - Magni 565 (Black), Carbon Steel
- FS - Magni 511 (Silver), Carbon Steel
- FK - Magni 511 (Black), Carbon Steel
- ZD - Zinc Dichromate, Carbon Steel
- PAG - Phosphate with Green Paint, Carbon Steel
- PAR - Phosphate with Red Paint, Carbon Steel
- PAD - Phosphate with Olive Drab, Carbon Steel
Documentation
Description
Single Wire, Self-Compensating Hose Clamp. Single wire clamps have the most effective holding force and clamping strength. The single wire concentrates the clamping force in one specific area around the hose.
