DSI-90
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial
- Ds mm 90.000 mm
- Groove Diameter Dg 86.860 - 86.500 - mm
- Groove Width W 3.150 mm
- Groove Depth D 1.750 mm

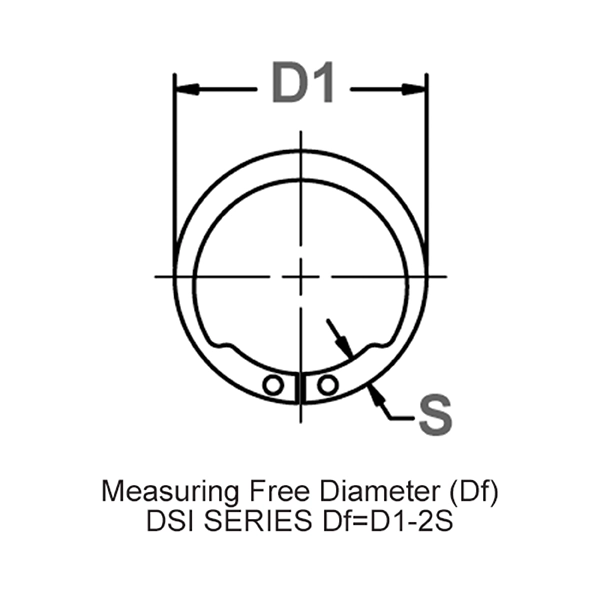

- Free Diameter Df 83.200 - 85.040 - mm
- Thickness T *** 2.920 - 3.000 - mm
- Hole Diameter R 3.000 mm
- Large Sect. S 7.100 - 7.700 - mm
- Weight Per 1000 Pcs. 41.900 kg

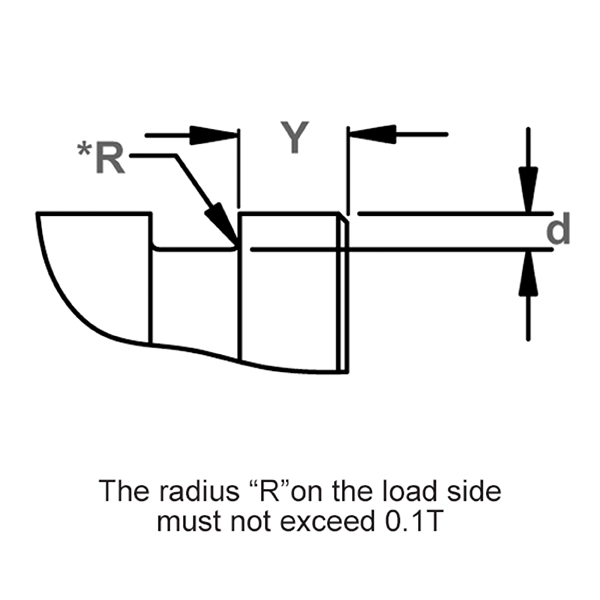

- Edge Margin Y Min. 5.300 mm

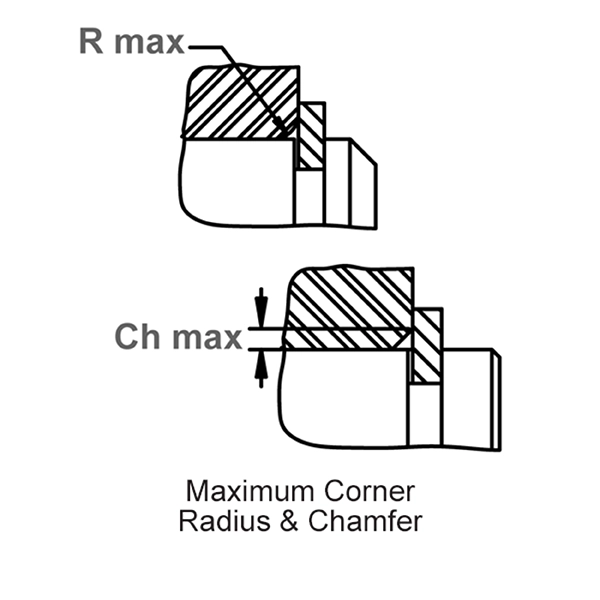

- Allowable Radius / Chamfer R/Ch Max, 3.000 mm
- Hardness ST 44.000 - 51.000 - HRC
- Hardness SG 47.000 - 54.000 - HRC
- Interchange Waldes Truarc
- Interchange IRR
- Interchange Anderton M1408 0900
- Interchange Mil Or Aero
- Interchange Din
- Interchange Seeger-Orbis AV 90
Performance Data
- Thrust Load Ring Pr 157.000 kN
- Thrust Load Groove Pg 42.000 kN
- R.P.M. Limits Standard Material RPM 4,000.000
- Max. Load W/ R Max Or Ch Max PR 24.800 kN
Tool Data
- Ratchet Pliers (w/o Tips) RP-1000
- Straight Ratchet Pliers Tips RP-8002R
- 45 Ratchet Pliers Tips RP-8452R
- 90 Ratchet Pliers Tips RP-8902R
- Heavy Duty Pliers (Straight) RPN-A3
- 90 Heavy Duty Pliers RPN-A31
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| DSI-90ST PD | Metric External/Shaft Inverted | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
- Stainless Steel DIN 1.4122
- Phosphor Bronze
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
- ZD - Zinc Dichromate, Carbon Steel
Documentation
Description

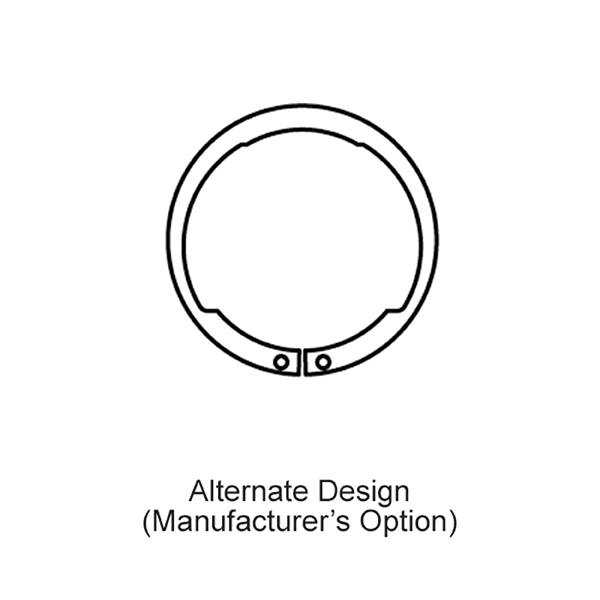

DSI retaining rings are axially assembled external metric circlips with inverted lugs and are part of Rotor Clip’s tapered section retaining ring line. Functionally similar to standard DSH rings, the inverted lugs reduce how far the lugs extend beyond the shaft circumference, making them suitable for applications with minimal radial clearance.
