DHI-28
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial

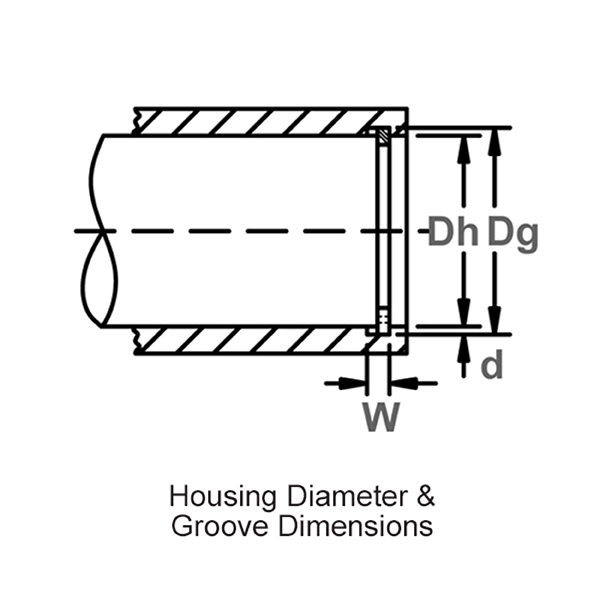

- Dh mm 28.000 mm
- Groove Diameter Dg 29.400 - 29.610 - mm
- Groove Width W 1.300 mm
- Groove Depth D 0.700 mm

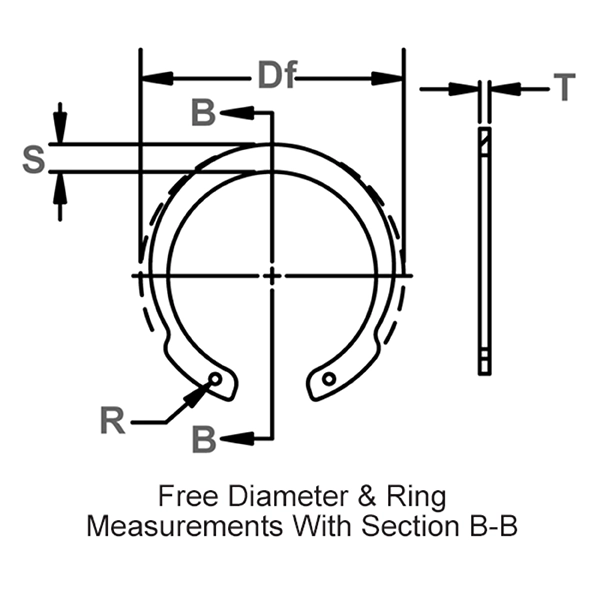

- Free Diameter Df 29.850 - 30.600 - mm
- Thickness T *** 1.140 - 1.200 - mm
- Hole Diameter R 1.500 mm
- Large Sect. S 3.000 - 3.200 - mm
- Weight Per 1000 Pcs. 1.800 kg

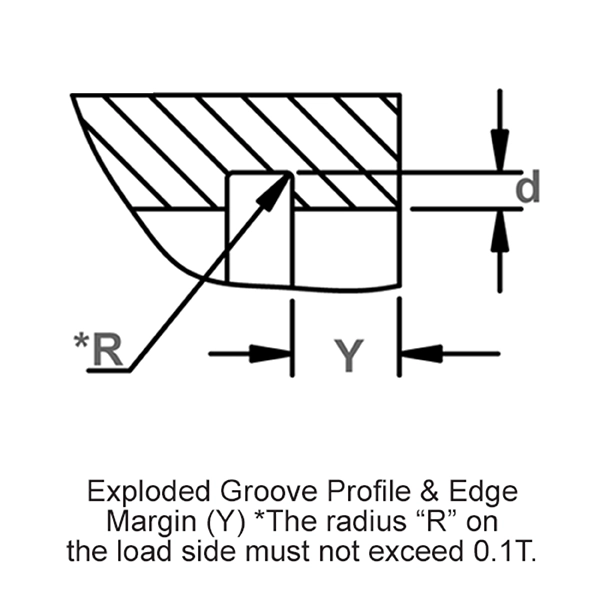

- Edge Margin Y Min. 2.100 mm
- Allowable Radius / Chamfer R/Ch Max, 1.000 mm
- Hardness ST 47.000 - 54.000 - HRC
- Hardness SG 47.000 - 54.000 - HRC
- Interchange Waldes Truarc
- Interchange IRR
- Interchange Anderton M1308 0280
- Interchange Mil Or Aero
- Interchange Din
- Interchange Seeger-Orbis JV 28
Performance Data
- Thrust Load Ring Pr 15.300 kN
- Thrust Load Groove Pg 5.100 kN
- Max. Load W/ R Max Or Ch Max PR 5.200 kN
Tool Data
- Heavy Duty Pliers (Straight) RPN-J1
- 90 Heavy Duty Pliers RPN-J11
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| DHI-28SG | Metric Internal/Housing Inverted | DIN 1.4122 Stainless | None/Self Finish | Quote |
| DHI-28ST PD | Metric Internal/Housing Inverted | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| DHI-28ST Z3X | Metric Internal/Housing Inverted | Carbon Steel SAE 1070-1090 | Trivalent Zinc | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
- Stainless Steel DIN 1.4122
- Phosphor Bronze
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
- ZD - Zinc Dichromate, Carbon Steel
Documentation
Description
DHI retaining rings are axially assembled internal inverted metric circlips and are part of Rotor Clip’s tapered section retaining ring line. Functioning similarly to a DHO ring, the lugs are reversed to reduce the distance they extend into the inner circumference of the housing/bore. This design allows for other assemblies to pass through unimpeded.
