Wave Spring Application Examples

Wave Spring Solutions For Virtually Any Application

Rotor Clip Wave Springs are widely utilized across diverse manufacturing sectors, including Automotive, Aerospace, Defense, Energy, and Medical industries. Our range of wave springs are available in standard and custom configurations, engineered to suit various application needs. From single-turn wave springs to nested designs, Rotor Clip offers an extensive selection to meet specific requirements. Explore some examples below to see how Rotor Clip’s wave springs excel in different applications.

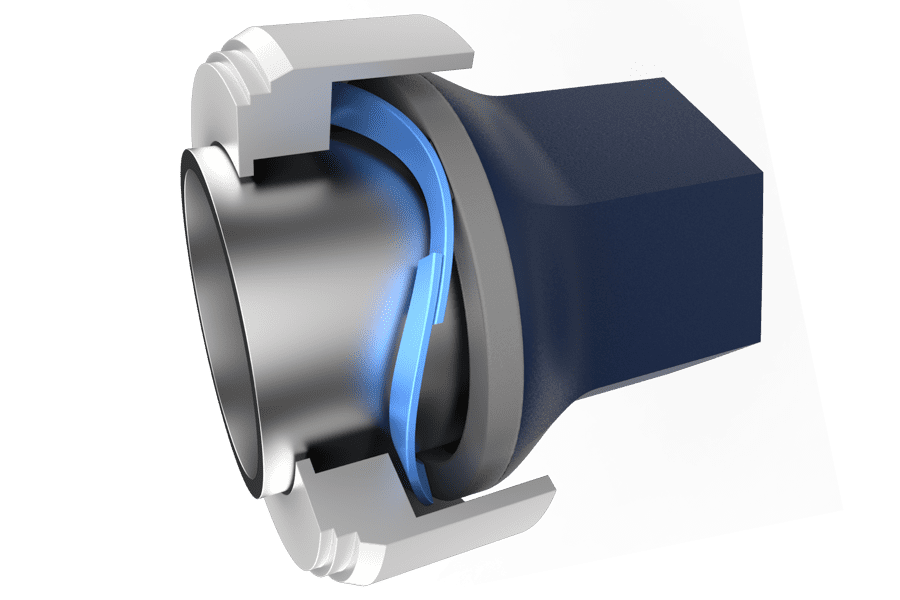

Single-turn wave spring providing retention and sealing force in a quick connector

Quick Connector with Single-Turn Wave Spring

Single-turn wave spring controlling compression in a compact ultrasonic motor.

Ultra Sonic Motor with Single-Turn Wave Spring

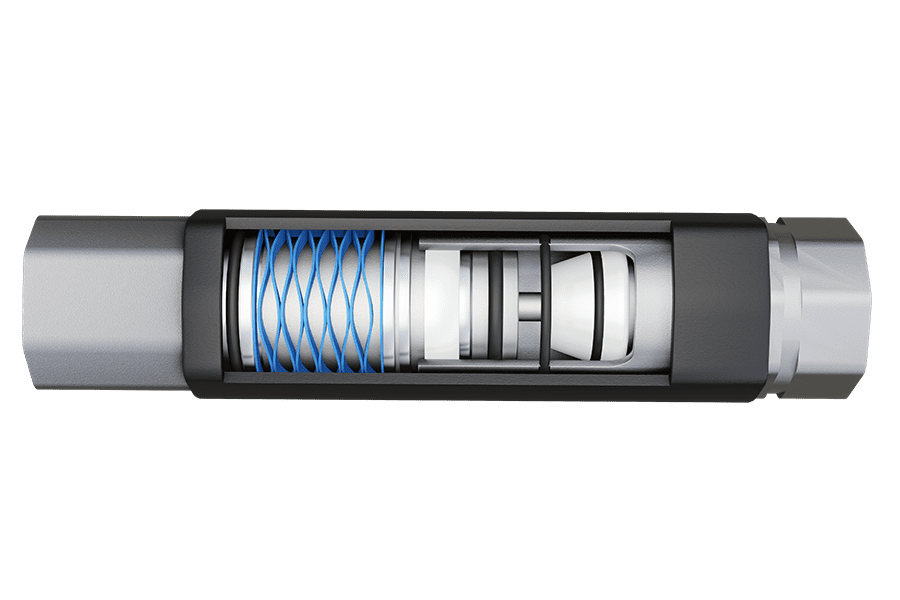

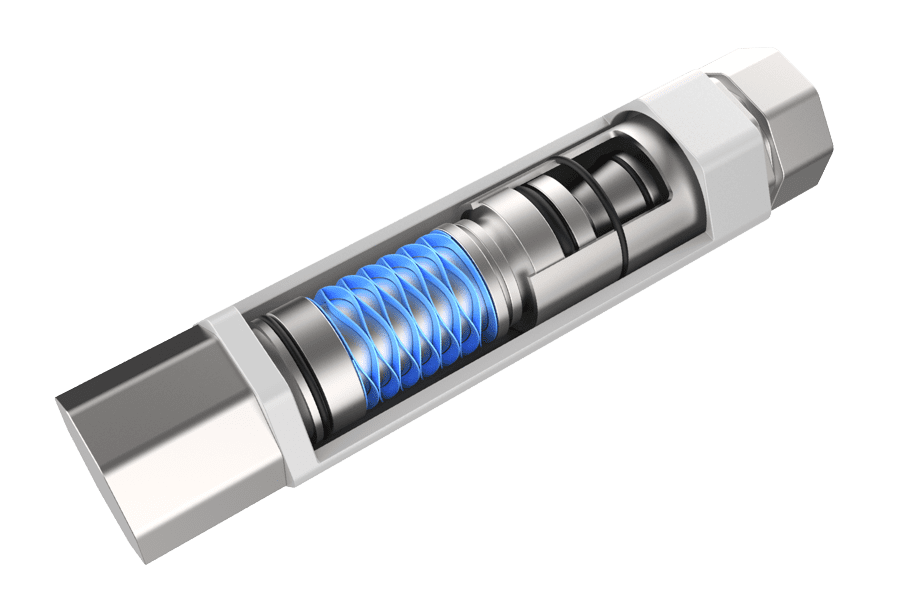

Multi-turn wave spring providing axial preload and secure engagement in a breakaway fluid coupling to maintain connection under pressure while allowing safe disconnection under excess force.

Break Away Fluid Coupling with Multi-Turn Wave Spring

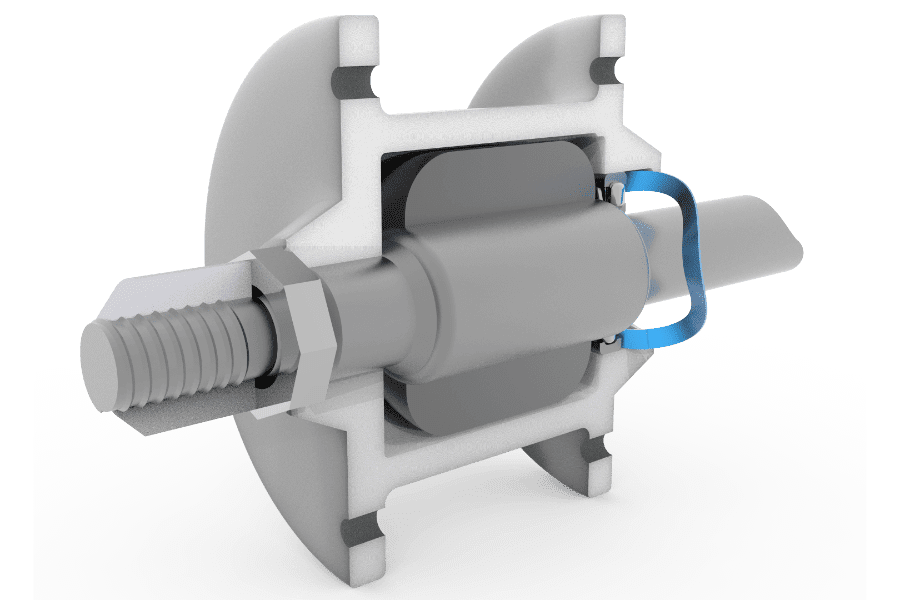

Single-turn wave spring controlling preload in an automotive steering mechanism.

Power Steering Assembly with Single-Turn Wave Spring preloading a bearing

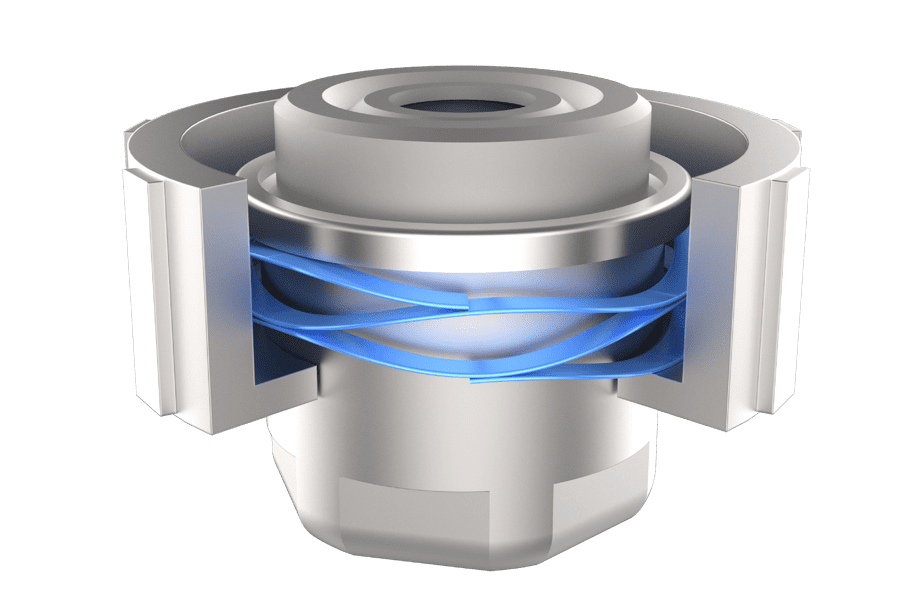

Multi-turn wave spring providing consistent load in a flow control valve.

Fluid Filter Cartridge with Multi-Turn Wave Spring

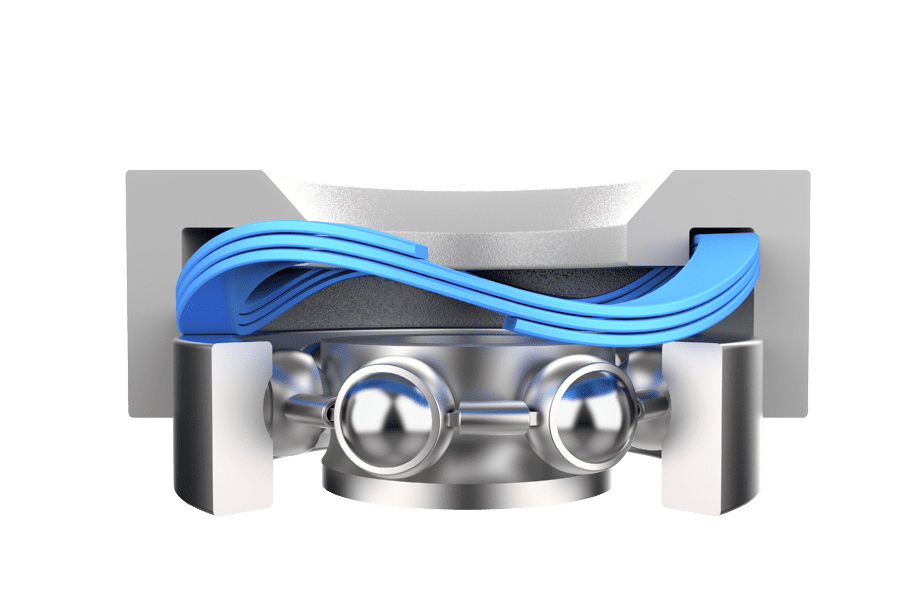

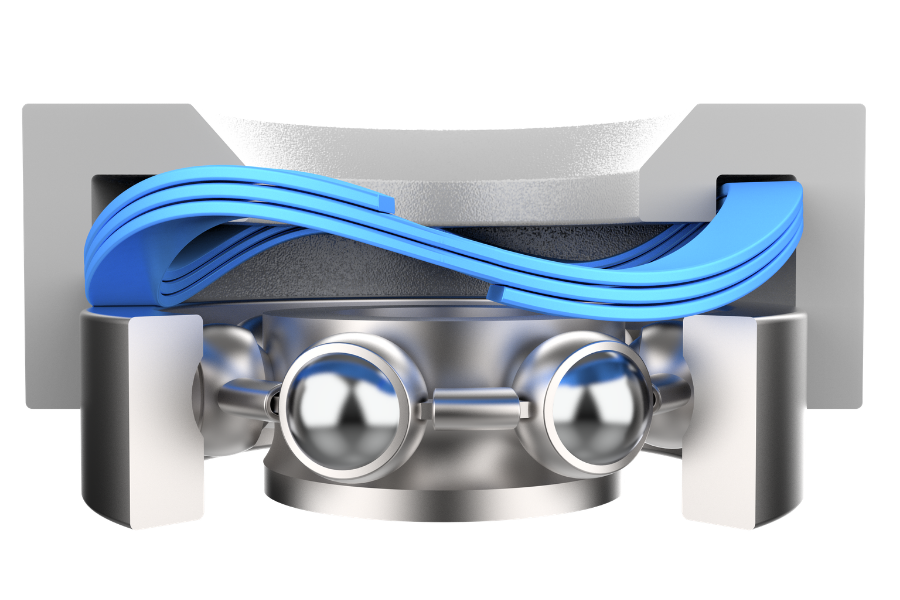

Nested wave spring stack used to achieve high preload forces in bearing assemblies.

Bearing Preload with Nested Wave Spring

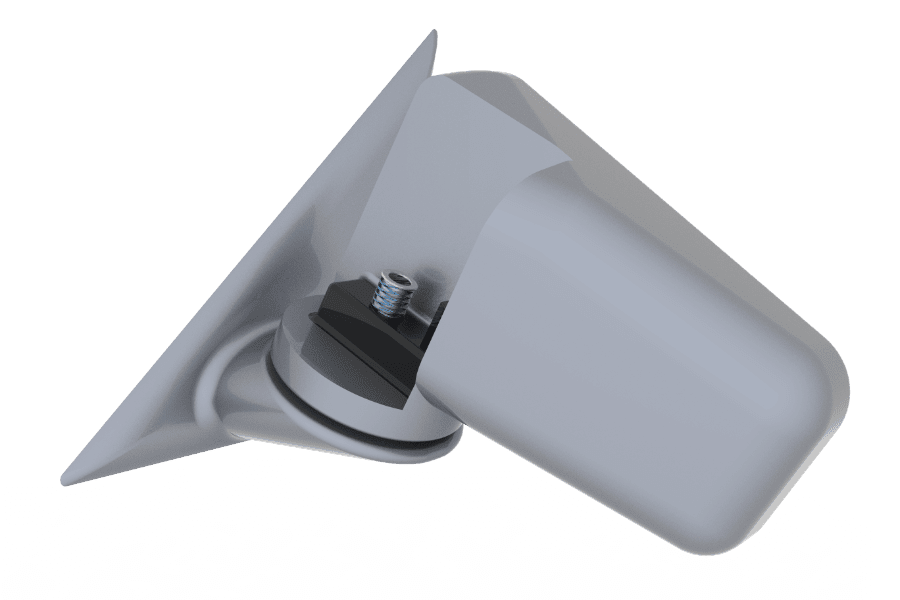

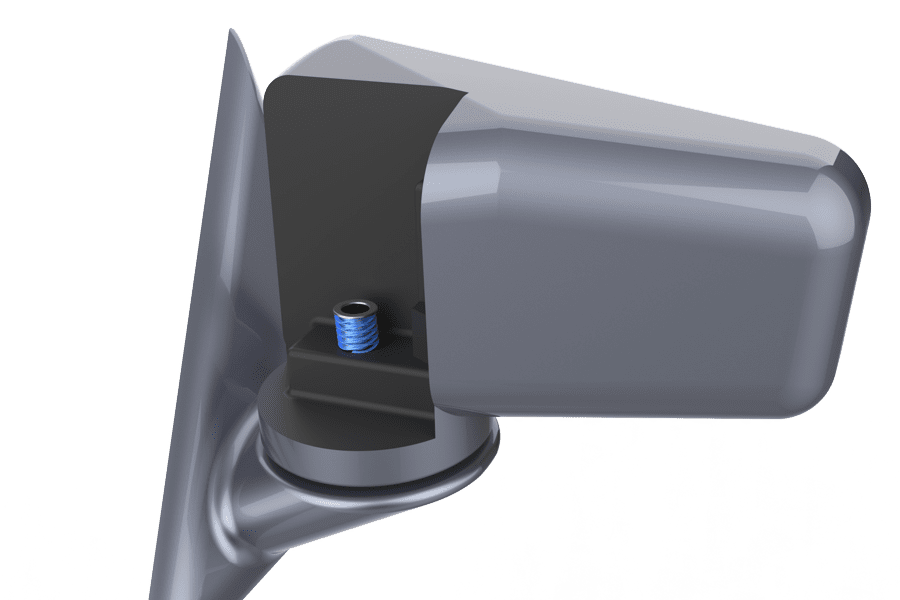

Multi-turn wave spring enabling controlled motion in a car side mirror mechanism.

Side View Mirror with Multi-Turn Wave Spring

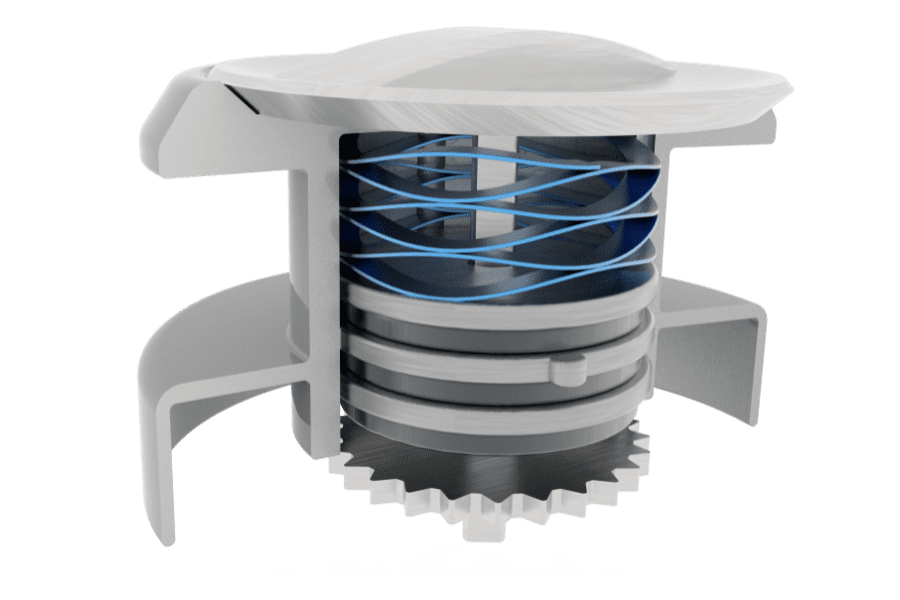

Multi-turn wave spring maintaining tension and smooth drag operation in a fishing reel.

Fishing Reel with Multi-Turn Wave Spring

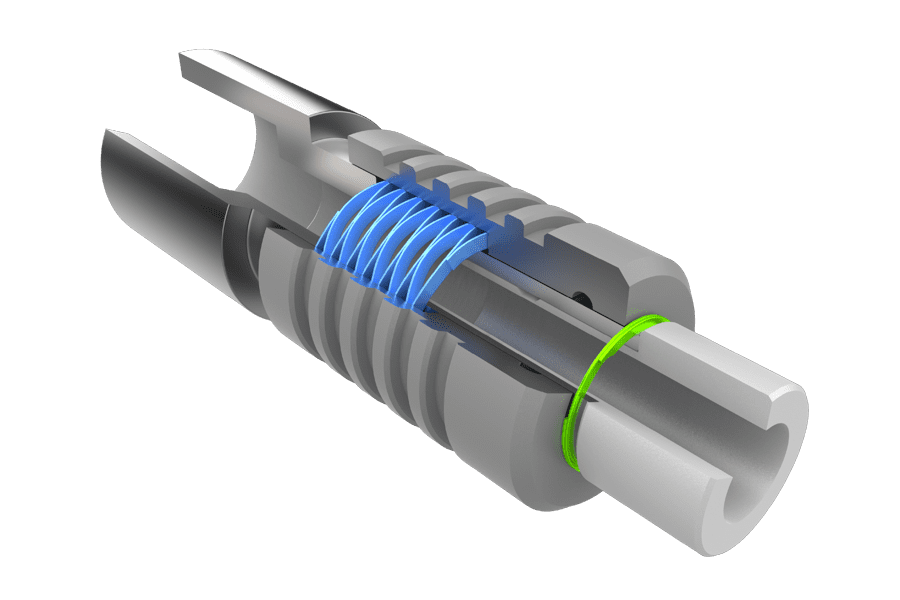

fluid quick connector with spiral ring and multi-turn wave spring

Fluid Quick Connect with Multi-Turn Wave Spring and Spiral Ring

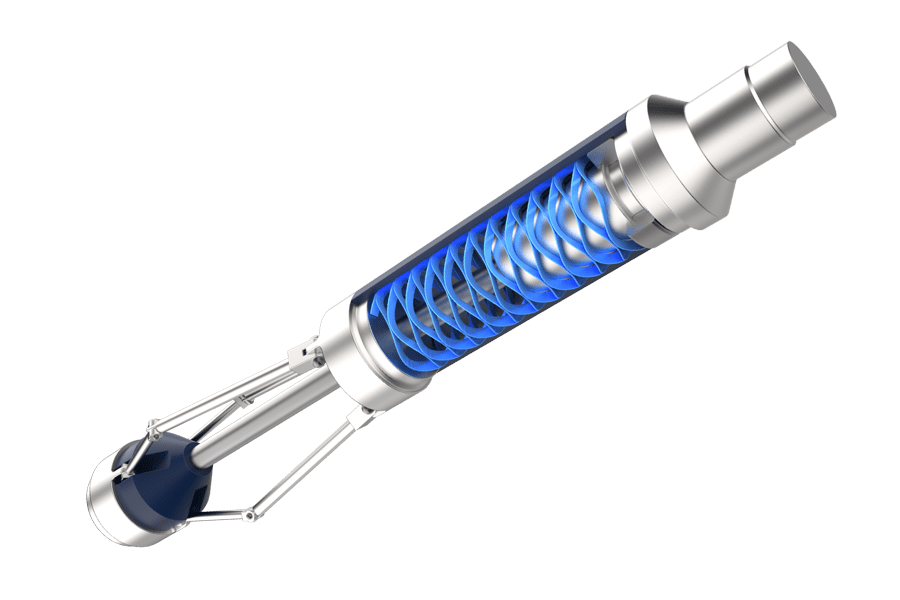

Multi-turn wave spring providing preload in a downhole drilling tool mechanism.

Downhole Drilling Tool with Multi-Turn Wave Spring

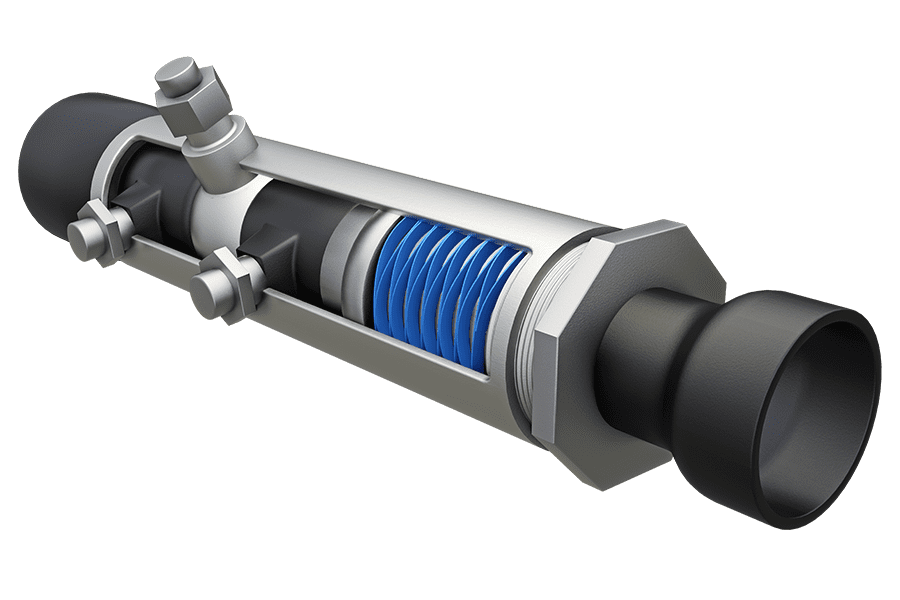

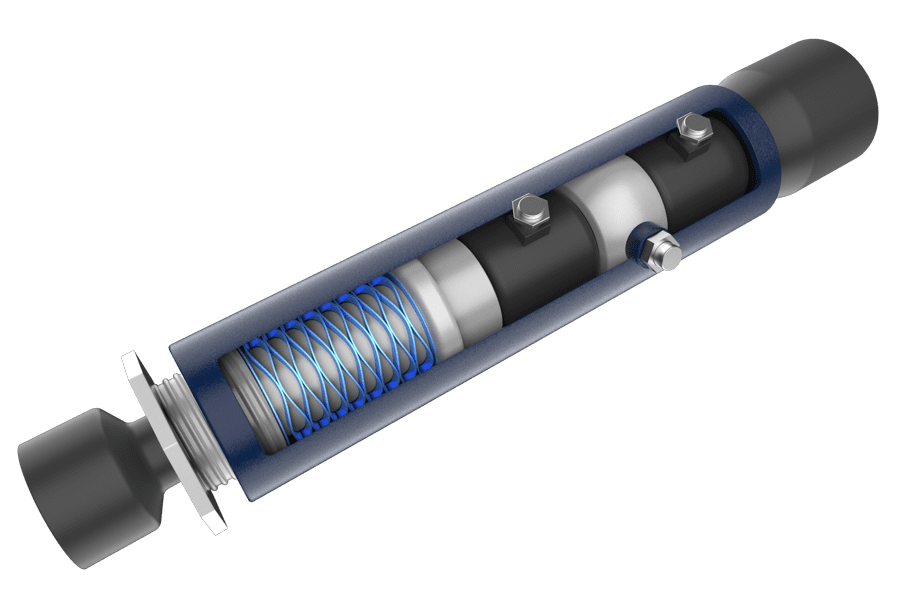

Multi-turn wave spring providing consistent load in a flow control valve.

Fluid Flow Valve with Multi-Turn Wave Spring

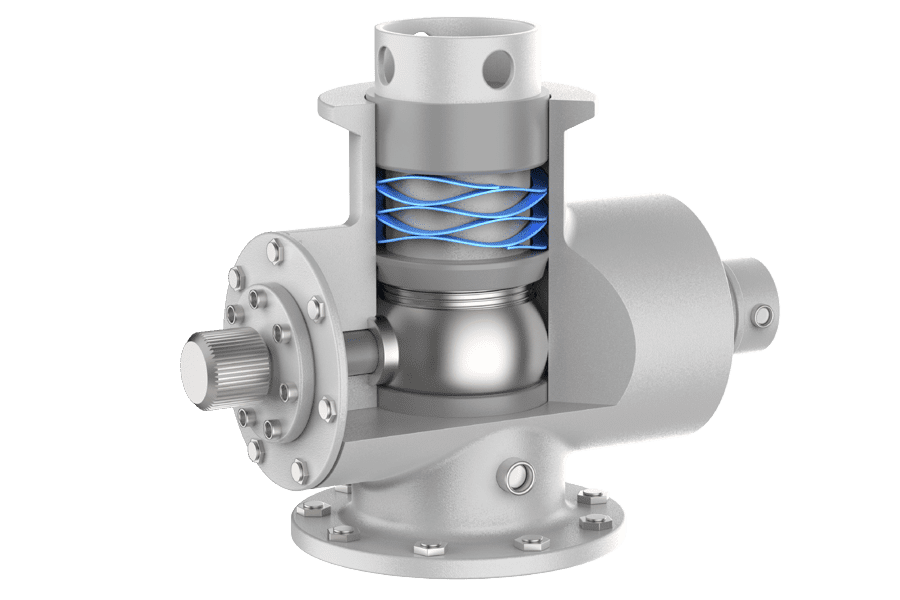

Multi-turn wave spring providing sealing and preload in a ball valve assembly.

Ball Valve with Multi-Turn Wave Spring

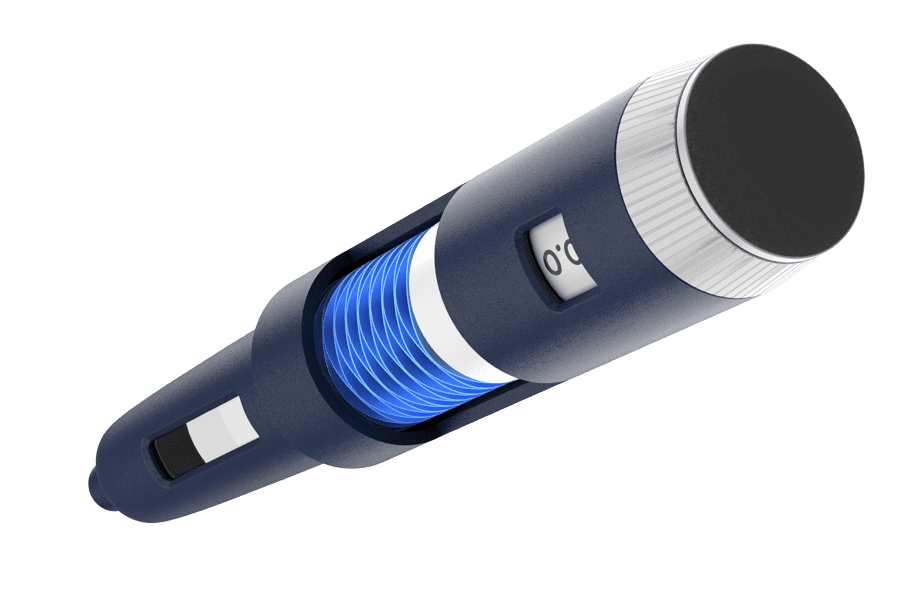

insulin injector pen with multi-turn wave spring

Injector Pen with Multi-Turn Wave Spring

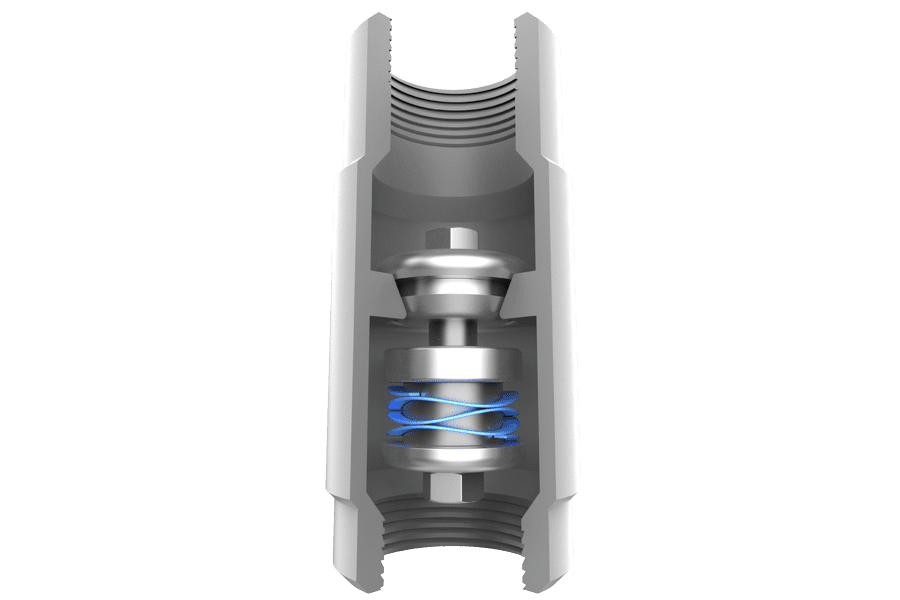

Multi-turn wave spring ensuring consistent closure force in a check valve.

Check Valve with Multi-Turn Wave Spring
