BSH-55
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial

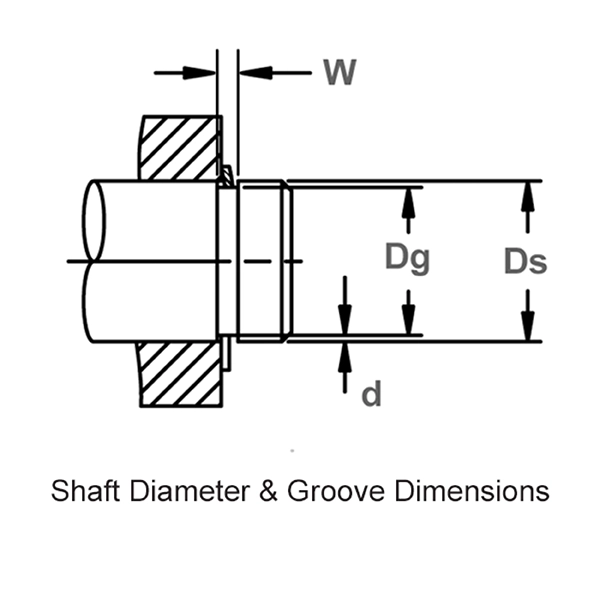

- Shaft Diameter Ds 0.551 inches
- Ds mm 14.000 mm
- Groove Diameter Dg 0.517 - 0.521 - inches
- Groove Width W 0.055 - 0.058 - inches
- Groove Depth D 0.016 inches
- Free Diameter Df 0.499 - 0.511 - inches
- Thickness T *** 0.033 - 0.037 - inches
- Lug Height H 0.105 - 0.111 - inches
- Maximum Section S Max 0.049 - 0.057 - inches
- Minimum Section S Min 0.032 - 0.040 - inches
- Hole Diameter R 0.045 - 0.057 - inches
- Bow Height Bh 0.056 - 0.070 - inches
- Weight Per 1000 Pcs. 0.900 lbs.
- Edge Margin Y Min. inches

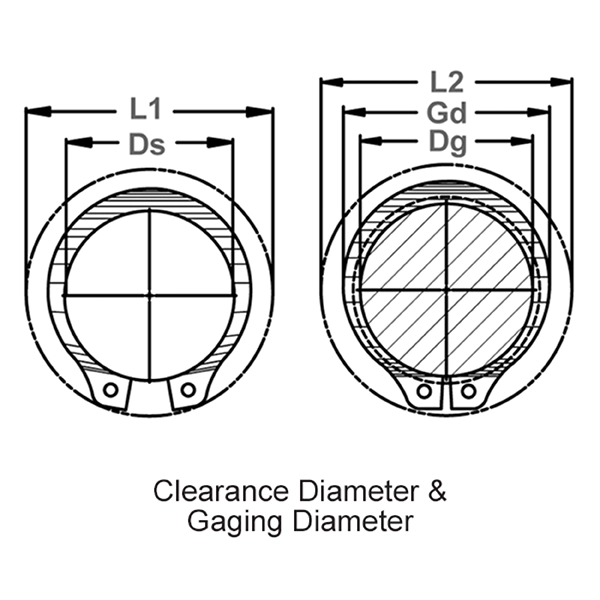

- Clearance Dia. Expanded Over Shaft L1 0.810 inches
- Clearance Dia. Released In Groove L2 0.780 inches
- Gaging Dia. Gd Max inches

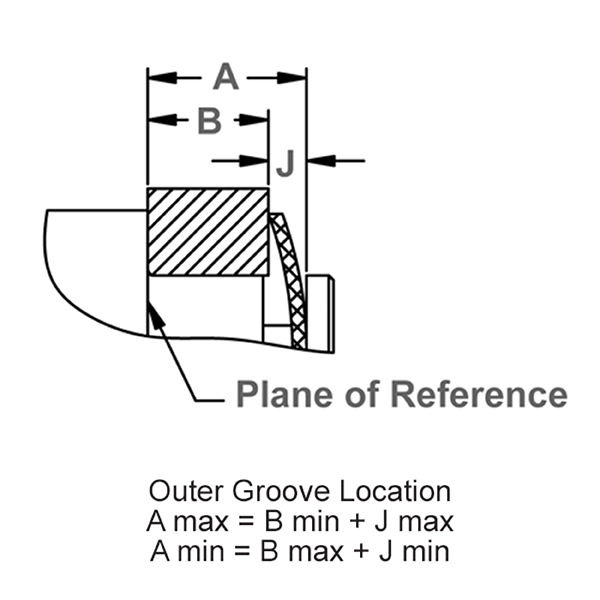

- Outer Groove Wall To Face Of Retained Part J Max 0.053 inches
- Outer Groove Wall To Face Of Retained Part J Min 0.042 inches
- Hardness ST 66.000 - 71.000 - HR30N
- Hardness SS 63.000 - 69.500 - HR30N
- Hardness BC 54.000 - 62.000 - HR30N
- Interchange Waldes Truarc 5101 55
- Interchange IRR 3101 55
- Interchange Anderton N1401 0055
- Interchange Mil Or Aero MS16628C 55
- Interchange Din
Performance Data
- Thrust Ld. (lbs.) Ring Safety Factor Of 4 Pr 1,827 lbs.
- Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg 600 lbs.
- R.P.M. Limits Standard Material RPM 36,000.000
- Resilient Take-Up Of Tolerances A & B 0.011 inches
- Force Needed To Flatten Rings 85.000 lbs.
Tool Data
- Standard Pliers (Straight) RP-200
- 45 Standard Pliers RP-204
- 90 Standard Pliers RP-209
- Convertible Pliers RP-120
- 45 Convertible Pliers RP-124
- 90 Convertible Pliers RP-129
- Heavy Duty Pliers (Straight) RPN-A0
- 90 Heavy Duty Pliers RPN-A01
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| BSH-55SS | Bowed External/Shaft | PH 15-7 Stainless Steel | None/Self Finish | Quote |
| BSH-55SS MPS | Bowed External/Shaft MS16628-4056 | PH 15-7 Stainless Steel | Military Passivation | Quote |
| BSH-55ST PD | Bowed External/Shaft | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| BSH-55ST ZD | Bowed External/Shaft | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| BSH-55ST ZF | Bowed External/Shaft | Carbon Steel SAE 1070-1090 | Zinc Flash | Quote |
| BSH-55ST MCD | Bowed External/Shaft MS16628-1056 | Carbon Steel SAE 1070-1090 | Military CAD Plating | Quote |
| BSH-55ST MPD | Bowed External/Shaft MS16628-3056 | Carbon Steel SAE 1070-1090 | Military Phosphate and Oil | Quote |
| BSH-55ST MZD | Bowed External/Shaft MS16628-2056 | Carbon Steel SAE 1070-1090 | Military Zinc Dichromate | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
- ZD - Zinc Dichromate, Carbon Steel
Documentation
Description
BSH retaining rings are axially assembled external circlips with a bowed profile and are part of Rotor Clip’s tapered section retaining ring line. Installed into a groove on a shaft, the bowed design applies a preload to compensate for accumulated tolerances and maintain external axial retention over the specified range.
