DSR-95
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial

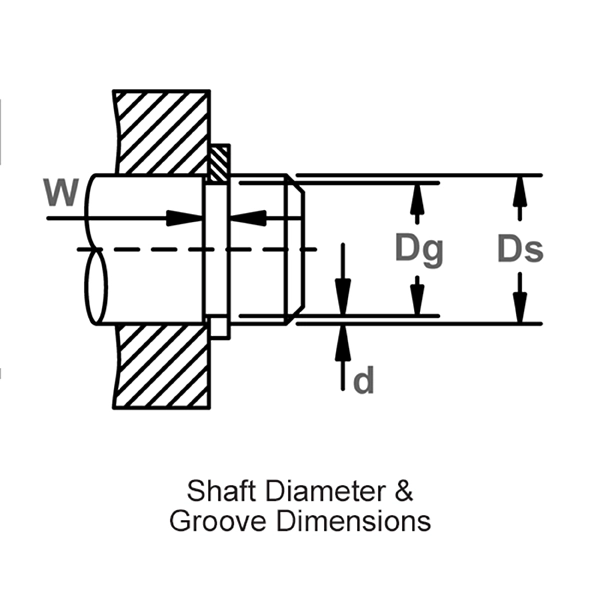

- Ds mm 95.000 mm
- Groove Diameter Dg 91.150 - 91.500 - mm
- Groove Width W 4.150 mm
- Groove Depth D 1.750 mm

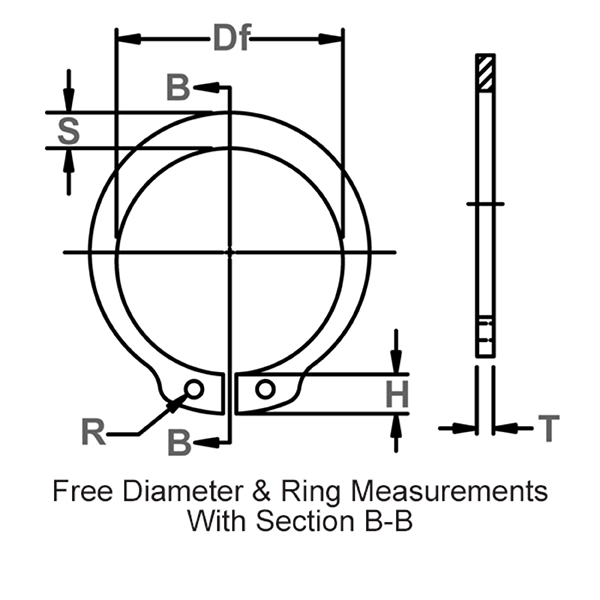

- Free Diameter Df 88.200 - 90.040 - mm
- Thickness T *** 3.900 - 4.000 - mm
- Lug Height H 10.200 mm
- Hole Diameter R 3.500 mm
- Large Sect. S 8.600 mm
- Weight Per 1000 Pcs. 61.200 kg

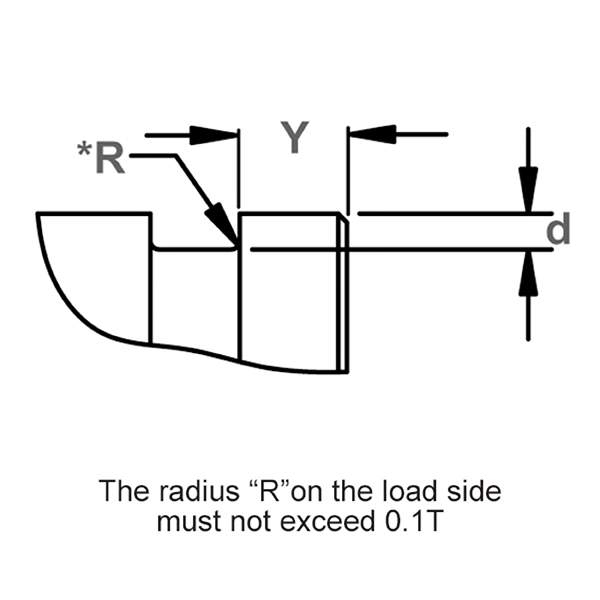

- Edge Margin Y Min. 5.300 mm

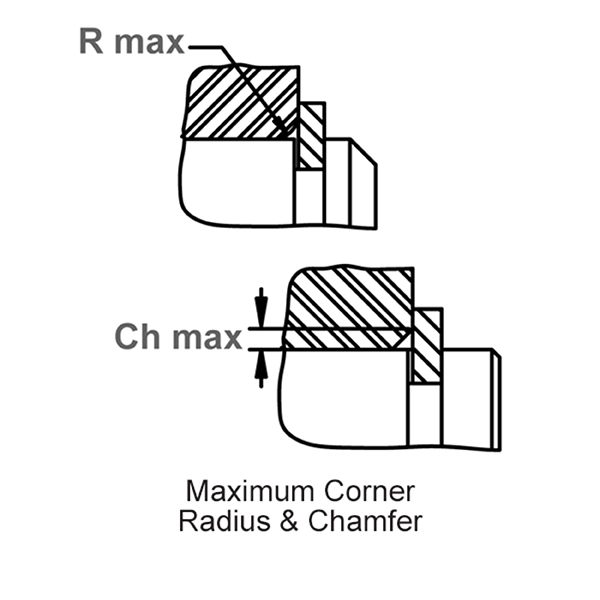

- Allowable Radius / Chamfer R/Ch Max, 3.500 mm
- Hardness ST 44.000 - 51.000 - HRC
- Hardness SG 47.000 - 54.000 - HRC
- Interchange Waldes Truarc
- Interchange IRR
- Interchange Anderton D1460 0950
- Interchange Mil Or Aero
- Interchange Din DIN 471 95x4.00
- Interchange Seeger-Orbis AS 95
Performance Data
- Thrust Load Ring Pr 378.000 kN
- Thrust Load Groove Pg 86.000 kN
- R.P.M. Limits Standard Material RPM 5,000.000
- Max. Load W/ R Max Or Ch Max PR 52.000 kN
Tool Data
- Ratchet Pliers (w/o Tips) RP-1000
- Straight Ratchet Pliers Tips RP-7801R
- 45 Ratchet Pliers Tips RP-7845R
- 90 Ratchet Pliers Tips RP-7890R
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
- Stainless Steel DIN 1.4122
- Phosphor Bronze
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
- ZD - Zinc Dichromate, Carbon Steel
Documentation
Description
DSR retaining rings are axially assembled external reinforced metric circlips and are part of Rotor Clip’s tapered section retaining ring family. As an extra thick version of the standard DSH retaining ring, the DSR provides increased strength and the ability to withstand significantly greater thrust loads. These rings deliver reinforced external axial retention for shaft-mounted assemblies subjected to higher forces.
