VSH-168
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial

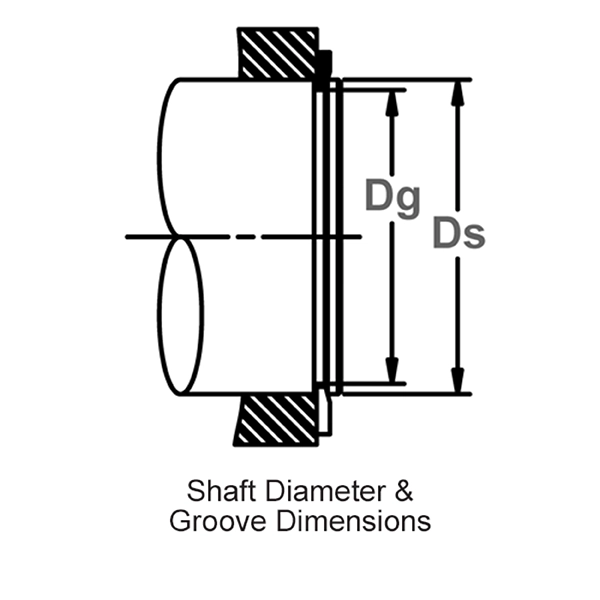

- Shaft Diameter Ds 1.688 inches
- Ds mm 42.900 mm
- Groove Diameter Dg 1.568 - 1.573 - inches
- Groove Width W 0.052 - 0.057 - inches
- Groove Depth D 0.057 inches

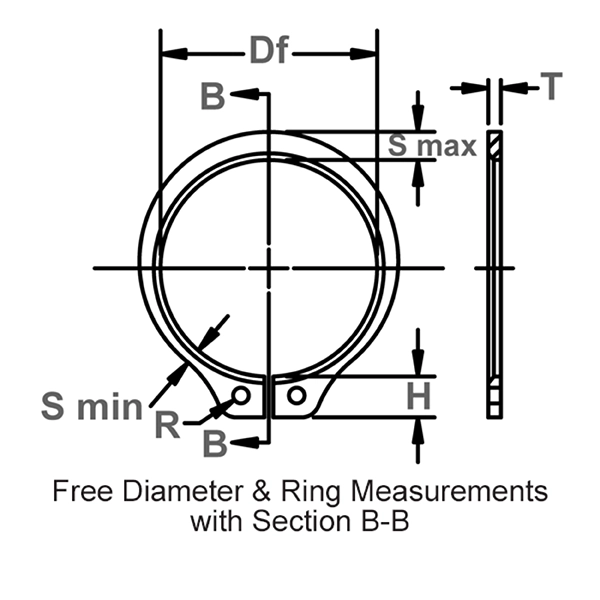

- Free Diameter Df 1.540 - 1.573 - inches
- Thickness T *** 0.057 - 0.067 - inches

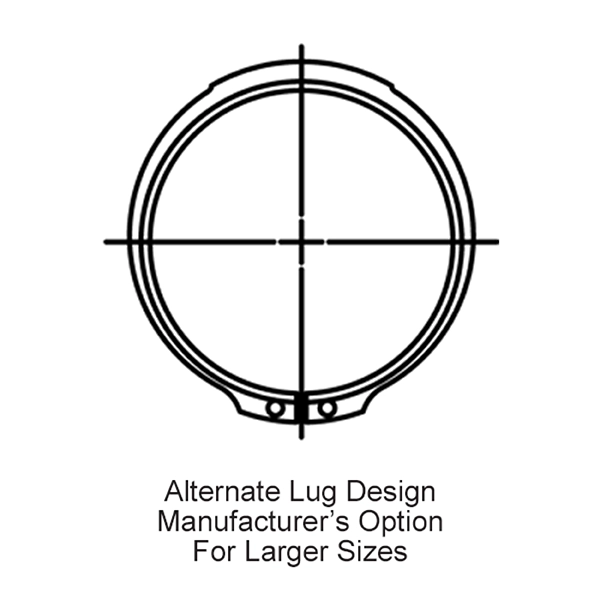

- Lug Height H 0.231 - 0.239 - inches
- Maximum Section S Max 0.178 - 0.190 - inches
- Minimum Section S Min 0.093 - 0.105 - inches
- Hole Diameter R 0.123 - 0.140 - inches
- Thickness Beveled End U 0.047 - 0.049 - inches
- Weight Per 1000 Pcs. 14.800 lbs.

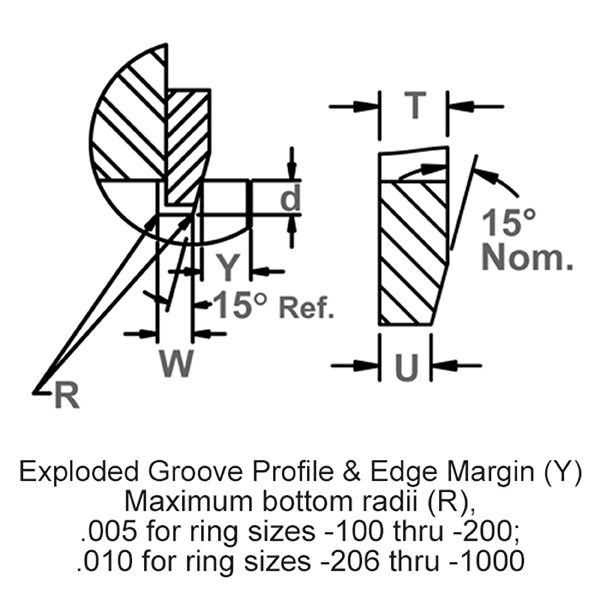

- Edge Margin Y Min. 0.085 inches

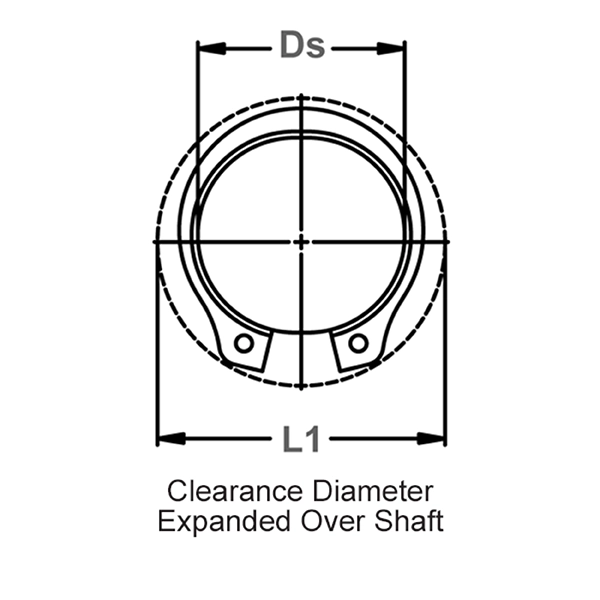

- Clearance Dia. Expanded Over Shaft L1 2.240 inches
- Clearance Dia. Released In Groove L2 2.200 inches
- Gaging Dia. Gd Max 1.912 inches
- Hardness ST 47.000 - 52.000 - HRC
- Hardness SS 44.000 - 51.000 - HRC
- Hardness BC 37.000 - 43.000 - HRC
- Interchange Waldes Truarc 5102 168
- Interchange IRR
- Interchange Anderton N1402 0168
- Interchange Mil Or Aero MS16630C 168
- Interchange Din
Performance Data
- Thrust Ld. (lbs.) Ring Safety Factor Of 4 Pr 12,535 lbs.
- Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg 3,400 lbs.
- Rigid End Play Take-Up 0.008 inches
Tool Data
- Standard Pliers (Straight) RP-600
- 45 Standard Pliers RP-604
- 90 Standard Pliers RP-609
- Ratchet Pliers (w/o Tips) RP-28R
- Straight Ratchet Pliers Tips RP-5009R
- 45 Ratchet Pliers Tips RP-5012R
- 90 Ratchet Pliers Tips RP-5013R
- Convertible Pliers RP-560
- 45 Convertible Pliers RP-564
- 90 Convertible Pliers RP-569
- Heavy Duty Pliers (Straight) RPN-A3
- 90 Heavy Duty Pliers RPN-A31
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| VSH-168ST PD | External/Shaft Beveled | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| VSH-168ST ZD | External/Shaft Beveled | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| VSH-168ST MCD | External/Shaft Beveled MS16630-1168 | Carbon Steel SAE 1070-1090 | Military CAD Plating | Quote |
| VSH-168ST MPD | External/Shaft Beveled MS16630-3168 | Carbon Steel SAE 1070-1090 | Military Phosphate and Oil | Quote |
| VSH-168ST MZD | External/Shaft Beveled MS16630-2168 | Carbon Steel SAE 1070-1090 | Military Zinc Dichromate | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description
VSH retaining rings are axially assembled external beveled retaining rings and are part of Rotor Clip’s tapered section retaining ring line. Similar in appearance to standard SH rings, VSH rings feature a 15° beveled inner edge that wedges between the groove and the retained component when installed in a complementary angled groove, eliminating endplay and providing external axial retention.
