VHO-354SP1
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial

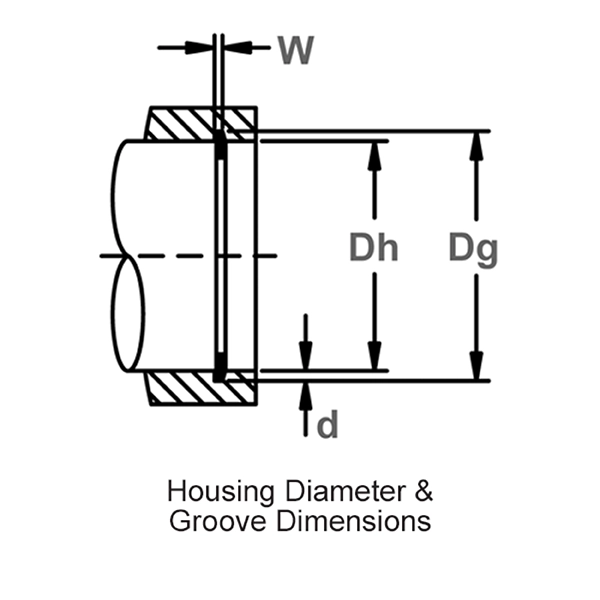

- Housing Dia. Dh 3.562 inches
- Dh mm 90.500 mm
- Groove Diameter Dg 3.830 - 3.836 - inches
- Groove Width W 0.089 - 0.097 - inches
- Groove Depth D 0.134 inches
- Free Diameter Df 3.881 - 3.991 - inches
- Thickness T *** 0.104 - 0.114 - inches
- Lug Height H 0.334 - 0.350 - inches
- Maximum Section S Max 0.284 - 0.300 - inches
- Minimum Section S Min 0.134 - 0.150 - inches
- Hole Diameter R 0.123 - 0.140 - inches
- Thickness Beveled End U 0.080 - 0.085 - inches
- Weight Per 1000 Pcs. 72.000 lbs.
- Edge Margin Y Min. 0.201 inches

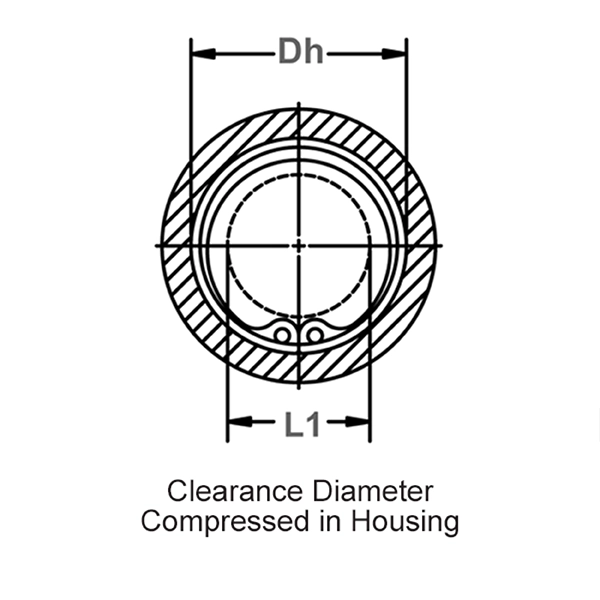

- Clearance Dia. Compressed In Housing L1 2.850 inches
- Clearance Dia. Released In Groove L2 2.970 inches
- Gap Width Ring In Groove G 0.643 inches
Performance Data
- Thrust Ld. (lbs.) Ring Safety Factor Of 4 Pr 55,419 lbs.
- Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg 55,419 lbs.
- Rigid End Play Take-Up 0.018 inches
Tool Data
- Ratchet Pliers (w/o Tips) RP-27R
- Straight Ratchet Pliers Tips RP-5009R
- 45 Ratchet Pliers Tips RP-5012R
- 90 Ratchet Pliers Tips RP-5013R
- Alternative Ratchet Pliers (w/o Tips) RP-900
- Tips For Alt. Ratchet Pliers (Strt/45/90) RP-7801R RP-7845R RP-7890R
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description

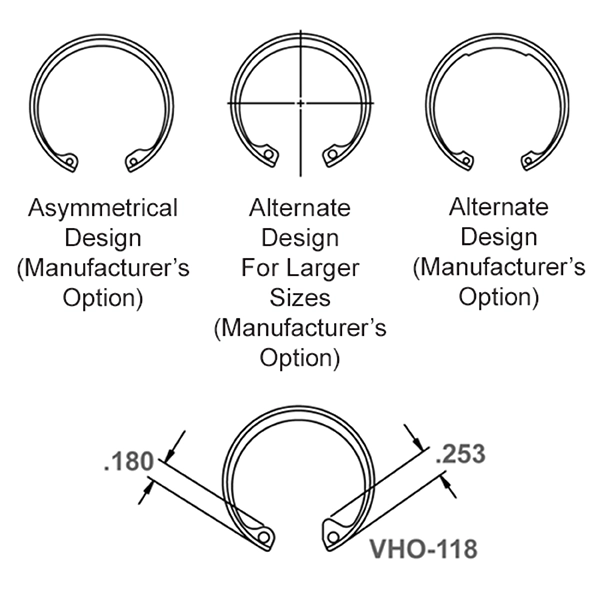

VHO retaining rings are axially assembled internal beveled retaining rings and are part of Rotor Clip’s tapered section retaining ring family. Similar in appearance to standard HO rings, VHO rings feature a 15° beveled outer edge that wedges between the groove and the retained part when installed in a complementary angled groove, eliminating endplay and providing internal axial retention.
