SHF-9
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial

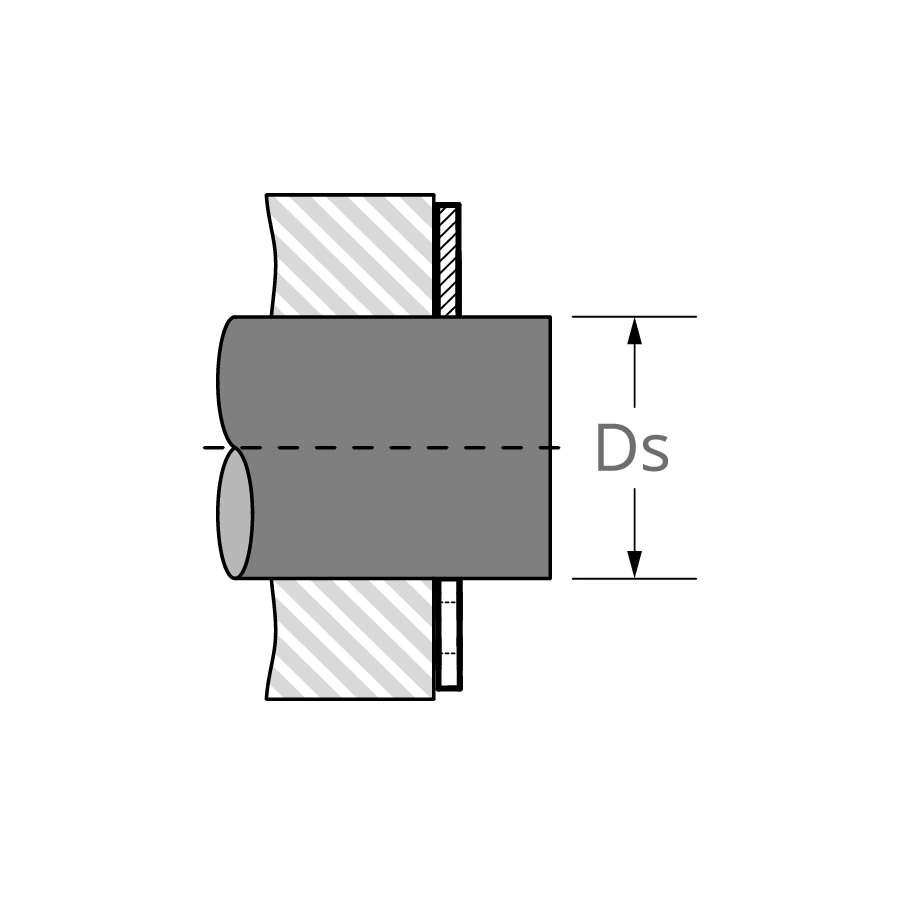

- Shaft Diameter Ds 0.092 - 0.096 - inches
- Ds mm 2.400 mm
- Groove Diameter Dg inches
- Groove Width W inches
- Groove Depth D inches

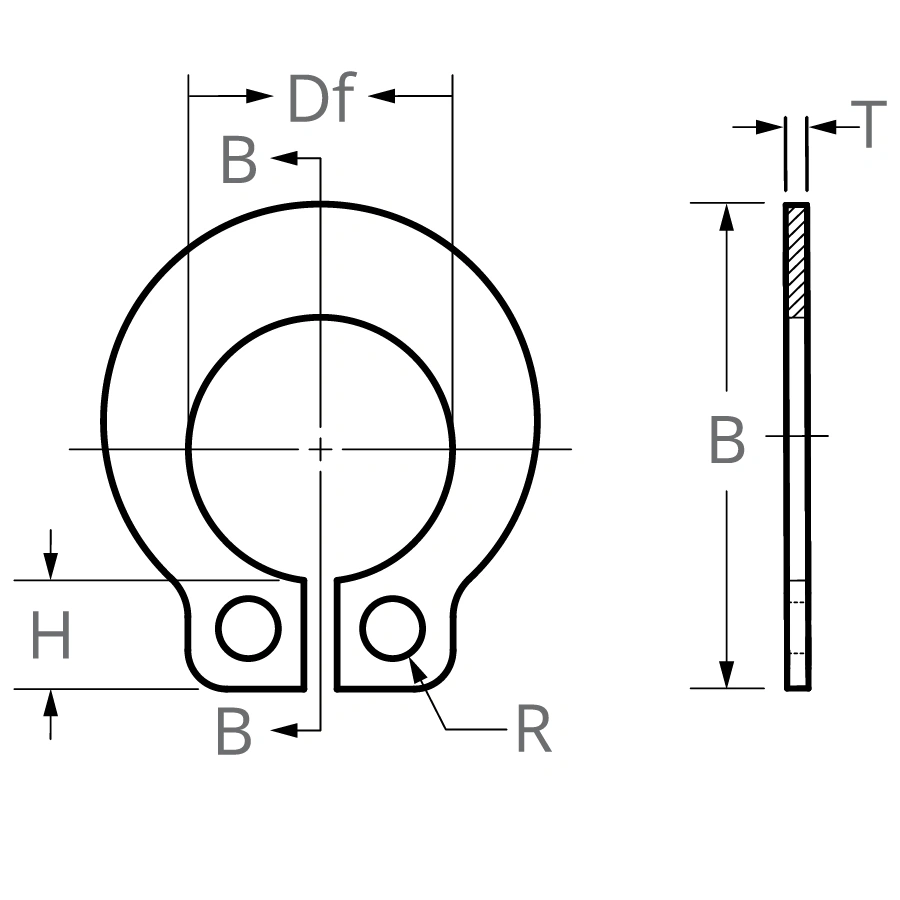

- Free Diameter Df 0.086 - 0.091 - inches
- Thickness T *** 0.023 - 0.027 - inches
- Lug Height H 0.071 - 0.077 - inches
- Hole Diameter R 0.030 - 0.038 - inches
- Ring Height B 0.207 inches
- Weight Per 1000 Pcs. 0.100 lbs.
- Edge Margin Y Min. inches
- Clearance Released Over Shaft L2 0.260 inches
- Hardness ST 83.500 - 86.000 - HR15N
- Hardness SS 82.500 - 86.000 - HR15N
- Hardness BC 77.000 - 82.000 - HR15N
- Interchange Waldes Truarc 5555 9
- Interchange IRR 7100 9
- Interchange Anderton N1440 0009
- Interchange Mil Or Aero MS90707C 9
- Interchange Din
Performance Data
- Allowable Thrust Load Pr 8.000 lbs.
- Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg
- R.P.M. Limits Standard Material RPM
Tool Data
- Heavy Duty Pliers (Straight) RPN-G0
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| SHF-9SS | External/Shaft Self Locking | PH 15-7 Stainless Steel | None/Self Finish | Quote |
| SHF-9SS MPS | External/Shaft Self Locking MS90707-4009 | PH 15-7 Stainless Steel | Military Passivation | Quote |
| SHF-9ST PD | External/Shaft Self Locking | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| SHF-9ST ZD | External/Shaft Self Locking | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| SHF-9ST ZF | External/Shaft Self Locking | Carbon Steel SAE 1070-1090 | Zinc Flash | Quote |
| SHF-9ST MCD | External/Shaft Self Locking MS90707-1009 | Carbon Steel SAE 1070-1090 | Military CAD Plating | Quote |
| SHF-9ST MPD | External/Shaft Self Locking MS90707-3009 | Carbon Steel SAE 1070-1090 | Military Phosphate and Oil | Quote |
| SHF-9ST MZD | External/Shaft Self Locking MS90707-2009 | Carbon Steel SAE 1070-1090 | Military Zinc Dichromate | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
- ZD - Zinc Dichromate, Carbon Steel
Documentation
Description
SHF retaining rings are external self-locking friction circlips. While the SHF resembles a regular SH ring, it is designed to function on a shaft without a groove. The design allows the circlip to exert significant gripping power uniformly on the shaft to provide secure axial retention.
