SHC-81
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial

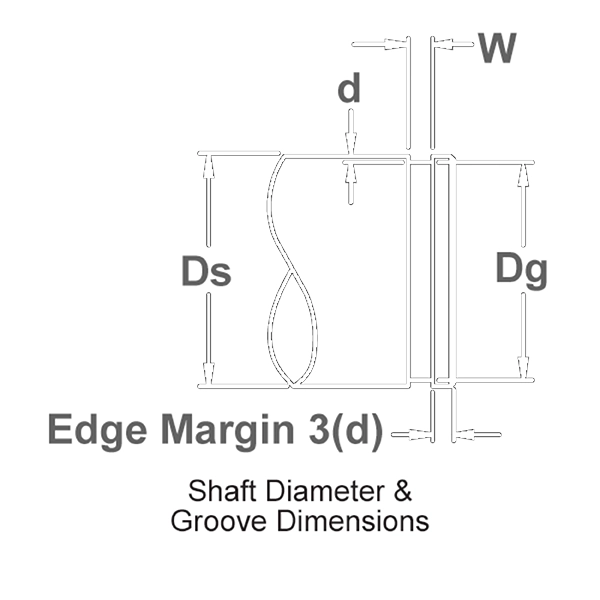

- Shaft Diameter Ds 0.812 inches
- Ds mm 20.600 mm
- Groove Diameter Dg 0.763 - 0.769 - inches
- Groove Width W 0.098 - 0.102 - inches
- Groove Depth D 0.023 inches

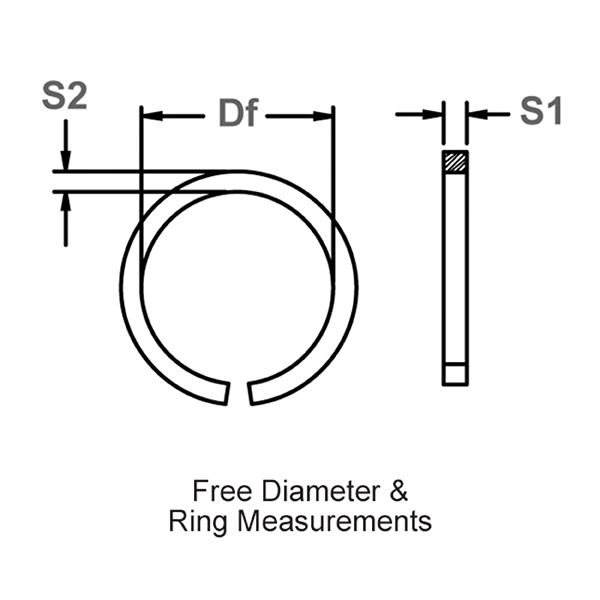

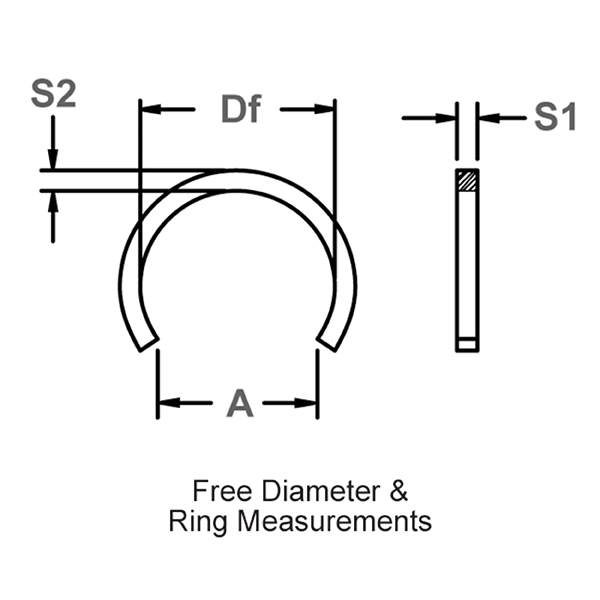

- Free Diameter Df 0.724 - 0.759 - inches
- Wire Radial Thickness S1 0.091 - 0.095 - inches
- Wire Radial Wall S2 0.088 - 0.098 - inches
- Hardness ST 46.000 - 53.000 - HRC
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
