RLC-62
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data

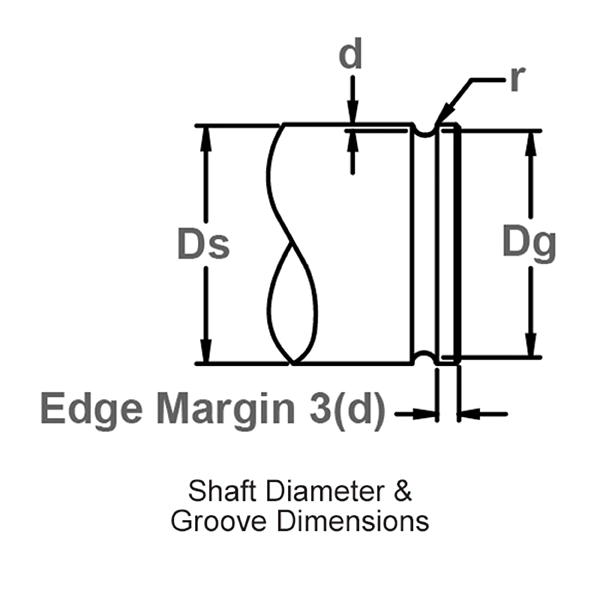

- Housing or Shaft Shaft
- Axial or Radial Axial
- Shaft Diameter Ds 0.625 inches
- Ds mm 15.900 mm
- Groove Diameter Dg 0.593 - 0.596 - inches
- Groove Depth D 0.016 inches
- Free Diameter Df 0.562 - 0.587 - inches
- Wire Section P 0.051 inches
- Groove Radius R 0.027 - 0.029 - inches
- Hardness ST 46.000 - 53.000 - HRC
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
