MST-591
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Clings In Housing Diameter Dh 150.000 mm
- Shaft Diameter Clearance Ds 136.400 mm
- Section S 5.900 mm
- Thickness T 0.800 mm

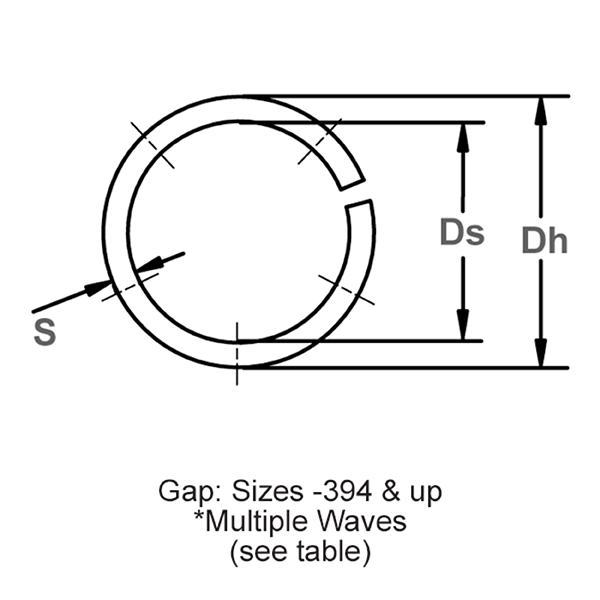

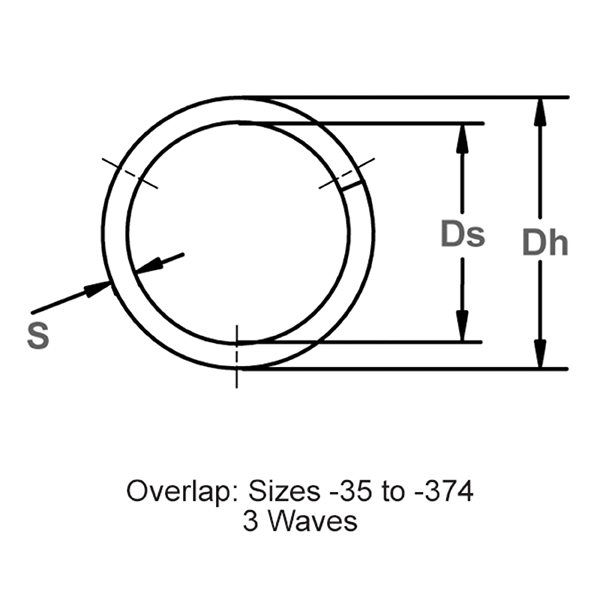

- Wave Spring Design Gap Design. Patented Optional Flat End Available.
- Free Height Fh 8.000 mm
- Number Of Waves 6.000
- Number Of Turns 1.000
- Work Height WH 3.180 mm
- Spring Rate (Ref) 87.000 N/mm
Performance Data
- Load 405 N
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
- Stainless Steel (17-7 PH/C)
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
- SPP - Passivate, Stainless Steel
- Vapor Degreased & Ultrasonic (Stainless Finish), Stainless Steel
- ETM - Vibratory Deburr, Stainless Steel
Documentation
Description
Single Turn, Metric. Ideal for short deflection applications with low to medium forces. Offered in a number of waves and material thicknesses. Designed for a wide range of bore and rod diameters.
