MKA-102
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial
- Dh mm 102.000 mm
- Groove Diameter Dg 105.000 - 105.300 - mm
- Groove Width W 1.730 - 1.860 - mm

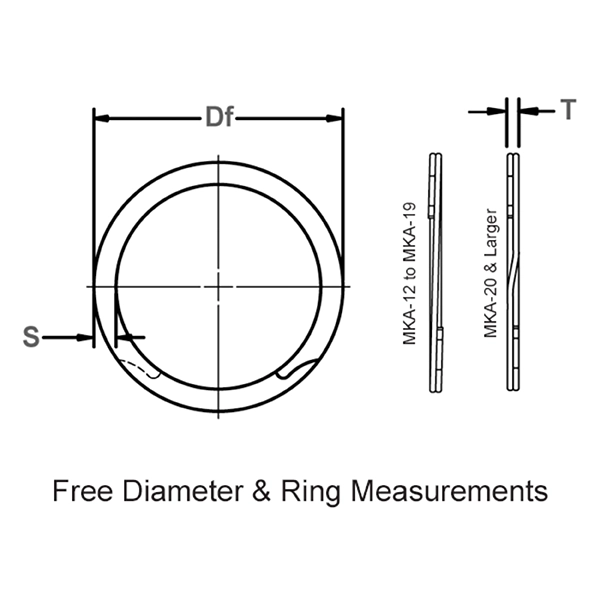

- Free Diameter Df 106.000 - 106.760 - mm
- Section S 5.400 - 5.600 - mm
- Thickness T 1.500 - 1.600 - mm
- Interchange Mil Or Aero
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 143,730.000 N
- Thrust Load Groove Safety Factor Of 2 Pg 78,490.000 N
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| MKA-102SJ | Metric Spiral Aerospace Internal/Housing | 302 Stainless | None/Self Finish | Quote |
| MKA-102SJ SPA ND MP3 | Metric Spiral Aerospace Internal/Housing MA4017-102 | 302 Stainless | NADCAP Certified Finishing Process Passivation | Quote |
| MKA-102ST OIL | Metric Spiral Aerospace Internal/Housing | Carbon Steel SAE 1070-1090 | Oil | Quote |
| MKA-102SU | Metric Spiral Aerospace Internal/Housing | 316 Stainless | None/Self Finish | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
MKA retaining rings are internal aerospace metric spiral rings and are part of Rotor Clip’s spiral retaining ring family. These rings feature dimensions that conform to the metric aerospace specification MA 4017.
