MC-6
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Radial

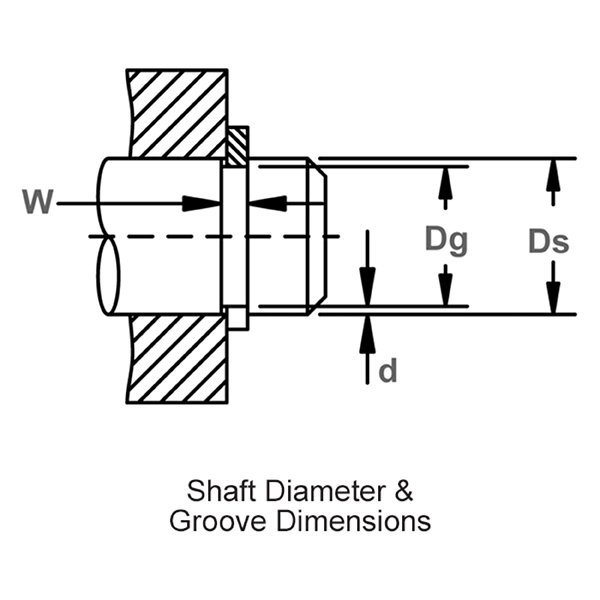

- Shaft Diameter Ds 0.236 inches
- Ds mm 6.000 mm
- Groove Diameter Dg 4.930 - 5.000 - mm
- Groove Width W 0.700 - 0.850 - mm
- Groove Depth D 0.500 mm
- Free Diameter Df 4.720 - 4.880 - mm
- Thickness T *** 0.540 - 0.660 - mm
- Maximum Section S Max 1.300 mm
- Outside Diameter G 7.400 mm

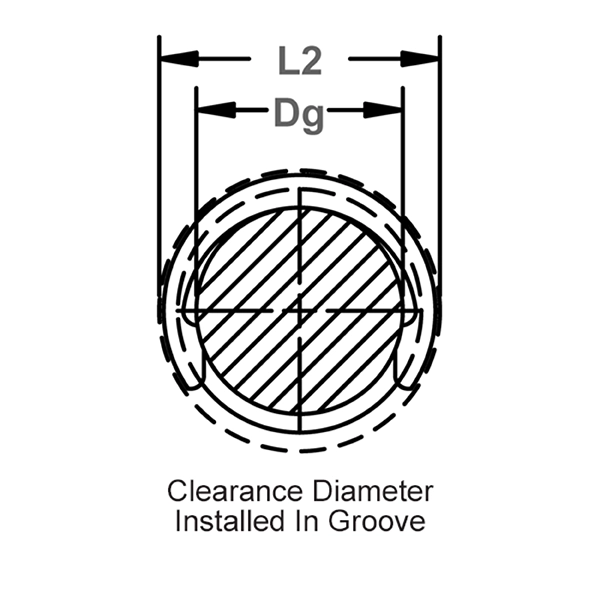

- Clearance Dia. Installed In Groove L2 7.800 mm
- Weight Per 1000 Pcs. 0.100 kg

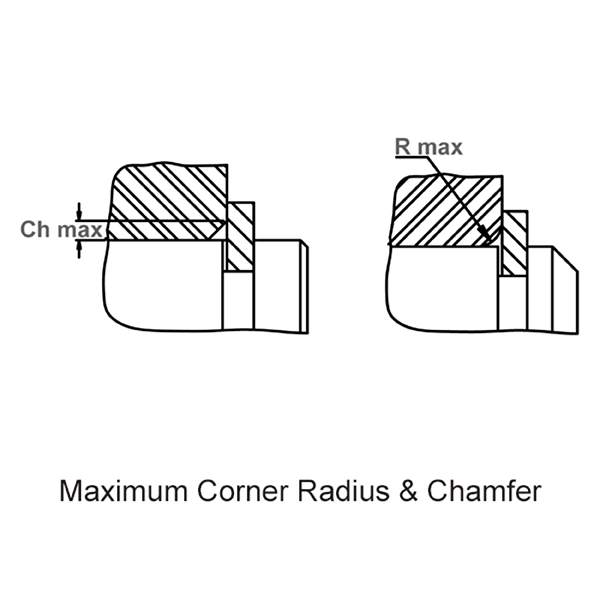

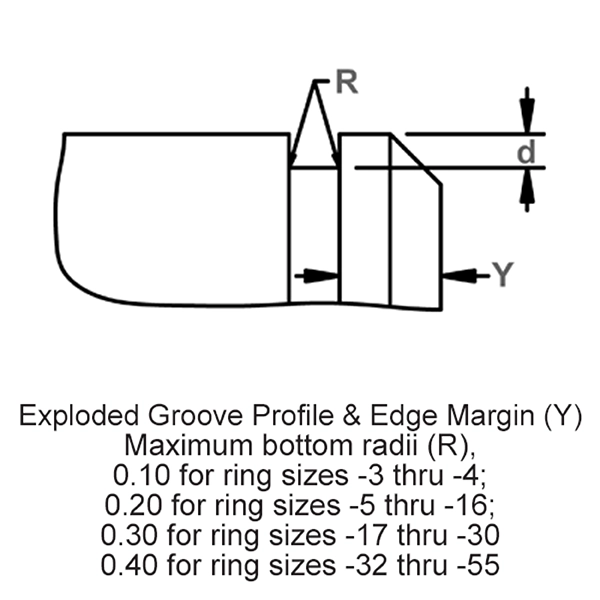

- Edge Margin Y Min. mm
- Hardness ST 66.000 - 69.500 - HR30N
- Hardness SS 63.000 - 69.500 - HR30N
- Interchange Waldes Truarc 11-410 0060
- Interchange IRR
- Interchange Anderton
- Interchange Mil Or Aero
- Interchange Din
Performance Data
- Thrust Ld. (lbs.) Ring Safety Factor Of 4 Pr 1.100 kN
- Thrust Load Groove Safety Factor Of 2 Pg 0.700 kN
- R.P.M. Limits Standard Material RPM 80,000.000
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| MC-6ST PD | Metric External/Shaft Crescent | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| MC-6ST ZD | Metric External/Shaft Crescent | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| MC-6ST ZF | Metric External/Shaft Crescent | Carbon Steel SAE 1070-1090 | Zinc Flash | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description
MC retaining rings are radially assembled external ANSI metric circlips and are part of Rotor Clip’s radial retaining ring line. Named for their characteristic "C" shape, these crescent-style rings feature a shallow radial width. This design is effective for low clearance applications where radial installation is preferred.
