KLM-62
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial

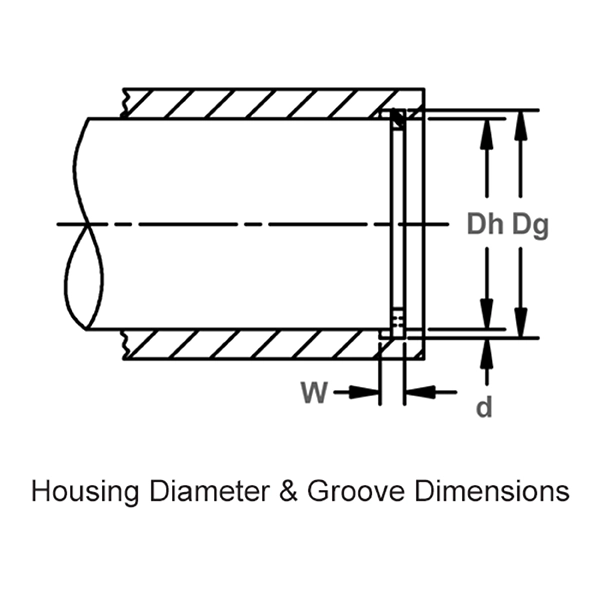

- Dh mm 62.000 mm
- Groove Diameter Dg 63.790 - 64.090 - mm
- Groove Width W 0.990 - 1.070 - mm

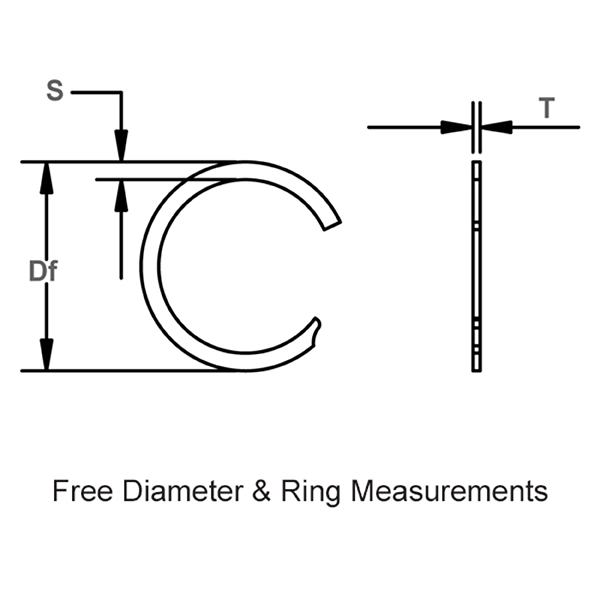

- Free Diameter Df 64.670 - 65.310 - mm
- Section S 3.900 - 4.100 - mm
- Thickness T 0.700 - 0.800 - mm
- Interchange Mil Or Aero
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 44.560 N
- Thrust Load Groove Safety Factor Of 2 Pg 29.000 N
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| KLM-62SJ | Metric Spiral Internal/Housing Light Duty | 302 Stainless | None/Self Finish | Quote |
| KLM-62ST OIL | Metric Spiral Internal/Housing Light Duty | Carbon Steel SAE 1070-1090 | Oil | Quote |
| KLM-62SU | Metric Spiral Internal/Housing Light Duty | 316 Stainless | None/Self Finish | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
KLM retaining rings are internal light-duty metric single-turn spiral rings and are part of Rotor Clip’s spiral retaining ring family. These rings provide efficient internal axial retention for light-duty metric applications.
