KG-1225
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial
- Housing Dia. Dh 12.250 inches
- Groove Diameter Dg 12.791 - 12.811 - inches
- Groove Width W 0.209 - 0.217 - inches

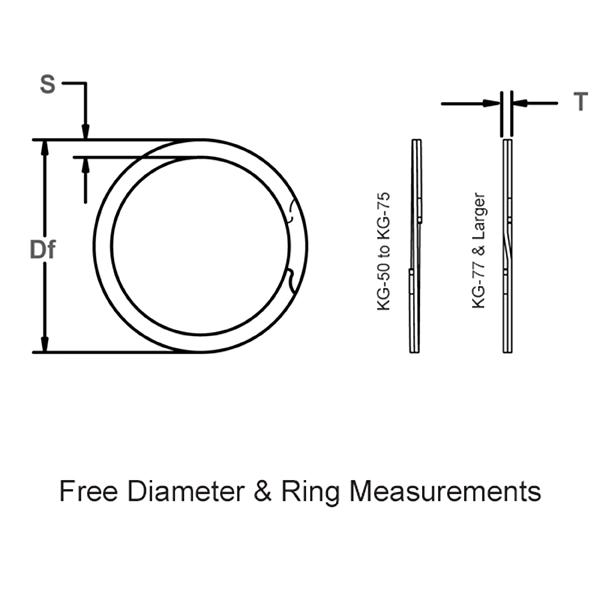

- Free Diameter Df 12.891 - 13.011 - inches
- Section S 0.547 - 0.567 - inches
- Thickness T 0.182 - 0.192 - inches
- Interchange Mil Or Aero M274264 201
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 287,860 lbs.
- Thrust Load Groove Safety Factor Of 2 Pg 238,990 lbs.
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| KG-1225SJ | Spiral Internal/Housing Heavy Duty | 302 Stainless | None/Self Finish | Quote |
| KG-1225SJ SPA ND MP3 | Spiral Internal/Housing Heavy Duty AS3215-201 | 302 Stainless | NADCAP Certified Finishing Process Passivation | Quote |
| KG-1225ST OIL | Spiral Internal/Housing Heavy Duty | Carbon Steel SAE 1070-1090 | Oil | Quote |
| KG-1225SU | Spiral Internal/Housing Heavy Duty | 316 Stainless | None/Self Finish | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
KG retaining rings are internal heavy-duty spiral rings and are part of Rotor Clip’s spiral retaining ring family. These two-turn rings provide 360° groove contact and are designed for applications requiring internal axial retention under high thrust loads.
