DST-16
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial
- Ds mm 16.000 mm
- Groove Diameter Dg 15.090 - 15.200 - mm
- Groove Width W 1.100 mm
- Groove Depth D 0.400 mm
- Free Diameter Df 14.340 - 14.800 - mm
- Thickness T *** 0.940 - 1.000 - mm
- Lug Height H 3.500 mm
- Hole Diameter R 1.700 mm
- Large Sect. S 2.300 mm
- Weight Per 1000 Pcs. 0.800 kg

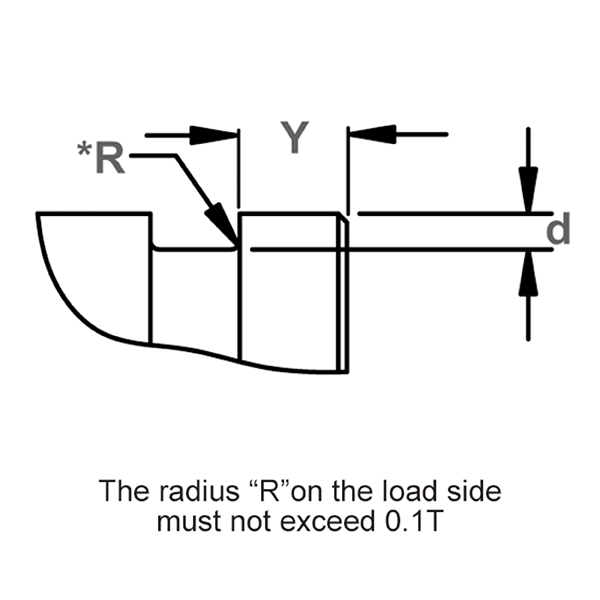

- Edge Margin Y Min. 1.200 mm

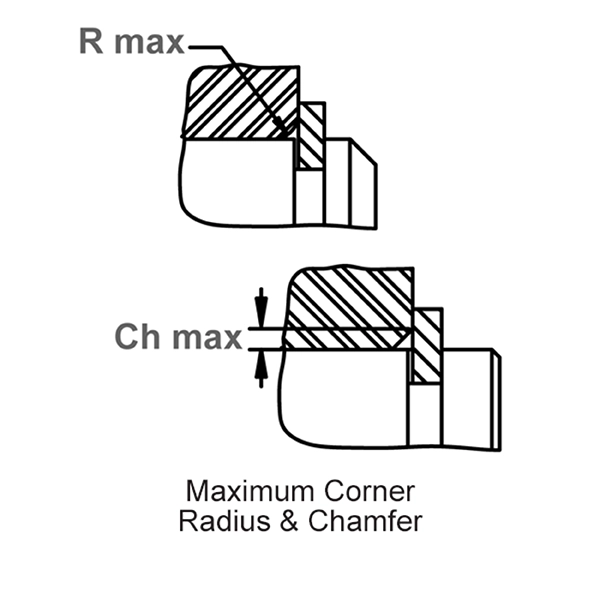

- Allowable Radius / Chamfer R/Ch Max, 1.000 mm
- Hardness ST 66.000 - 72.000 - HR30N
- Hardness SG 66.000 - 72.000 - HR30N
- Interchange Waldes Truarc
- Interchange IRR
- Interchange Anderton D2100 0160
- Interchange Mil Or Aero
- Interchange Din DIN 983 16x1.00
- Interchange Seeger-Orbis AK 16
Performance Data
- Thrust Load Ring Pr 7.400 kN
- Thrust Load Groove Pg 3.300 kN
- R.P.M. Limits Standard Material RPM 45,000.000
- Max. Load W/ R Max Or Ch Max PR 2.400 kN
Tool Data
- Standard Pliers (Straight) RPA-1
- 45 Standard Pliers RPA-145
- 90 Standard Pliers RPA-190
- Convertible Pliers RP-320
- 45 Convertible Pliers RP-324
- 90 Convertible Pliers RP-329
- Heavy Duty Pliers (Straight) RPN-A1
- 90 Heavy Duty Pliers RPN-A11
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| DST-16ST PD | DIN 983 External/Shaft With Teeth | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
- Stainless Steel DIN 1.4122
- Phosphor Bronze
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description
DST retaining rings are axially assembled external metric circlips with teeth and are part of Rotor Clip’s tapered section retaining ring family. Similar in design to the DSH external ring, the DST features several teeth equally distributed along the circumference of the ring. This feature creates an increased shoulder that is particularly effective for retaining parts with large radii or chamfers on a shaft.
