DKR-270
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial

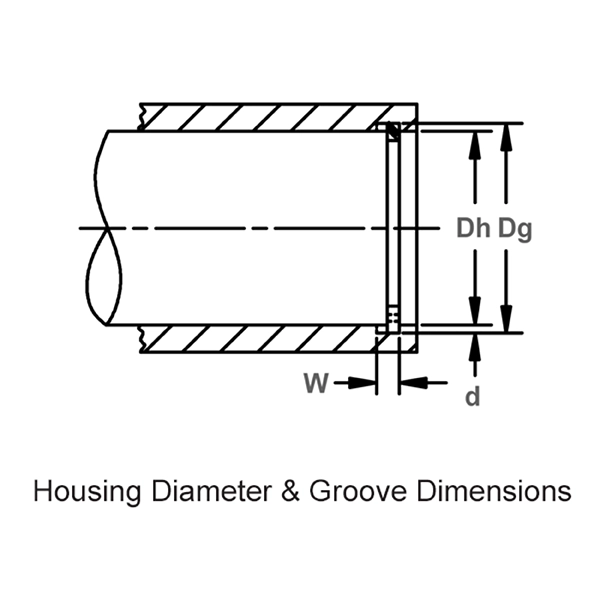

- Dh mm 270.000 mm
- Groove Diameter Dg 278.000 - 278.810 - mm
- Groove Width W 5.150 - 5.330 - mm

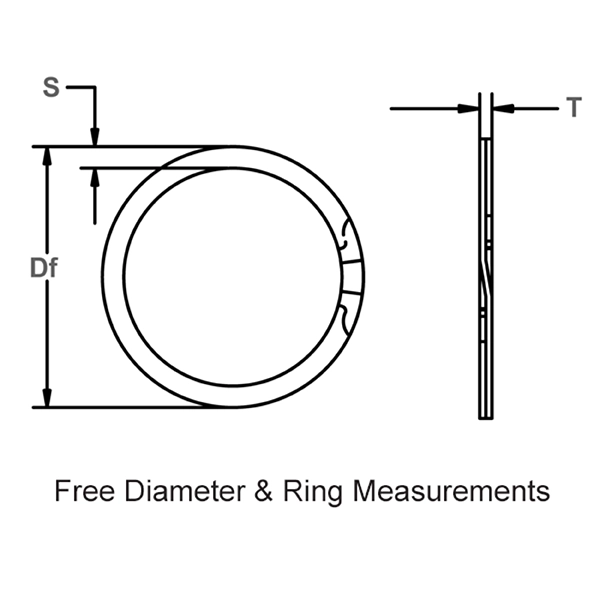

- Free Diameter Df 280.010 - 281.790 - mm
- Section S 11.000 - 11.300 - mm
- Thickness T 4.700 - 5.000 - mm
- Interchange Mil Or Aero
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 1,136,916.000 N
- Thrust Load Groove Safety Factor Of 2 Pg 526,351.000 N
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| DKR-270SJ | Spiral DIN 471 Multi Internal/Housing Heavy Duty Multi turn | 302 Stainless | None/Self Finish | Quote |
| DKR-270ST OIL | Spiral DIN 471 Multi Internal/Housing Heavy Duty Multi turn | Carbon Steel SAE 1070-1090 | Oil | Quote |
| DKR-270SU | Spiral DIN 471 Multi Internal/Housing Heavy Duty Multi turn | 316 Stainless | None/Self Finish | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
DKR retaining rings are internal heavy-duty DIN spiral rings and are part of Rotor Clip’s spiral retaining ring family. These two-turn spiral rings are designed for applications with high thrust loads and are manufactured to fit into a groove established by DIN specifications.
