DHO-31
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial
- Dh mm 31.000 mm
- Groove Diameter Dg 32.700 - 32.950 - mm
- Groove Width W 1.300 mm
- Groove Depth D 0.850 mm

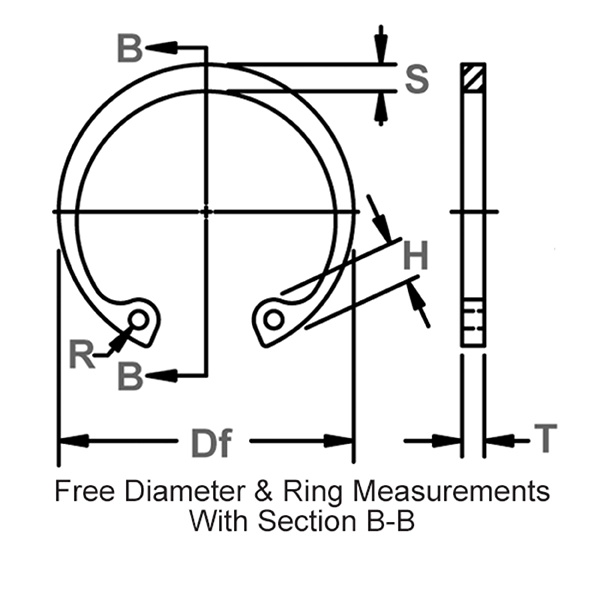

- Free Diameter Df 33.150 - 33.900 - mm
- Thickness T *** 1.140 - 1.200 - mm
- Lug Height H 5.200 mm
- Hole Diameter R 2.500 mm
- Large Sect. S 3.100 mm
- Weight Per 1000 Pcs. 2.100 kg
- Edge Margin Y Min. 2.600 mm

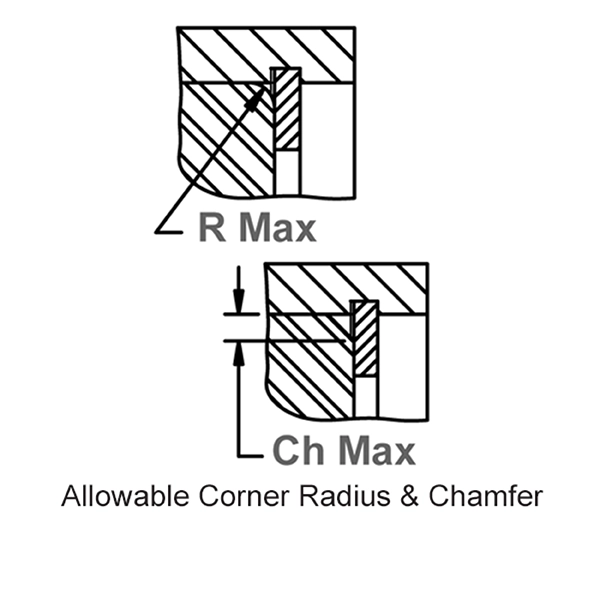

- Allowable Radius / Chamfer R/Ch Max, 1.000 mm
- Hardness ST 47.000 - 54.000 - HRC
- Hardness SS 44.000 - 51.000 - HRC
- Hardness SG 47.000 - 54.000 - HRC
- Interchange Waldes Truarc
- Interchange IRR
- Interchange Anderton D1300 0310
- Interchange Mil Or Aero
- Interchange Din DIN 472 31x1.20
- Interchange Seeger-Orbis J 31
Performance Data
- Thrust Load Ring Pr 13.800 kN
- Thrust Load Groove Pg 14.100 kN
- Max. Load W/ R Max Or Ch Max PR 4.700 kN
Tool Data
- Standard Pliers (Straight) RPI-3
- 45 Standard Pliers RPI-345
- 90 Standard Pliers RPI-390
- Heavy Duty Pliers (Straight) RPN-J2
- 90 Heavy Duty Pliers RPN-J21
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| DHO-31SG | DIN 471 Internal/Housing | DIN 1.4122 Stainless | None/Self Finish | Quote |
| DHO-31SS | DIN 471 Internal/Housing | PH 15-7 Stainless Steel | None/Self Finish | Quote |
| DHO-31ST PD | DIN 471 Internal/Housing | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| DHO-31ST Z3X | DIN 471 Internal/Housing | Carbon Steel SAE 1070-1090 | Trivalent Zinc | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
- Stainless Steel DIN 1.4122
- Phosphor Bronze
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description
DHO retaining rings are axially assembled internal metric circlips and are part of Rotor Clip’s tapered section retaining ring family. Installed into a groove in a housing/bore, the protruding shoulder retains components by preventing axial movement along the bore.
