DCR-170
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial
- Shaft Diameter Ds 170.000 mm

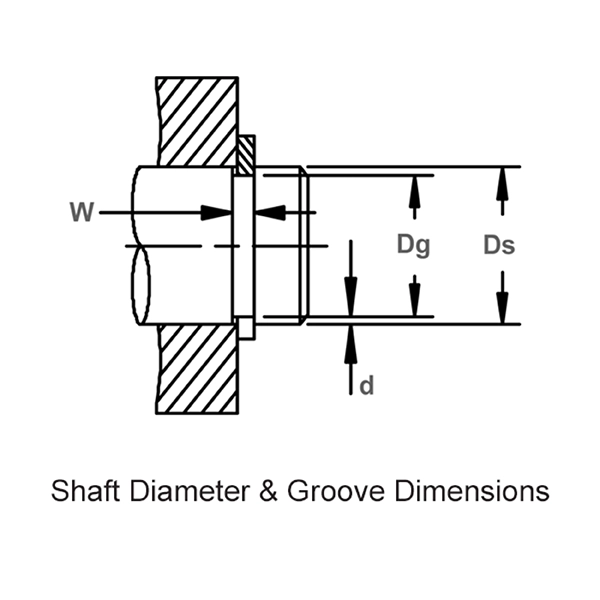

- Groove Diameter Dg 164.370 - 165.000 - mm
- Groove Width W 4.150 - 4.330 - mm
- Groove Depth D 2.500 mm

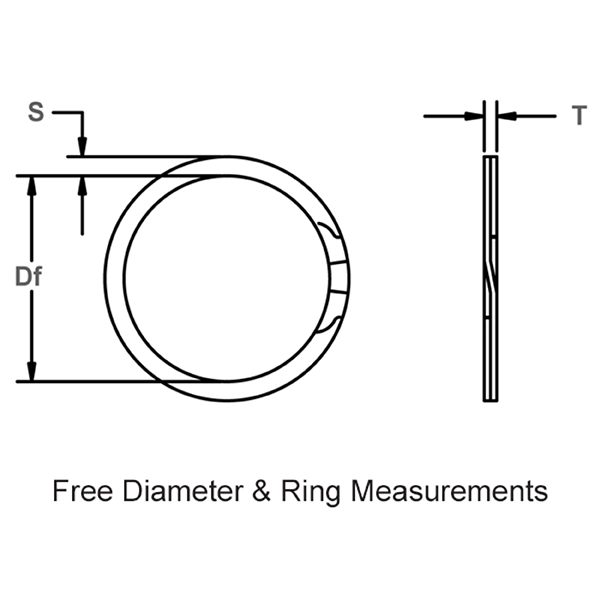

- Free Diameter Df 162.230 - 163.750 - mm
- Section S 7.800 - 8.100 - mm
- Thickness T 3.800 - 4.000 - mm
- Interchange Mil Or Aero
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 572,964.000 N
- Thrust Load Groove Safety Factor Of 2 Pg 207,129.000 N
- R.P.M. Limits Standard Material RPM 715.000
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| DCR-170SJ | DIN 471 Metric Spiral External/Shaft Heavy Duty Multi turn | 302 Stainless | None/Self Finish | Quote |
| DCR-170ST OIL | DIN 471 Metric Spiral External/Shaft Heavy Duty Multi turn | Carbon Steel SAE 1070-1090 | Oil | Quote |
| DCR-170SU | DIN 471 Metric Spiral External/Shaft Heavy Duty Multi turn | 316 Stainless | None/Self Finish | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
DCR retaining rings are external heavy-duty DIN spiral rings and are part of Rotor Clip’s spiral retaining ring family. These two-turn rings provide secure external axial retention for applications with high thrust loads and fit into grooves established by DIN specifications.
