CRS-12
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial

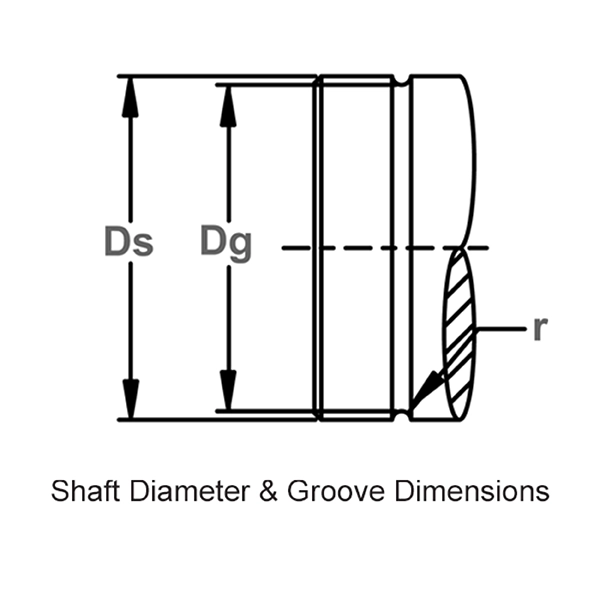

- Shaft Diameter Ds 0.472 inches
- Ds mm 12.000 mm
- Groove Diameter Dg 10.950 - 11.050 - mm

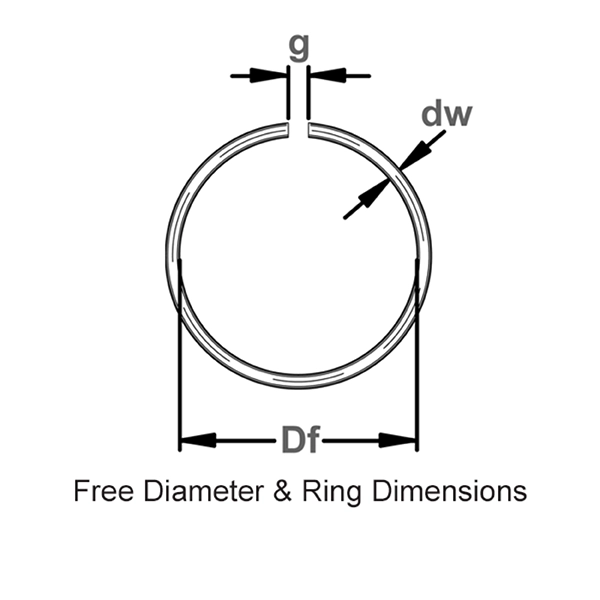

- Free Diameter Df 10.400 - 10.800 - mm
- Free Gap G 3.000 mm
- Wire Dia. dw 1.000 mm
- Weight Per 1000 Pcs. 0.200 kg
- Groove Radius R 0.600 mm
- Interchange Din DIN 7993 Type A 12x1.0
- Interchange Seeger-Orbis RW 12
Performance Data
- R.P.M. Limits Standard Material RPM 24,000.000
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel AISI 302
- Stainless Steel AISI 316
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
CRS retaining rings are external metric round wire snap rings and are part of Rotor Clip’s constant section retaining ring family. Once installed in the groove of a shaft, the protruding shoulder of the ring effectively holds an assembly in place for external axial retention.
