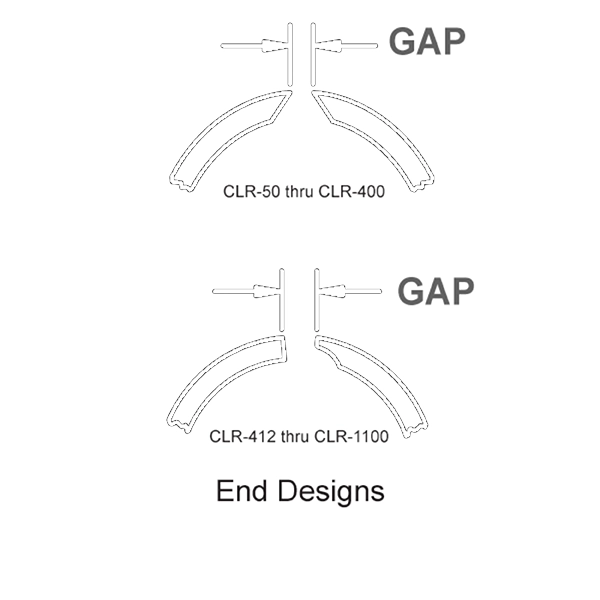

CLR-56
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial

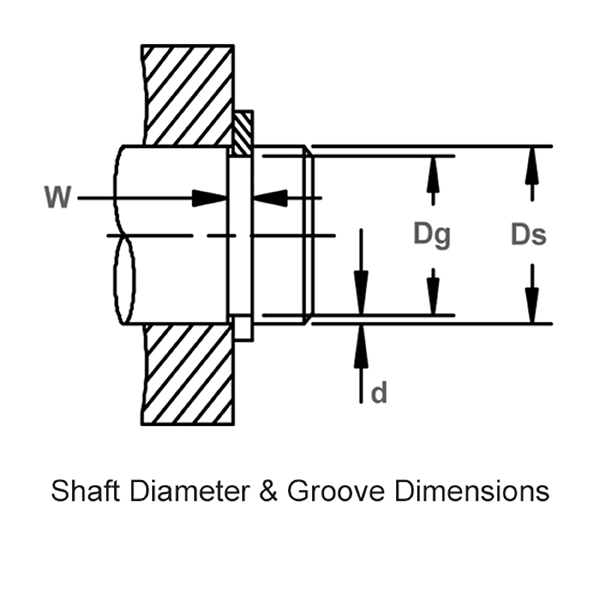

- Shaft Diameter Ds 0.562 inches
- Groove Diameter Dg 0.528 - 0.532 - inches
- Groove Width W 0.043 - 0.049 - inches

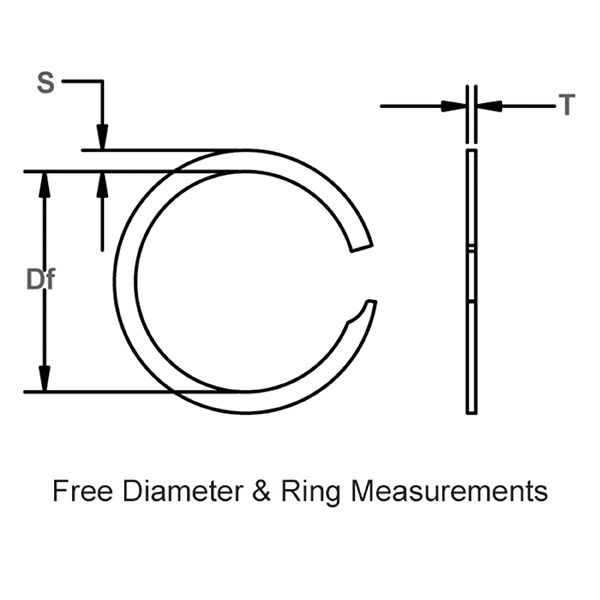

- Free Diameter Df 0.511 - 0.524 - inches
- Section S 0.051 - 0.059 - inches
- Thickness T 0.035 - 0.039 - inches
- Interchange Mil Or Aero
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 2,613 lbs.
- Thrust Load Groove Safety Factor Of 2 Pg 596 lbs.
- R.P.M. Limits Standard Material RPM 32,410.000
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
CLR retaining rings are external heavy-duty single-turn spiral rings and are part of Rotor Clip’s spiral retaining ring family. These rings are designed for shaft applications involving high thrust loads.
