CLM-36
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial

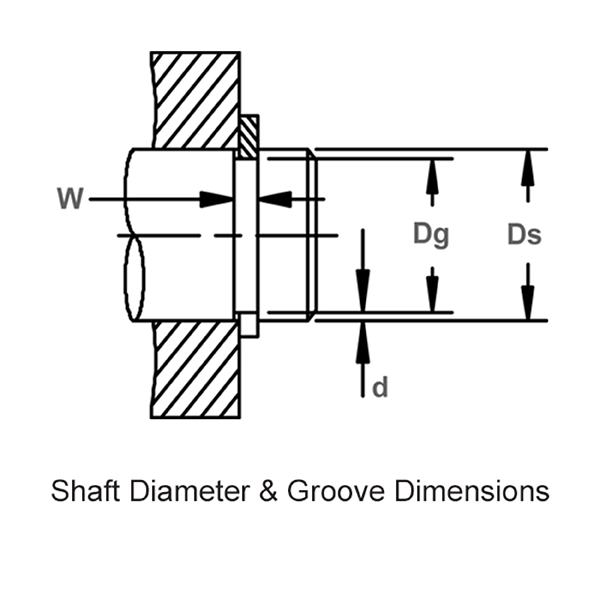

- Shaft Diameter Ds 36.000 mm
- Groove Diameter Dg 34.780 - 34.980 - mm
- Groove Width W 0.790 - 0.870 - mm

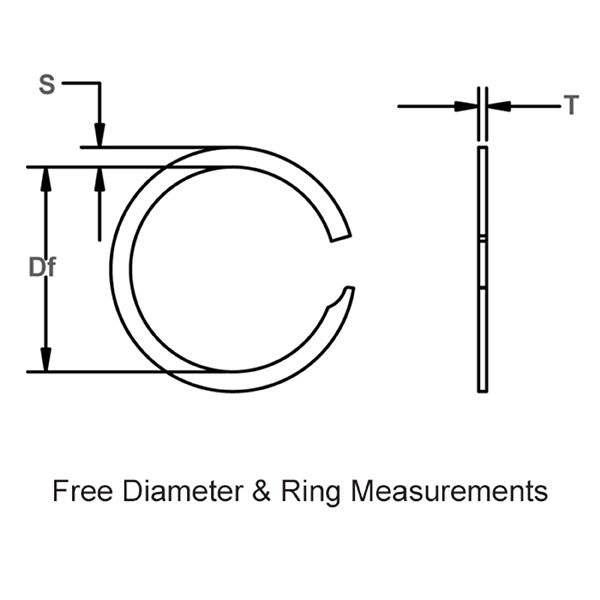

- Free Diameter Df 34.160 - 34.540 - mm
- Section S 2.100 - 2.300 - mm
- Thickness T 0.600 - 0.700 - mm
- Interchange Mil Or Aero
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 20.960 kN
- Thrust Load Groove Safety Factor Of 2 Pg 9.830 kN
- R.P.M. Limits Standard Material RPM 6,641.000
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
CLM retaining rings are external light-duty metric single-turn spiral rings and are part of Rotor Clip’s spiral retaining ring family. These rings provide external axial retention for light-duty metric applications.
