CG-62
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial
- Shaft Diameter Ds 0.625 inches
- Groove Diameter Dg 0.585 - 0.591 - inches
- Groove Width W 0.039 - 0.042 - inches
- Groove Depth D 0.019 inches

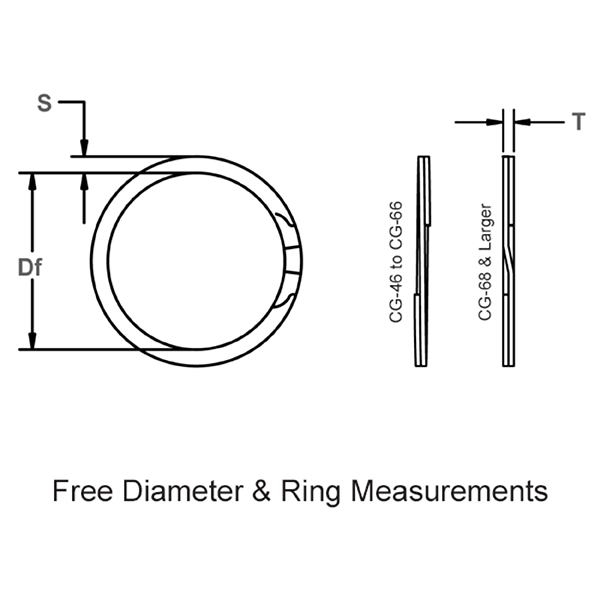

- Free Diameter Df 0.570 - 0.583 - inches
- Section S 0.050 - 0.058 - inches
- Thickness T 0.033 - 0.037 - inches
- Interchange Mil Or Aero M274262 105
Performance Data
- Thrust Load Ring Safety Factor Of 3 Pr 3,160 lbs.
- Thrust Load Groove Safety Factor Of 2 Pg 840 lbs.
- R.P.M. Limits Standard Material RPM 14,730.000
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| CG-62SJ | Spiral External/Shaft Heavy Duty | 302 Stainless | None/Self Finish | Quote |
| CG-62SJ SPA ND MP3 | Spiral External/Shaft Heavy Duty AS3216-105 | 302 Stainless | NADCAP Certified Finishing Process Passivation | Quote |
| CG-62ST OIL | Spiral External/Shaft Heavy Duty | Carbon Steel SAE 1070-1090 | Oil | Quote |
| CG-62SU | Spiral External/Shaft Heavy Duty | 316 Stainless | None/Self Finish | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Special Material Grades
- Stainless Steel AISI 302
- Stainless Steel AISI 316
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
CG retaining rings are external heavy-duty spiral rings and are part of Rotor Clip’s spiral retaining ring family. These two-turn rings provide 360° groove contact and provide secure external axial retention for applications with high thrust loads.
