BHO-90
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Housing
- Axial or Radial Axial
- Housing Dia. Dh 0.901 inches
- Dh mm 22.900 mm
- Groove Diameter Dg 0.956 - 0.962 - inches
- Groove Width W 0.062 - 0.065 - inches
- Groove Depth D 0.029 inches

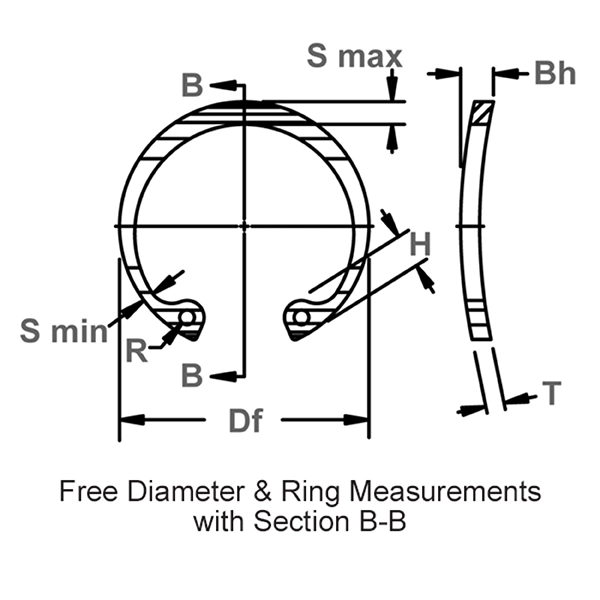

- Free Diameter Df 0.985 - 1.015 - inches
- Thickness T *** 0.040 - 0.044 - inches
- Lug Height H 0.150 - 0.160 - inches
- Maximum Section S Max 0.082 - 0.092 - inches
- Minimum Section S Min 0.042 - 0.052 - inches
- Hole Diameter R 0.060 - 0.072 - inches
- Bow Height Bh 0.060 - 0.081 - inches
- Weight Per 1000 Pcs. 2.200 lbs.
- Edge Margin Y Min. inches

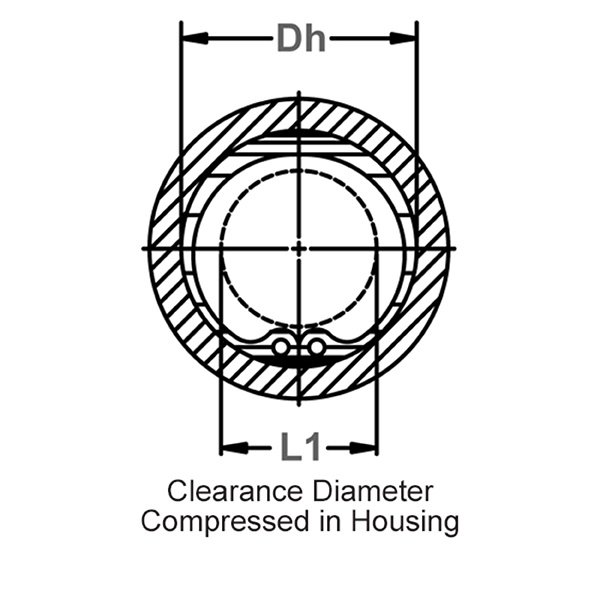

- Clearance Dia. Compressed In Housing L1 0.565 inches
- Clearance Dia. Released In Groove L2 0.620 inches
- Gap Width Ring In Groove G inches

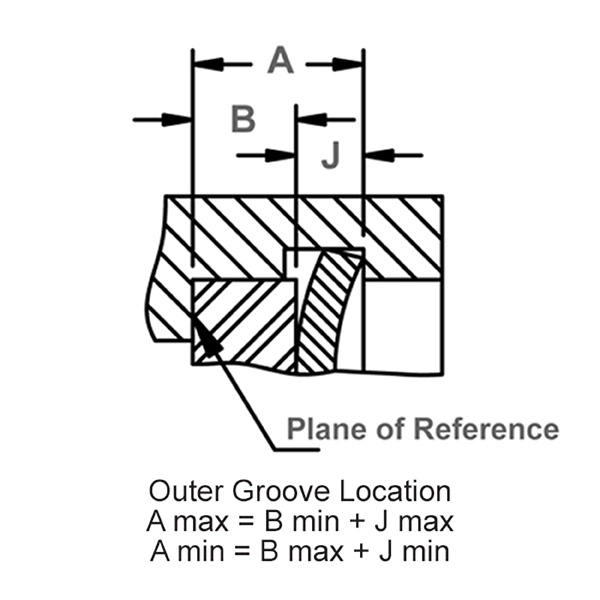

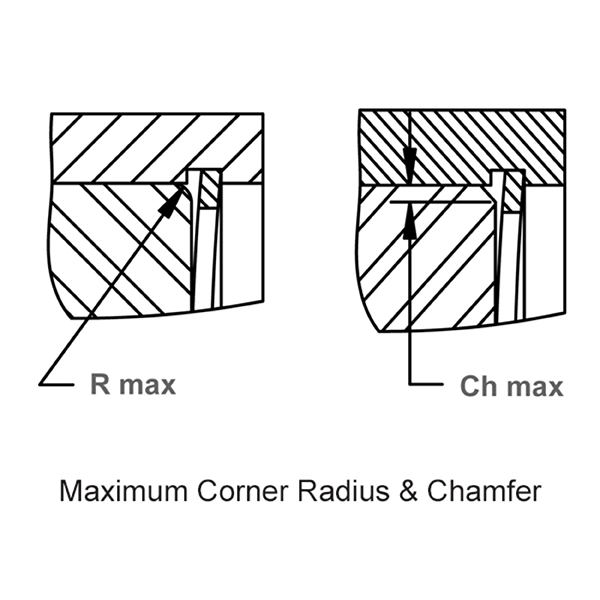

- Outer Groove Wall To Face Of Retained Part J Max 0.049 inches
- Outer Groove Wall To Face Of Retained Part J Min 0.060 inches
- Hardness ST 66.000 - 71.000 - HR30N
- Hardness SS 63.000 - 69.500 - HR30N
- Hardness BC 54.000 - 62.000 - HR30N
- Interchange Waldes Truarc N5001 90
- Interchange IRR 3001 X90
- Interchange Anderton N1301 0900
- Interchange Mil Or Aero MS16629E 90
- Interchange Din
Performance Data
- Thrust Ld. (lbs.) Ring Safety Factor Of 4 Pr 5,430 lbs.
- Thrust Ld. (lbs.) Groove Safety Factor Of 2 Pg 2,200 lbs.
- Resilient Take-Up Of Tolerances A & B 0.011 inches
- Force Needed To Flatten Rings 65.000 lbs.
Tool Data
- Standard Pliers (Straight) RPL-100
- 45 Standard Pliers RPL-104
- 90 Standard Pliers RPL-109
- Convertible Pliers RP-320
- 45 Convertible Pliers RP-324
- 90 Convertible Pliers RP-329
- Heavy Duty Pliers (Straight) RPN-J1
- 90 Heavy Duty Pliers RPN-J11
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| BHO-90SS | Bowed Internal/Housing | PH 15-7 Stainless Steel | None/Self Finish | Quote |
| BHO-90SS MPS | Bowed Internal/Housing MS16629-4090 | PH 15-7 Stainless Steel | Military Passivation | Quote |
| BHO-90ST PD | Bowed Internal/Housing | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| BHO-90ST MCD | Bowed Internal/Housing MS16629-1090 | Carbon Steel SAE 1070-1090 | Military CAD Plating | Quote |
| BHO-90ST MPD | Bowed Internal/Housing MS16629-3090 | Carbon Steel SAE 1070-1090 | Military Phosphate and Oil | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description
BHO retaining rings are axially assembled internal circlips with a bowed profile and are part of Rotor Clip’s tapered section retaining ring family. Installed into a groove in a housing/bore, the bowed design applies a preload to compensate for accumulated tolerances and maintain internal axial retention over the specified range.
