Radial Retaining Rings (Radial Circlips)
Radial retaining rings, also known as radial circlips, are external retaining rings installed from the side of a shaft into a machined groove when axial access is limited. Common types of radial retaining rings include E-Rings, C-Clips, and Poodle Rings, each designed for side installation onto a shaft. Compared to axial tapered section retaining rings, radial rings are typically used in applications with lower thrust loads where side installation is the preferred assembly method.
Rotor Clip manufactures a broad range of radial retaining rings and circlips in various styles, materials, and finishes, including select ANSI, DIN, and JIS standard parts. All parts are manufactured in-house and can be customized to meet specific design requirements.
Benefits of Rotor Clip Radial Retaining Rings
Radial retaining rings are designed for applications where limited axial access, compact assembly designs, and efficient installation are key design considerations.
Explore some of the key benefits of Rotor Clip radial rings below.
Simplified Installation and Removal
Open-ended design allows installation from the side of the shaft without lug holes, simplifying assembly with applicators, dispensers, or automated equipment.
Supports High-Volume Production
Radial retaining rings can be supplied in configurations that support manual assembly, automated dispensing systems, and high-volume manufacturing processes.
Broad Material and Finish Selection
Available in a wide range of materials and finishes, including carbon steel, stainless steel, beryllium copper, and other alloys to meet different operating conditions.
Types of Radial Retaining Rings
The most common radial retaining ring styles include E Rings, C Clips, and Poodle Rings. Each style offers unique design characteristics, advantages, and installation methods suited for different applications. Rotor Clip also offers specialized radial ring designs, including reinforced, bowed, locking, and interlocking styles that, depending on the design, can accommodate higher thrust loads, increased RPM capability, or end-play compensation.
Compare the radial retaining ring designs below to determine the right ring for your needs.
| Style | Design Characteristics | Key Benefits | Application Examples | Installation Method |
|---|---|---|---|---|
E-Rings / E-Clips |
Three-pronged design shaped like the letter “E” | Compact design for assemblies with limited axial access | Small electric motors, power tools, actuators, appliances | E-Ring applicator, pliers, or automated assembly equipment |
C-Rings / C-Clips |
Open-ended design shaped like the letter “C” | Shallow radial width for low-clearance applications | Gearboxes, transmission assemblies, conveyor rollers, industrial pumps | Pliers, applicators, or automated assembly equipment |
Poodle Rings |
Wide ears resembling those of a poodle dog | Wide ears provide additional retention surface against the retained part | Seat belt mechanisms, foot pedal assemblies, latch mechanisms | Pliers or applicator engaging the ears |
Not sure which ring fits your application? Contact our team to discuss your requirements.
Radial Retaining Ring Installation
Unlike axial tapered section retaining rings, radial retaining rings are installed from the side of the shaft rather than over the shaft end. Their open-ended design eliminates the need for lugs and lug holes and allows for installation using applicators, dispensers, or other assembly tooling. During installation, the ring seats into the machined groove to provide a retaining shoulder for the assembly. For automated and high-volume assembly, certain radial rings can be supplied in stacked configurations for use with automated dispensing and installation equipment.
Radial Retaining Ring Materials & Finishes
Rotor Clip maintains one of the largest raw material inventories in the industry, offering a wide selection of materials and finishes for radial retaining rings to meet specific application requirements. Material selection can help address factors such as strength, corrosion resistance, temperature capability, and environmental conditions. Explore some of the available options below.
Radial Ring Materials
Carbon Spring Steel (ST)
High-carbon steel alloy providing good tensile strength, hardness, and fatigue resistance.
15-7 Stainless Steel (SS)
Precipitation-hardening stainless steel that offers good strength, fatigue resistance, and corrosion resistance.
Beryllium Copper (BC)
Copper alloy providing high strength, excellent electrical conductivity, and resistance to wear, corrosion, and fatigue.
Phosphor Bronze (PB)
Copper alloy with tin and phosphorus, known for its high strength, corrosion resistance, and excellent fatigue resistance.
Radial Ring Finishes
Phosphate and Oil (PD)
Rotor Clip’s standard finish for most carbon steel parts, providing corrosion protection through a zinc phosphate coating and oil treatment.
Trivalent Chrome over Zinc (Z3X)
Zinc finish with a trivalent chrome coating providing corrosion protection.
Zinc Dichromate with Sealer (ZDL)
Zinc finish with a sealer for increased salt spray protection.
*Additional material and finish options are available. Contact our team for application-specific requirements.
In this drone application, the Rotor Clip E-Ring helps retain the motor shaft within the assembly during high-speed operation.
Radial Retaining Ring Applications
Radial retaining rings (circlips) including E-Rings, C-Rings or C-Clips, and Poodle Rings, are commonly used in applications where axial access is limited and the retaining ring must be installed or retained from the side of the shaft, including motors, transmission assemblies, power tools, and appliances.

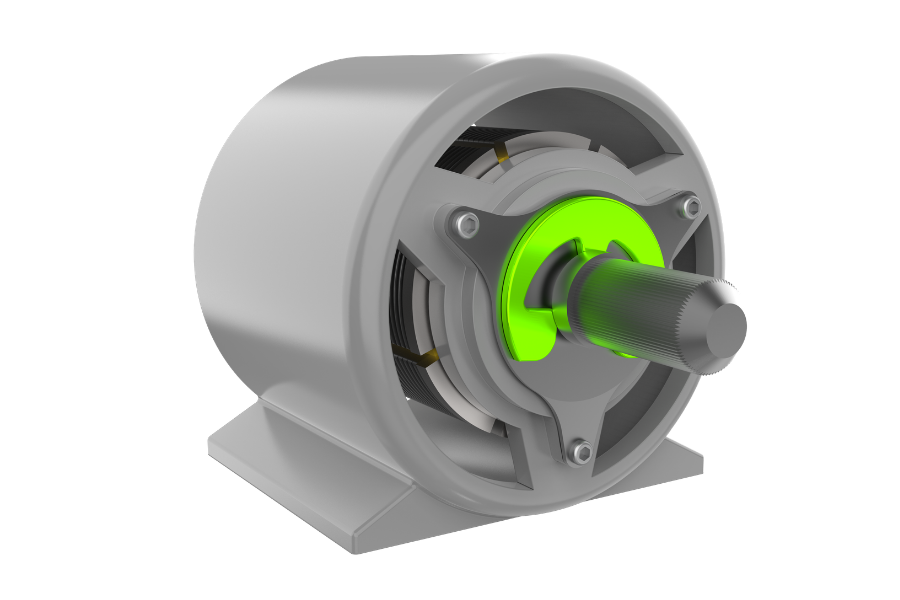

EV Motor with Balanced E-Ring

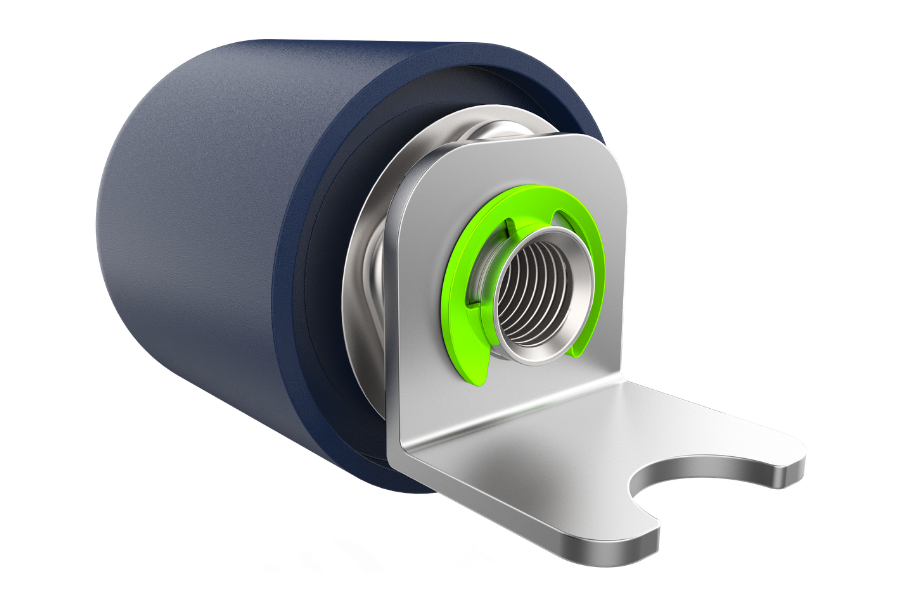

Conveyor Roller with E-Ring

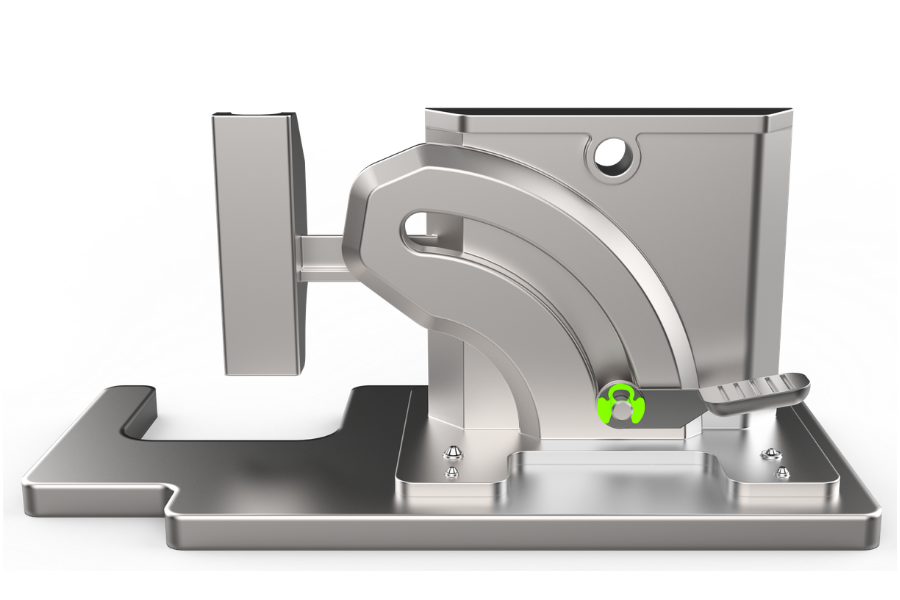

Foot Pedal with Poodle Ring

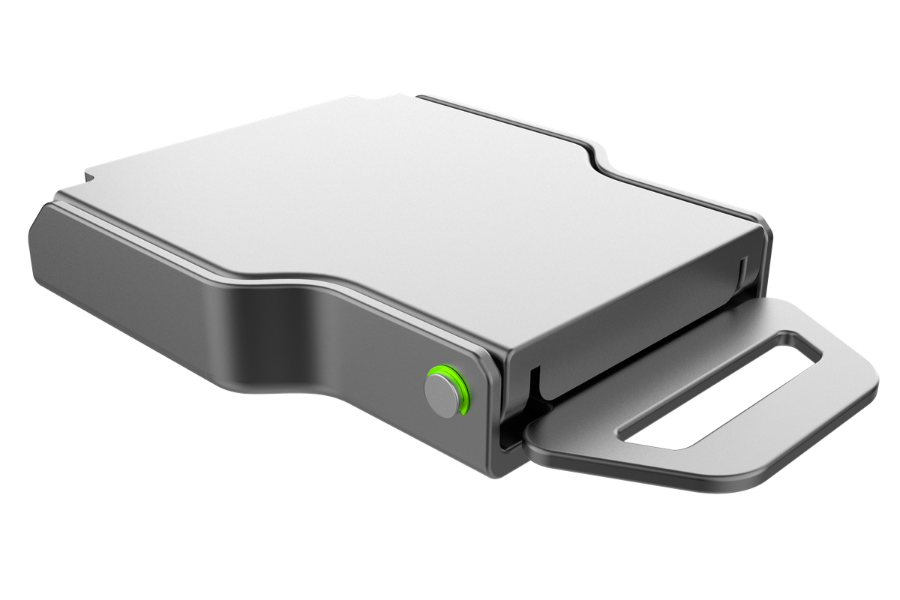

Seat Belt Holder with C-Clip
Guiding You to the Right Retaining Ring Solution
At Rotor Clip, our engineering team helps customers select the right retaining ring solution for their application. From groove design and load requirements to selecting the appropriate size, material, and finish, we provide application support throughout the design process.
Radial Retaining Ring (Circlip) FAQs
A radial retaining ring, also called a radial circlip, is installed from the side of a shaft rather than axially. The ring snaps into a machined groove to retain components on the shaft, and can be installed using applicators and dispensers for manual, semi-automated, and automated assembly. Common radial retaining ring styles include E-Rings, C-Clips, and Poodle Rings.
An E-Ring, or E-Clip, is a radial retaining ring shaped like the letter “E.” It installs into a shaft groove from the side and provides a compact, secure retention method. E-Rings are widely used in motors, appliances, power tools, automotive assemblies, and industrial equipment.
A C-Clip, or C-Ring , is a C-shaped radial retaining ring with a single opening that snaps into a groove around a shaft. Its shallow radial width makes it well suited for low-clearance applications where radial installation is preferred.
A Poodle ring (PO ring) is a radial retaining ring with wide ears that resemble those of a poodle dog. The wide ears provide additional retention surface against the retained part.
Choose a radial retaining ring when axial access is limited or the ring must be installed from the side of the shaft. Radial rings are commonly selected for applications where space constraints, assembly requirements, or installation methods make axial retaining rings impractical. They typically accommodate lower thrust loads than axial retaining rings and are often used when thrust loading is a secondary consideration.
A circlip is a general term for a retaining ring that fits into a groove to hold components in place. A radial retaining ring, also called radial circlip, is a type of external retaining ring designed to be installed from the side of a shaft rather than axially. E-Rings, C-Clips, and Poodle Rings are all examples of radial retaining rings.
If an E-Ring does not meet the RPM or thrust load requirements of an application, a reinforced RE retaining ring may be a suitable alternative. RE rings are designed to accommodate higher RPMs and increased thrust loads while fitting into the same grooves as standard E-Rings, allowing the ring style to be changed without modifying the existing groov design. Overall assembly clearance and application requirements should still be verified.
Yes. Rotor Clip offers standard radial retaining ring styles as well as specialized designs such as reinforced, locking, interlocking, and bowed rings. These designs are available for applications requiring increased RPM capability, higher thrust loads, end-play compensation, and other specific retention requirements. For assistance with a custom design, contact our team.
