HW-11
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial

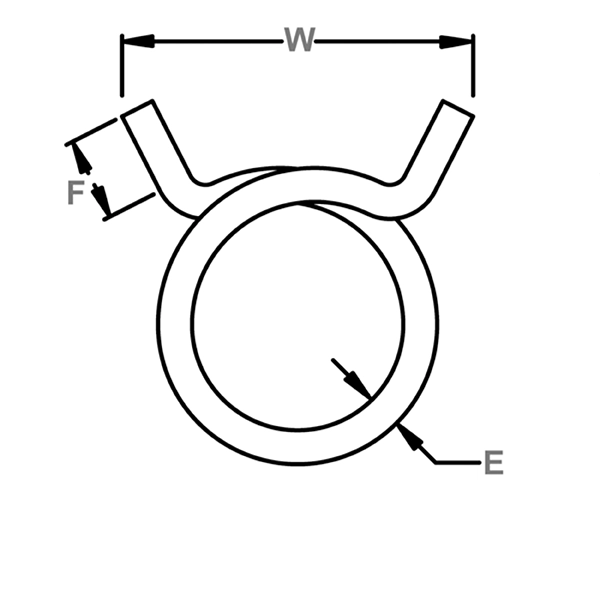

- Nom. Wire Dia. E 0.087 inches
- Length Of Tangs F 0.219 - 0.250 - inches
- Width Over Tangs W Max. 1.056 inches

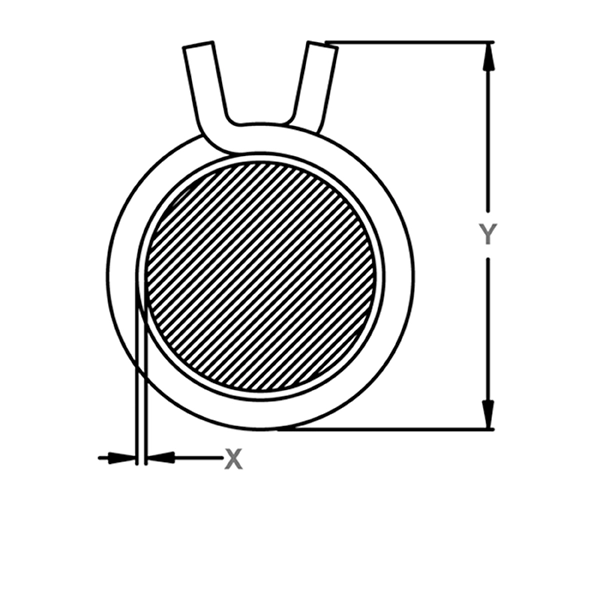

- Overall Height Y (Ref. Only) 1.380 inches
- G Clearance At Overlap Max. 0.025 inches
- Width Over Tangs Installed On Dia. A Z 0.425 - 0.445 - inches
- Approx. Case Weight (lbs.) 33 lbs.
- A Max. Dia. 0.703 inches
- B Nom. Dia. 0.688 inches
- C Min. Dia. 0.671 inches
- No-Go Gage Dia. D 0.635 inches
Performance Data
- Clamping Range 0.671 - 0.703 - inches
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| HW-11ST PD | Slim Wire Self Compensating | Carbon Steel SAE 1070-1090 | Phosphate & Oil | Quote |
| HW-11ST R | Slim Wire Self Compensating | Carbon Steel SAE 1070-1090 | Red Dye | Quote |
| HW-11ST ZD | Slim Wire Self Compensating | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
| HW-11ST ZF | Slim Wire Self Compensating | Carbon Steel SAE 1070-1090 | Zinc Flash | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel DIN 1.4122
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- ZFF - Zinc Flash, Carbon Steel
- G - Green, Carbon Steel
- R - Red, Carbon Steel
- CS - Magni 565 (Silver), Carbon Steel
- CK - Magni 565 (Black), Carbon Steel
- FS - Magni 511 (Silver), Carbon Steel
- FK - Magni 511 (Black), Carbon Steel
- ZD - Zinc Dichromate, Carbon Steel
- PAG - Phosphate with Green Paint, Carbon Steel
- PAR - Phosphate with Red Paint, Carbon Steel
- PAD - Phosphate with Olive Drab, Carbon Steel
Documentation
Description
HW hose clamps are slim wire, self-compensating hose clamps that serve as a slimmer version of the single wire hose clamp. The slim wire concentrates the clamping force in one specific area around the hose, making it effective for applications where space is limited.
