DW-19.5
Looking for a specific material or finish? View complete part numbers and request a quote below.
Specifications
Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial
- Nom. Wire Dia. E 0.110 inches
- F1 Max. 0.660 inches
- F2 Min. 0.450 inches

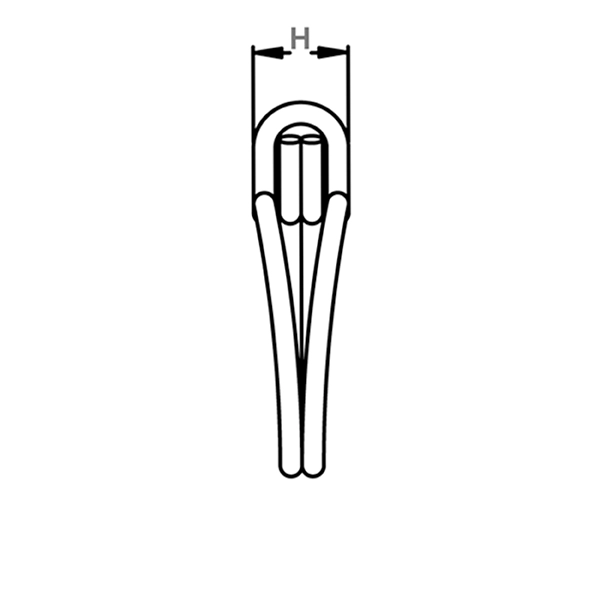

- H Over-All Width 0.480 inches
- Approx. Case Weight (lbs.) 33 lbs.
- A Max. Dia. 1.260 inches
- B Nom. Dia. 1.230 inches
- C Min. Dia. 1.190 inches

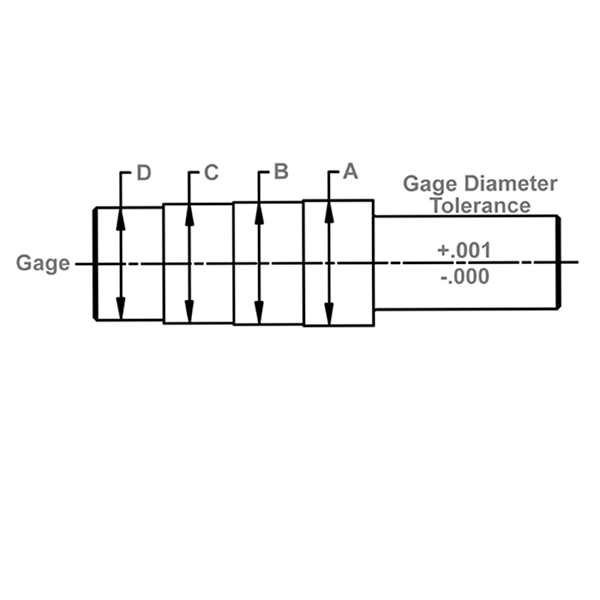

- No-Go Gage Dia. D 1.110 inches
Performance Data
- Clamping Range 1.190 - 1.260 - inches
Product SKUs
Product SKUs listed may not include all available options. If you don't see what you're looking for, or need help selecting the right part, please contact us.
| Item SKU | Style | Material | Finish | Quote |
|---|---|---|---|---|
| DW-19.5ST ZD | Double Wire Self Compensating | Carbon Steel SAE 1070-1090 | Zinc Dichromate | Quote |
Materials and Finishes
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel DIN 1.4122
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- ZFF - Zinc Flash, Carbon Steel
- G - Green, Carbon Steel
- R - Red, Carbon Steel
- CS - Magni 565 (Silver), Carbon Steel
- CK - Magni 565 (Black), Carbon Steel
- FS - Magni 511 (Silver), Carbon Steel
- FK - Magni 511 (Black), Carbon Steel
- ZD - Zinc Dichromate, Carbon Steel
- PAG - Phosphate with Green Paint, Carbon Steel
- PAR - Phosphate with Red Paint, Carbon Steel
- PAD - Phosphate with Olive Drab, Carbon Steel
Documentation
Description
DW hose clamps are double wire, self-compensating hose clamps used where a lower clamping force than offered by single wire clamps is sufficient and aesthetics are important. The double wound wire spreads out the clamping force around the hose and provides a cost-effective alternative to single wire clamps.
