Part Data
- Housing or Shaft Shaft
- Axial or Radial Radial
- Shaft Diameter Ds 0.375 inches
- Ds mm 9.500 mm
- Groove Diameter Dg 0.325 - 0.337 - inches
- Groove Width W 0.046 - 0.052 - inches
- Groove Depth D 0.022 inches
- Free Diameter Df 0.308 - 0.316 - inches
- Thickness T *** 0.040 - 0.044 - inches
- Large Sect. S 0.081 - 0.081 - inches
- Outside Diameter G 0.680 inches
- Clearance Dia. Installed In Groove L2 0.720 inches
- Weight Per 1000 Pcs. 1.920 lbs.
- Edge Margin Y Min. 0.044 inches
- Hardness ST 47.000 - 53.000 - HRC
- Hardness SS 44.000 - 51.000 - HRC
- Hardness BC 34.000 - 43.000 - HRC
- Interchange Waldes Truarc 5304 37
- Interchange IRR
- Interchange Anderton
- Interchange Mil Or Aero
- Interchange Din
Performance Data
- Thrust Load Ring Safety Factor Of 2.5 Pr 1,573.000 lbs.
- Thrust Load Groove Safety Factor Of 2 Pg 300 lbs.
- R.P.M. Limits Standard Material RPM 65,000.000
Tool Data
- Standard Applicator (Flat) A-837
- 45 Applicator A-8374
- 90 Applicator A-8379
- Offset Applicator A-8377
- Heavy Duty Dispenser D-840
- Spring Rail Dispenser SD-840
Materials
- Carbon Steel (SAE 1060-1090)
- Stainless Steel (PH15-7 Mo, PH17-7)
- Beryllium Copper
- Special Material Grades
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
Documentation
Description

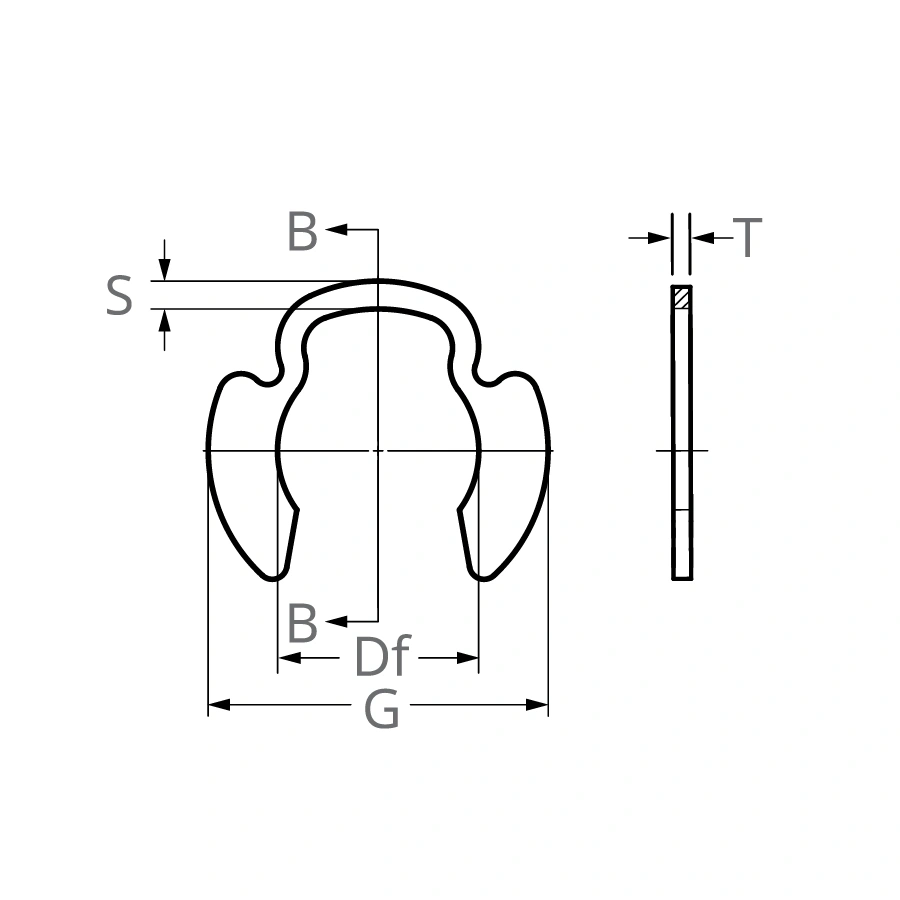

Radially Assembled, External Poodle. The PO ring features wide ears (resembling those of a poodle dog, thus the name) which offer extra retention surface against the retained part. PO rings also come in thinner sizes as a standard series of rings known as POL
